Combustion Apparatus Manufacturer,Supplier and Exporter in India
Product Code : EL-GPA-11622
Product Description

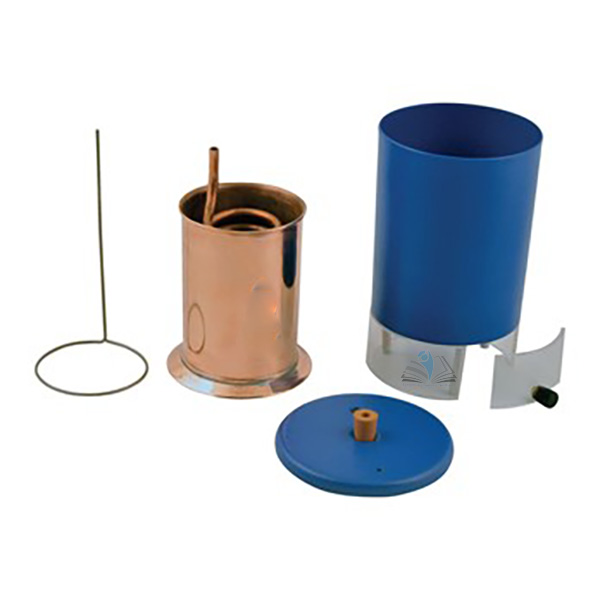

A spiral copper heat exchanger extends upwards through the cylinder, its outlet normally being connected to a condenser using a filter pump to draw the products of combustion through the apparatus.
Combustion Apparatus consisting of a copper cylinder (100mm x 75mm diameter), the bottom of which is in the shape of a shallow re-entrant cone which forms the top of the combustion chamber.
The cylinder is housed in an aluminium outer jacket (122mm x 100mm diameter), with a drop on cover with apertures to pass the outlet of the heat exchanger, the wire stirrer and a bored and split rubber bung, also supplied to accommodate a thermometer.
The outer jacket has 3 legs 37mm long which, when the calorimeter is standing on the base unit, provide the combustion chamber space and the sides of which take the form of a circular Perspex shield with removable door.
Supplied without Thermometer or Condenser Unit
Product Information
Curriculum Link : Gas Preparation
Product Type : Combustion Apparatus
