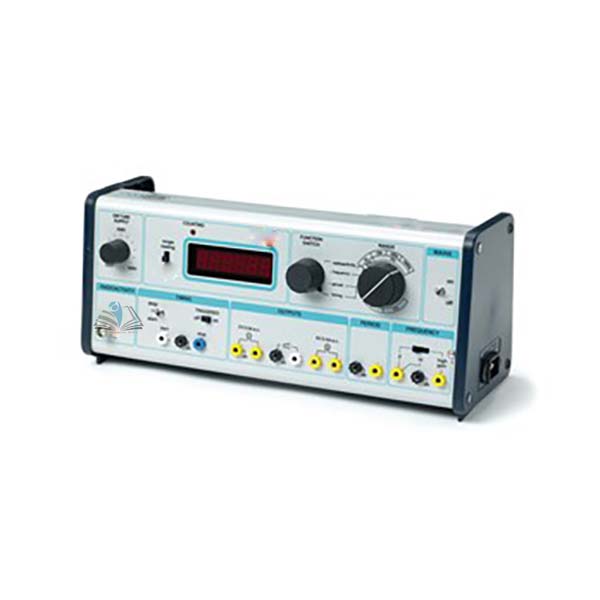

S-Range Digicounter Manufacturer,Supplier and Exporter in India
Product Code : EL-AS-10835
Product Description
A built-in high stability crystal controlled oscillator ensures a typical accuracy of 0.005% on all measuring ranges.
The period measurement and display function enables very low frequencies to be measured rapidly with a high degree of accuracy.
A versatile Digicounter suitable for timing, frequency, period and radioactivity measurement.
It also allows triggered timing of trolley speeds (etc.) to be performed using a single light gate; and by shorting the period input, infinite radioactivity or frequency counts may be obtained.
Radioactivity:
Inputs: E.H.T BNC connector for a G.M. tube. Supply voltage adjustable from 300 to 500V
Counting time: 1, 10, 100 or 1000 seconds and infinity. Can be set to take a single or a continuous series of readings, each being displayed for 3 seconds before the next is taken
Rate: Obtained by dividing the count reading by the counting time
Speaker: Output will feed into a speaker of any impedance
Timing Ranges: 0 to 99.9999 x 0.1ms; 0 to 999.999 x 1ms; 0 to 9999.99 x 0.01s (10ms); 0 to 99999.9 x 0.1s (100ms)
Accuracy: Better than 0.005% ±1 count
Gating: (1) By manual front panel stop/start switch;(2) By make or break input sockets; (3) By triggering timing stop/start inputs. Output 2V and 6V a.c. at 0.5A for light gate or similar amps
Related products include:
Radioactive Sources
Light Gate
Geiger-Muller Tube & Geiger-Muller Tube Holder
Radioactive Source Handling Tool
Frequency Inputs:
High frequency, capacitively coupled 30Hz to 3MHz minimum (5MHz typical);
High gain, input voltage required 0.8mV r.m.s. from 30Hz to 20kHz; recommended microphone - high impedance dynamic type
Low frequency, d.c. to 3MHz minimum (5MHz typical). Will operate with T.T.L inputs, light gates etc.
Input impedance: 20O for inputs (1) and (2); 100kO for input (3)
Accuracy: Better than 0.005% -+ 1 count
Period:
Timing intervals: 0.1, 1, 10 and 100ms
This device is compliant with certificates available on request.
