S-Range Scaler-Timer Manufacturer,Supplier and Exporter in India
Product Code : EL-AS-10808
Product Description

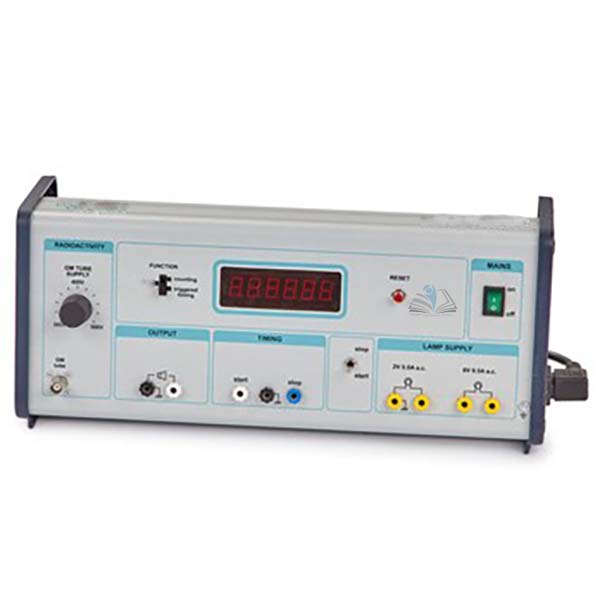

A general purpose scaler-timer suitable for radioactivity counting utilising Geiger-Muller tubes and as a general purpose millisecond digital timing device with manual or electronic triggering.
The bright L.E.D. has six digits, 24mm high, making it suitable for individual use or for class demonstrations.
In the radioactivity mode, the display features 'most significant figure' blanking.
In the timing mode, the display reads in seconds, i.e. from 0 up to 999.999s, and increments in ms.
This provides a clean, unambiguous display.
In the radioactivity mode there is an adjustable 300 to 500V E.H.T. supply for G.M. tubes.
Loudspeaker sockets are also provided for use when an audible indication of count rate is required.
Timing can be actuated manually or by light operated or mechanical switches and also incorporates triggered timing.
Supplies of 2V and 6V a.c. at 0.5A are provided via front panel sockets for optical switch light sources, etc.
Related products include:
Radioactive Sources
Geiger-Muller Tube & Geiger-Muller Tube Holder
Radioactive Source Handling Tool
Further Information
|
Curriculum Link |
Atomic Physics
& Radioactivity |
|
Dimensions |
(W)380mm x
(D)140mm x (H)165mm |
|
Display |
Six-digit 24mm
bright L.E.D. |
|
Mains Supply |
100-120V or
220-240V
50-60Hz |
|
Power
Consumption |
8W |
|
Product Type |
Scaler-Timer |
|
Radioactivity
Input |
GM tube via BNC
socket with integral 300-500V supply |
|
Reset |
Push Button |
|
Timing Inputs |
Manual
Light Gate
Mechanical or
Triggered
Start/Stop |
|
Timing
Oscillator |
1000Hz (1ms
period) ±0.5%
typically ±0.2% |
