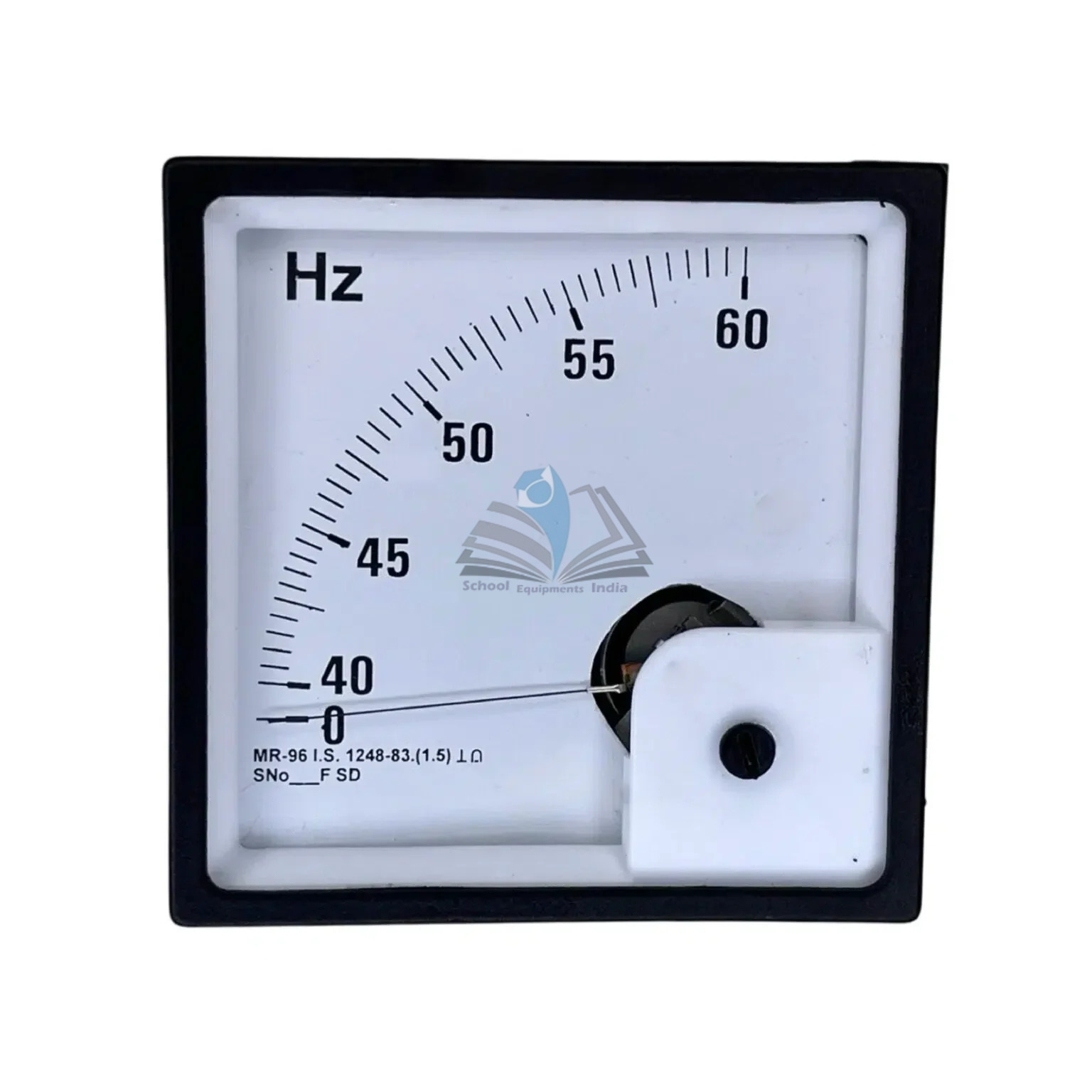

Analog Frequency Meter Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12307

The Analog Frequency Meter is an electrical measuring instrument used for indicating the frequency of an alternating-current circuit in hertz. It is suitable for school physics laboratories, electrical training rooms, STEM educators, and supervised student demonstrations where learners need to understand AC frequency measurement using an analog display.

Product Description

The Analog Frequency Meter by School Equipments is intended for practical demonstrations in electricity, electromagnetism, AC circuits, and measurement techniques. It helps students identify frequency as a measurable electrical quantity and understand why AC systems are described in hertz.

This apparatus is useful for lessons involving alternating current, electrical instruments, power supply outputs, waveform frequency, and meter reading. It fits naturally within physics laboratory equipment, electricity and electromagnetism apparatus, laboratory power supplies, STEM lab kits, and the wider School Equipments product range.

Key Features

• Designed for demonstrating AC frequency measurement in school physics laboratories.
• Analog indication helps students practise direct meter reading and scale interpretation.
• Useful for teaching frequency, hertz, alternating current, and electrical measurement.
• Supports classroom demonstrations with suitable AC sources and power supply equipment.
• Applicable for physics labs, electrical training benches, STEM activities, and teacher-led practicals.
• Simple visual format supports concept explanation without relying only on digital readouts.
• Exact range, accuracy class, input voltage, mounting type, dimensions, and mechanism

What's Included in the Kit

• Analog Frequency Meter unit
• Connection terminals or sockets
• Test leads or connecting wires
• Mounting or stand arrangement
• Instruction sheet or experiment guide

Applications / Uses

• Measuring or demonstrating AC frequency in hertz.
• Teaching the meaning of frequency in alternating-current circuits.
• Showing students how to read an analog electrical scale.
• Supporting experiments with suitable AC power supplies and circuit setups.
• Explaining electrical measurement instruments in physics practicals.
• Using in school electrical laboratories, STEM rooms, and training demonstrations.

How to Use the Analog Frequency Meter

1. Place the Analog Frequency Meter on a stable laboratory bench or panel setup.
2. Check the confirmed input rating before connecting the meter.
3. Connect the meter only to the correct AC source or circuit as instructed by the teacher.
4. Switch on the circuit and allow the meter indication to stabilise.
5. Read the frequency value on the analog scale in hertz.
6. Record the observed value and compare it with the expected frequency of the source.
7. Switch off the supply before removing or changing any connections.

Safety note: Use this meter only under trained supervision. Do not connect it to an unknown voltage, DC circuit, mains supply, or high-energy source unless the confirmed rating and laboratory procedure permit it.

Care & Maintenance

• Store the meter in a dry, dust-free laboratory cabinet after use.
• Do not exceed the confirmed voltage or frequency rating.
• Keep the display window, scale, terminals, and casing clean and undamaged.
• Inspect leads, sockets, and connections before each classroom demonstration.

Why Choose School Equipments

School Equipments manufactures and exports educational science products for schools, laboratories, colleges, and training institutions. The brand supplies physics apparatus, laboratory instruments, STEM models, science kits, didactic models, and classroom teaching aids. The Analog Frequency Meter is positioned for practical electrical measurement demonstrations where supervised handling, clear observation, and concept accuracy are important. Buyers can source related electrical and physics products through the verified School Equipments catalogue.

Frequently Asked Questions

What is an Analog Frequency Meter used for?

An Analog Frequency Meter is used to indicate the frequency of an alternating-current circuit in hertz. It is useful for AC circuit demonstrations and electrical measurement lessons.

Can this meter be used in school physics laboratories?

Yes, it is suitable for supervised school physics practicals and teacher-led demonstrations when used within the confirmed electrical rating.

What does the Analog Frequency Meter measure?

It measures frequency, normally expressed in hertz. The exact measurement range must be confirmed from the final product specification.

Is this a digital or analog instrument?

This product is an analog instrument. It uses an analog display format, while the exact internal mechanism and scale type should be confirmed before publishing.

Does the meter include connecting leads?

The supplied data does not confirm whether connecting leads are included. Confirm the final kit contents before publishing or ordering.

Can students connect the meter directly to mains supply?

No. Students should not connect the meter directly to mains supply. All electrical connections must be made under trained supervision and only within the confirmed rating of the meter.

For related classroom electrical measurement products, explore the Electricity & Electromagnetism category from School Equipments.

Suggested Image ALT Text: Analog Frequency Meter for school physics AC frequency and electrical measurement experiments.
