Electromagnet ‘U’ shape Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12387

The U-Shaped Electromagnet is a physics laboratory apparatus used for demonstrating electromagnetism, magnetic attraction, magnetic circuits, and the effect of electric current on a soft iron core. It is suitable for schools, colleges, STEM laboratories, physics teachers, and students studying electricity, magnetism, current, coils, and magnetic force.

Product Description

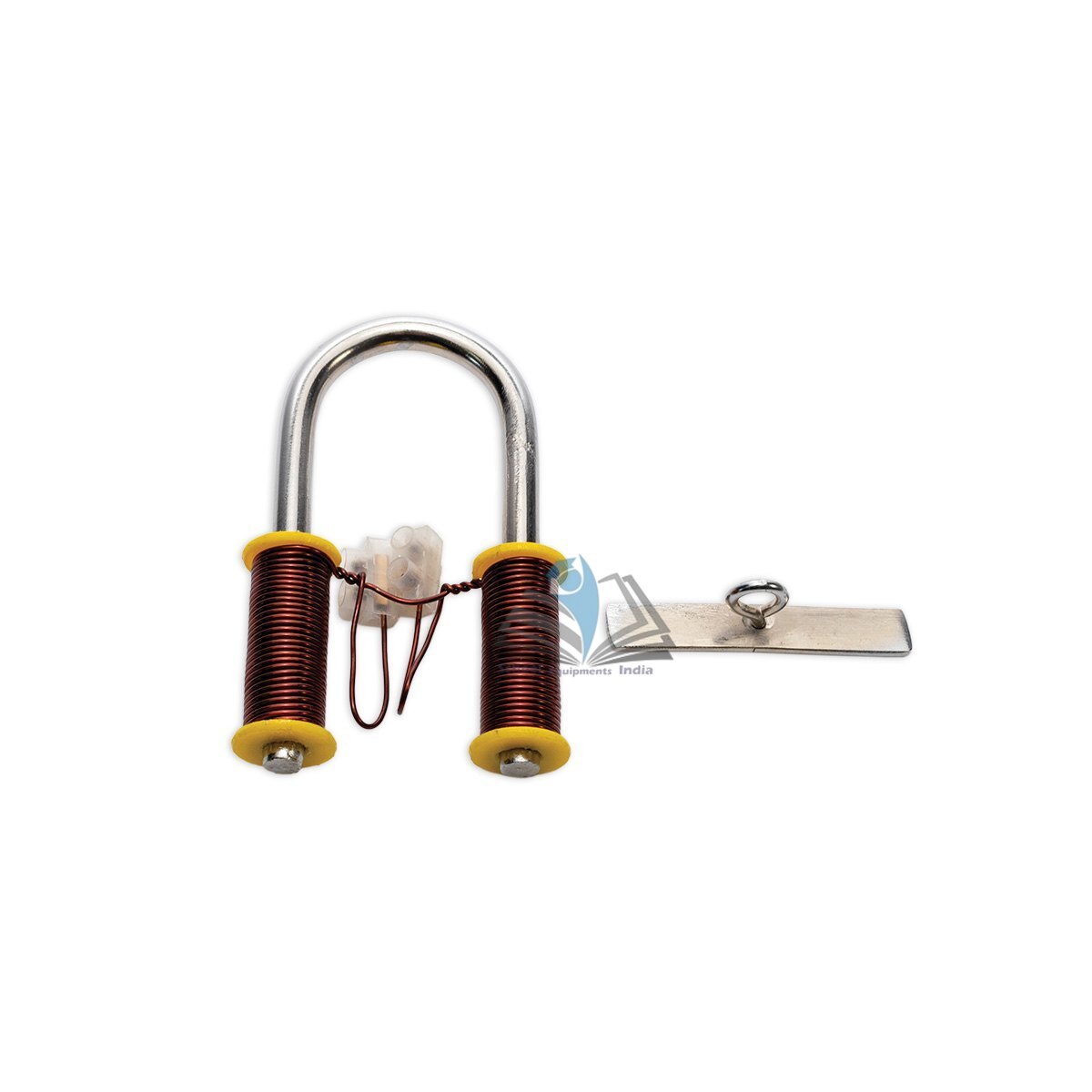

The School Equipments U-Shaped Electromagnet is listed as Electromagnet, product code EL-EE-10882. It comprises a U-shaped soft iron core measuring 100mm x 65mm overall and formed from a 16mm diameter bar. The ends of the core are ground to provide good magnetic contact with the armature.

The windings are made from 0.9mm enamelled copper wire wound on insulation bobbins, connected in series, and provided with 4mm sockets. The apparatus helps students observe how a current-carrying coil magnetises a soft iron core and produces a strong temporary magnetic effect.

Key Features

• U-shaped soft iron core: Provides a clear magnetic circuit for classroom electromagnetism demonstrations.
• 100mm x 65mm overall size: Compact enough for school physics benches while remaining visible for demonstrations.
• 16mm diameter bar construction: Built from a substantial soft iron bar for strong magnetic performance.
• 0.9mm enamelled copper windings: Windings are placed on insulation bobbins and connected in series.
• 4mm sockets: Allows connection with standard laboratory leads and compatible power supplies.
• 5A recommended current: Supports controlled educational experiments when used with a suitable power source.
• 8A maximum current: Gives a defined upper current limit for safer teacher-supervised operation.

Technical Specifications

What's Included in the Kit

• 1 U-Shaped Electromagnet
• U-shaped soft iron core
• Armature
• Insulation bobbins with enamelled copper wire windings
• 4mm socket connections
• Connecting leads or power supply: not included unless specified in the quotation

Applications / Uses

• Demonstrating how electric current produces magnetism in a coil and soft iron core.
• Studying magnetic attraction between the core and armature.
• Teaching temporary magnetism, magnetic circuits, and electromagnetic force.
• Supporting lessons in electricity and electromagnetism equipment.
• Pairing with the Electromagnetics Kit for broader magnetic field investigations.
• Using with a BEK Digital Ammeter to observe current in the circuit.
• Connecting electromagnetism concepts with the Electric Motor 3 - 6V demonstration.

How to Use the Electromagnet ‘U’ Shape

1. Place the U-shaped electromagnet on a stable, dry laboratory bench.
2. Connect the 4mm sockets to a suitable low-voltage DC power supply using compatible leads.
3. Set the supply so the current does not exceed the recommended experimental value.
4. Place the armature across the ground ends of the soft iron core.
5. Switch on the current and observe magnetic attraction between the core and armature.
6. Vary the current under teacher supervision and observe changes in magnetic strength.
7. Switch off the supply before removing leads, changing connections, or handling the apparatus.

Safety note: Do not exceed the maximum current of 8A. Use only under trained supervision, avoid short circuits, and allow the windings to cool if the apparatus becomes warm.

Care & Maintenance

• Keep the core ends and armature clean for good magnetic contact.
• Store the electromagnet in a dry cabinet to reduce corrosion risk.
• Do not operate the apparatus for long periods at high current.
• Inspect sockets, windings, bobbins, and leads before each experiment.

Why Choose School Equipments

School Equipments manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM models for educational institutions. The brand supplies practical teaching apparatus for schools, colleges, laboratories, and procurement projects.

The U-Shaped Electromagnet gives teachers a direct way to demonstrate current-produced magnetism using a visible core, armature, coils, and 4mm connections. Buyers can source it with related electrical accessories, meters, motors, electromagnetism kits, and general school laboratory equipment from School Equipments.

Frequently Asked Questions

What is a U-Shaped Electromagnet used for?

A U-Shaped Electromagnet is used to demonstrate electromagnetism, magnetic attraction, temporary magnetism, and the effect of current through a coil wound around a soft iron core.

What is the size of this electromagnet?

The listed School Equipments model has a U-shaped soft iron core measuring 100mm x 65mm overall. The core is formed from a 16mm diameter bar.

What current is recommended for this apparatus?

The recommended current is 5A, and the maximum current is 8A. Users should operate it only with a suitable low-voltage laboratory power supply.

What are the windings made from?

The windings are made from 0.9mm enamelled copper wire. They are wound on insulation bobbins, connected in series, and provided with 4mm sockets.

Does the apparatus include an armature?

The verified product description refers to an armature and states that the core ends are ground for magnetic contact with it. Confirm packing details before final purchase approval.

Is this suitable for school physics laboratories?

Yes, it is suitable for supervised school and college physics laboratories. It supports practical lessons on electricity, magnetism, current, coils, magnetic circuits, and electromagnets.

For related classroom electrical products, explore the Electricity and Electromagnetism category from School Equipments.

Suggested Image ALT Text: U-Shaped Electromagnet with soft iron core and 4mm sockets for school physics electromagnetism experiments.
