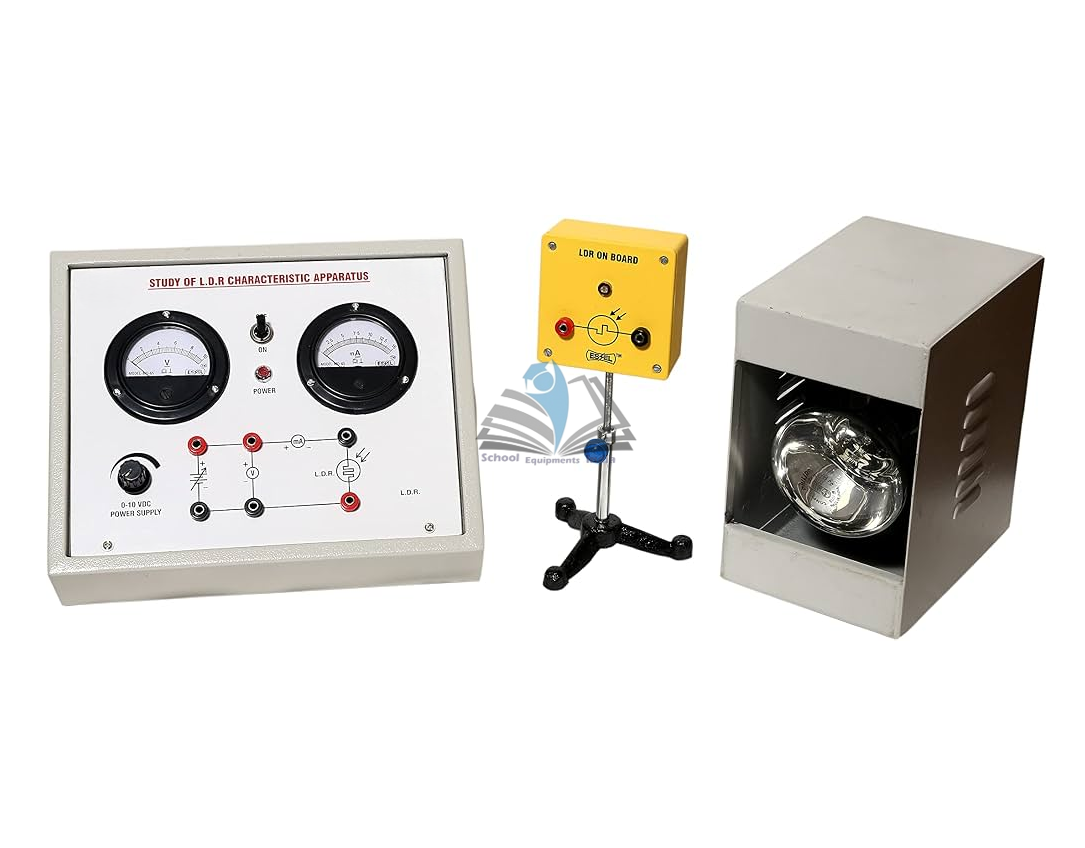

LDR Characteristics Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12363

The LDR Characteristics Apparatus is a physics and electronics laboratory apparatus used for studying how the resistance of a light dependent resistor changes with illumination. It is designed for school physics labs, college practical rooms, STEM classrooms, and electronics demonstrations where students observe light-controlled resistance behaviour.

Product Description

The LDR Characteristics Apparatus by School Equipments helps students investigate the relationship between light intensity and LDR resistance. It supports practical learning of photoresistance, sensor response, potential divider circuits, and basic light-sensing electronics.

This apparatus is suitable for teacher demonstrations and student practicals in current electricity and electronics. The final supplied configuration may include an LDR sensor, lamp or light source, meter connections, resistance measurement arrangement, variable distance setup, and connecting leads. Exact range, light source rating, sensor type, and included accessories should be confirmed before publishing.

Key Features

• Designed for studying LDR characteristics in physics and electronics laboratories.
• Helps demonstrate that LDR resistance changes when light intensity changes.
• Useful for teaching photoresistance, light sensors, and potential divider circuits.
• Supports graph-based practical work using resistance and illumination observations.
• Suitable for school, college, STEM, and technical training classrooms.
• Can be used with compatible meters, power supplies, lamps, and connecting leads.
• Sensor type, measuring range, and light source details should be verified from the final model.

Technical Specifications

What's Included in the Kit

• LDR Characteristics Apparatus main unit
• Light dependent resistor sensor
• Light source or lamp arrangement
• Input and output terminals
• Connecting leads
• Instruction sheet or experiment guide

Applications / Uses

• Studying the characteristics of a light dependent resistor.
• Measuring how resistance changes with illumination level.
• Teaching photoresistance and light-sensing electronic circuits.
• Plotting resistance versus light intensity or distance from light source.
• Demonstrating automatic light control and sensor-based switching concepts.
• Supporting school physics, STEM, and introductory electronics practicals.

How to Use the LDR Characteristics Apparatus

1. Place the apparatus on a dry and stable laboratory table.
2. Connect the LDR circuit according to the supplied experiment diagram.
3. Connect a compatible meter to measure resistance, voltage, or current as required.
4. Illuminate the LDR using the supplied or approved light source.
5. Change the light intensity by adjusting distance, covering the sensor, or using the provided control method.
6. Record readings for each light condition and prepare a results table.
7. Plot the graph and discuss how LDR resistance changes with light exposure.

Safety note: use only the confirmed low-voltage supply, avoid overheating the lamp, and do not look directly into intense light sources.

Care & Maintenance

• Keep the LDR surface clean and free from dust.
• Store the apparatus in a dry cabinet after use.
• Do not overload the sensor circuit beyond its confirmed rating.
• Check leads, terminals, and lamp condition before each practical session.

Why Choose School Equipments

School Equipments supplies physics laboratory apparatus, electronics kits, electrical accessories, didactic models, and STEM teaching equipment for educational institutions. The LDR Characteristics Apparatus is intended for hands-on sensor learning where students can observe a measurable response to light. School Equipments supports school, college, and export requirements with education-focused laboratory products. Product-specific sensor type, range, power rating, and supplied accessories should be verified before final quotation or publication.

Frequently Asked Questions

What is the LDR Characteristics Apparatus used for?

The LDR Characteristics Apparatus is used to study how the resistance of a light dependent resistor changes when the amount of light falling on it changes.

Is this apparatus suitable for school physics laboratories?

Yes. It is suitable for school physics labs, college practical rooms, STEM classrooms, and introductory electronics demonstrations under supervision.

What does an LDR do in a circuit?

An LDR acts as a light-sensitive resistor. Its resistance changes with illumination, making it useful in sensor circuits and automatic light-control demonstrations.

Does the kit include a light source?

The supplied product data does not confirm the final light source. Add lamp, LED, distance scale, or enclosure details only after checking the supplied kit.

Can students plot a graph with this apparatus?

Yes. Students can record resistance, voltage, or current under different light conditions and plot a graph to study the LDR response.

What category should this product be listed under?

This product should be listed under physics laboratory equipment, electricity and electromagnetism apparatus, electronics sensor apparatus, and STEM electronics kits.

For related electronics products, explore Electricity and Electromagnetism Apparatus, Simple Circuit Module Input Board LDR, Simple Circuit Module Light Dependent Resistor Unit, Alpha Electronics Physics Students Kit, and Power Supplies from School Equipments.

Suggested Image ALT Text: LDR Characteristics Apparatus for school physics light dependent resistor experiment
