NPN Transistor Unit Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12408

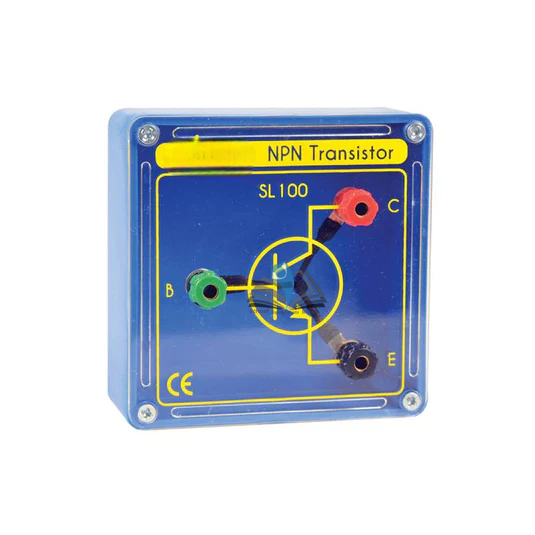

The NPN Transistor Unit is a physics and electronics teaching apparatus used for demonstrating NPN transistor operation, current gain, biasing and switching in classroom circuits. It is suitable for schools, colleges, STEM laboratories and physics teachers who need a practical unit for introducing semiconductor electronics.

Product Description

The NPN Transistor Unit from School Equipments is used to help students understand how an NPN transistor works as a current-controlled semiconductor device. In a typical NPN teaching circuit, a small base current controls a larger collector-emitter current when the transistor is correctly biased.

This unit is useful for lessons on transistor terminals, polarity, base current, collector current, switching action and basic amplifier behavior. It can be used with related electricity and electromagnetism apparatus, physics laboratory equipment, electrical accessories and electrical devices for complete electronics learning setups.

Key Features

• Designed for demonstrating NPN transistor operation in school physics and electronics labs.
• Useful for teaching emitter, base and collector terminal identification.
• Supports lessons on transistor biasing, current gain and switching action.
• Suitable for student practicals, teacher demonstrations and STEM electronics activities.
• Helps students compare NPN transistor behavior with PNP transistor circuits.
• Can be used with suitable low-voltage power supplies, meters, leads and circuit boards.
• Supports classroom explanation of semiconductor devices in basic electronics modules.

Technical Specifications

What's Included in the Kit

• 1 NPN Transistor Unit

Applications / Uses

• Demonstrating the operation of an NPN transistor in a classroom circuit.
• Teaching emitter, base and collector terminal functions.
• Showing transistor switching action using compatible circuit components.
• Explaining base current control and collector current behavior.
• Comparing NPN and PNP transistor behavior in electronics lessons.
• Supporting school physics, basic electronics and STEM practical records.

How to Use the NPN Transistor Unit

1. Place the NPN Transistor Unit on a dry, stable laboratory table or circuit-board area.
2. Identify the emitter, base and collector terminals before making connections.
3. Confirm the voltage and current rating of the supplied unit before powering the circuit.
4. Connect the unit according to the teacher’s circuit diagram or practical manual.
5. Use suitable resistors to limit base and collector current where required.
6. Connect meters if students need to observe base current, collector current or voltage changes.
7. Switch on the low-voltage supply and observe the transistor’s circuit response.
8. Switch off the supply before changing connections or replacing external components.

Safety and handling note: do not reverse polarity or exceed the confirmed current rating, as incorrect connections can damage the transistor unit.

Care & Maintenance

• Store the unit in a dry laboratory cabinet after use.
• Keep terminals clean and free from loose wire strands.
• Do not operate the unit above its confirmed voltage or current rating.
• Inspect connectors and labels before classroom demonstrations or practical examinations.

Why Choose School Equipments

School Equipments supplies scientific laboratory instruments, physics apparatus, science kits, mathematics kits, didactic models and STEM learning equipment for educational institutions. The company’s product categories include Physics, Electricity & Electromagnetism, Electrical Accessories and Electrical Devices for school laboratory procurement. The NPN Transistor Unit supports practical electronics teaching where students need to observe transistor action in a real circuit. Buyers should confirm rating, terminal layout, mounting type and supplied accessories before publishing or tender submission.

Frequently Asked Questions

What is an NPN Transistor Unit used for?

An NPN Transistor Unit is used to demonstrate transistor operation, current gain, biasing and switching in school physics and electronics experiments.

Can this unit be used in school electronics practicals?

Yes, it is suitable for school physics labs, STEM classrooms and basic electronics lessons when used with a compatible low-voltage circuit and teacher supervision.

What is the difference between NPN and PNP transistor units?

An NPN transistor uses opposite polarity compared with a PNP transistor. In common teaching circuits, an NPN transistor is usually switched on by applying a suitable positive base bias relative to the emitter.

Does this product include resistors or connecting wires?

Resistors, connecting wires, meters and power supply are not specified in the supplied product data. The confirmed included component is 1 NPN Transistor Unit.

What rating does this NPN Transistor Unit have?

The voltage and current rating are not specified in the supplied data. Confirm the exact rating before publishing, quotation or tender submission.

Can students compare NPN and PNP transistor circuits with this unit?

Yes, students can compare NPN and PNP circuit behavior if both suitable units and correct circuit diagrams are available. Polarity and current-limiting resistors must be checked before use.

For more classroom electronics and circuit-study apparatus, explore the Electricity & Electromagnetism Apparatus category from School Equipments.
