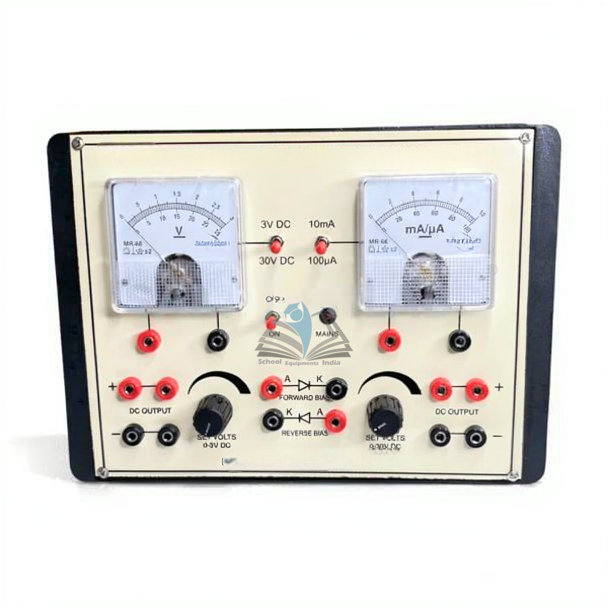

PN Junction Diode Apparatus Two Meter Manufacturer,Supplier and Exporter in India
.png)
Product Code : SCL-EE-12376
The PN Junction Diode Apparatus is a physics and electronics laboratory apparatus used for studying the voltage-current characteristics of a PN junction diode in forward and reverse bias. It is designed for school physics labs, college practical rooms, STEM classrooms, and electronics experiments using a two-meter measurement arrangement.
Product Description
The PN Junction Diode Apparatus – 2 Meter by School Equipments helps students understand semiconductor diode behaviour through direct circuit observation. It is used to record applied voltage and diode current, then plot the V-I characteristics curve for forward and reverse bias conditions.
This apparatus is suitable for lessons on semiconductor junctions, rectification, threshold voltage, leakage current, and non-linear electrical components. The supplied name indicates a two-meter configuration, but exact meter ranges, diode type, power supply arrangement, panel material, and protection features should be confirmed before publishing.
Key Features
- Designed for studying PN junction diode V-I characteristics.
- Two-meter arrangement supports simultaneous voltage and current observation.
- Useful for forward bias and reverse bias diode experiments.
- Supports semiconductor physics, electronics, and current electricity lessons.
- Helps students plot voltage-current graphs from practical readings.
- Suitable for school, college, STEM, and electronics teaching laboratories.
- Meter range, diode rating, and circuit protection should be verified before use.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
PN Junction Diode Apparatus – 2 Meter |
|
Brand |
School Equipments |
|
Product Category |
Physics Laboratory Equipment / Electricity and Electromagnetism Apparatus / Semiconductor Electronics Apparatus |
|
Primary Keyword |
PN Junction Diode Apparatus |
|
Secondary Keywords |
PN junction diode experiment, diode V-I characteristics apparatus, semiconductor diode kit, forward reverse bias experiment, school electronics apparatus, two meter diode apparatus |
|
Intended Users |
Schools, colleges, STEM labs, physics teachers, electronics classrooms, and student practical groups |
|
Standards / Certifications |
Not specified; verify before publishing |
What's Included in the Kit
- PN Junction Diode Apparatus main unit
- Two built-in or connected meters
- PN junction diode circuit section
- Forward and reverse bias terminals or switching arrangement
- Connecting leads
- Instruction sheet or experiment guide
Applications / Uses
- Studying forward bias characteristics of a PN junction diode.
- Studying reverse bias behaviour and leakage-current concept.
- Plotting diode voltage-current characteristic curves.
- Teaching semiconductor junction action and threshold voltage.
- Introducing rectification and one-way current flow in electronics.
- Supporting school and college electronics practical work.
How to Use the PN Junction Diode Apparatus – 2 Meter
- Place the apparatus on a dry and stable laboratory table.
- Identify the voltage meter, current meter, diode terminals, and bias controls.
- Connect the circuit as shown in the supplied experiment diagram.
- Apply the confirmed low-voltage supply and start with the minimum setting.
- Increase voltage gradually and record voltage and current readings.
- Repeat the procedure for reverse bias if the apparatus supports it.
- Plot the V-I graph and identify the diode conduction region.
Safety note: use only the rated low-voltage supply, avoid short circuits, and do not exceed the confirmed diode or meter current limits.
Care & Maintenance
- Keep the apparatus dry, clean, and protected from dust.
- Check meters, terminals, leads, and switches before each practical session.
- Do not overload the diode or meters beyond confirmed ratings.
- Store the apparatus in protective packing after use.
Why Choose School Equipments
School Equipments supplies physics laboratory apparatus, electronics kits, electrical accessories, science models, and STEM teaching equipment for educational institutions. The PN Junction Diode Apparatus is intended for hands-on semiconductor teaching where students record real voltage and current data. School Equipments supports school, college, and export requirements with education-focused laboratory products. Product-specific meter range, diode rating, circuit layout, and supplied accessories should be verified before final quotation or publication.
Frequently Asked Questions
What is the PN Junction Diode Apparatus used for?
The PN Junction Diode Apparatus is used to study the V-I characteristics of a PN junction diode in forward and reverse bias conditions.
What does “2 Meter” mean in this apparatus?
It indicates a two-meter measurement arrangement, usually for observing voltage and current separately. Confirm the exact meter type and range before publishing.
Is this apparatus suitable for school physics laboratories?
Yes. It is suitable for school physics labs, college practical rooms, STEM classrooms, and introductory electronics demonstrations.
Can students plot a diode characteristic curve with this apparatus?
Yes. Students can record voltage and current readings and plot the PN junction diode V-I characteristics graph.
Does the apparatus include a power supply?
The supplied product data does not confirm an included power supply. Add supply details only after checking the final kit contents.
What category should this product be listed under?
This product should be listed under physics laboratory equipment, electricity and electromagnetism apparatus, semiconductor electronics apparatus, and diode experiment kits.
For related electronics teaching products, explore Electricity and Electromagnetism Apparatus, Alpha Electronics Physics Students Kit, Puzzle Box, Simple Circuit Module Red LED Board, and Power Supplies from School Equipments.
Suggested Image ALT Text: PN Junction Diode Apparatus 2 Meter for school physics V-I characteristics experiment
