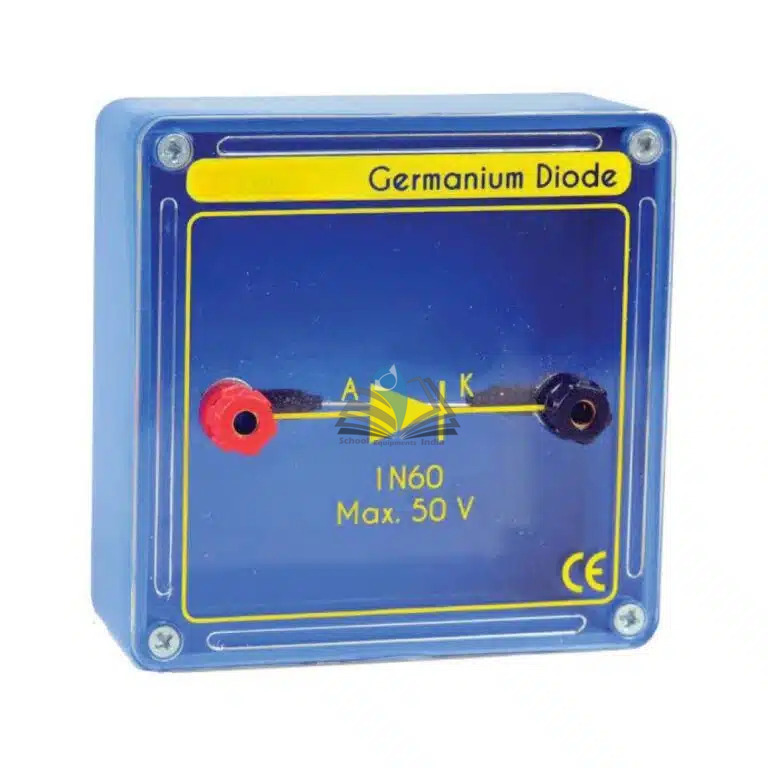

PN Junction Diode Unit Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12410

The PN Junction Diode Unit is a physics and electronics teaching apparatus used for demonstrating forward bias, reverse bias and diode characteristics in classroom circuits. It is suitable for schools, colleges, STEM laboratories and physics teachers who need a practical semiconductor unit for teaching basic electronics.

Product Description

The PN Junction Diode Unit from School Equipments helps students understand how a PN junction diode allows current more easily in forward bias and restricts current in reverse bias under normal classroom circuit conditions. It is used to demonstrate polarity, threshold behavior and current-voltage response.

This unit is useful for lessons on semiconductor devices, rectification, diode terminals and basic circuit protection. It can be used with related electricity and electromagnetism apparatus, physics laboratory equipment, electrical accessories and electrical devices for complete classroom electronics setups.

Key Features

• Designed for demonstrating PN junction diode behavior in school physics and electronics labs.
• Useful for teaching forward bias, reverse bias, anode, cathode and current direction.
• Supports practical study of diode V-I characteristics and threshold voltage behavior.
• Suitable for student practicals, teacher demonstrations and STEM electronics activities.
• Can support introductory rectifier circuit demonstrations when used with suitable components.
• Compatible with supervised low-voltage classroom circuit experiments.
• Helps students compare PN junction diode behavior with Zener diode and LED units.

Technical Specifications

What's Included in the Kit

• 1 PN Junction Diode Unit

Applications / Uses

• Demonstrating forward-bias and reverse-bias behavior of a diode.
• Teaching anode, cathode, polarity and current direction.
• Plotting basic voltage-current characteristics in classroom practicals.
• Introducing rectification using compatible external circuit components.
• Comparing PN junction diode behavior with Zener diode and LED circuits.
• Supporting school physics, basic electronics and STEM practical records.

How to Use the PN Junction Diode Unit

1. Place the PN Junction Diode Unit on a dry, stable laboratory table.
2. Identify the anode and cathode terminals before making connections.
3. Confirm the voltage and current rating of the supplied unit before powering the circuit.
4. Connect the diode in forward bias according to the practical circuit diagram.
5. Use a suitable series resistor to limit current during the experiment.
6. Measure voltage and current using compatible meters if V-I characteristics are being studied.
7. Repeat the setup in reverse bias only within the safe rating of the unit.
8. Switch off the power supply before changing connections or replacing components.

Safety and handling note: never connect the diode directly across a power supply without current limiting, and do not exceed the confirmed rating.

Care & Maintenance

• Store the unit in a clean, dry laboratory cabinet after use.
• Keep terminals clean and free from loose wire strands.
• Check terminal markings before each student practical session.
• Do not operate the unit above its confirmed voltage, current or power rating.

Why Choose School Equipments

School Equipments supplies scientific laboratory instruments, physics apparatus, science kits, mathematics kits, didactic models and STEM learning equipment for educational institutions. The company’s product categories include Physics, Electricity & Electromagnetism, Electrical Accessories and Electrical Devices for school laboratory procurement. The PN Junction Diode Unit supports practical electronics teaching where students need to observe diode action in real circuits. Buyers should confirm rating, terminal layout, mounting type and supplied accessories before publishing or tender submission.

Frequently Asked Questions

What is a PN Junction Diode Unit used for?

A PN Junction Diode Unit is used to demonstrate forward bias, reverse bias, polarity and voltage-current characteristics in school physics and basic electronics experiments.

Can this unit be used in school electronics practicals?

Yes, it is suitable for school physics labs, STEM classrooms and introductory electronics lessons when used with teacher supervision and a compatible low-voltage circuit.

What is forward bias in a PN junction diode?

Forward bias means the diode is connected so it can conduct current after the required forward voltage condition is reached. Students use this to study current flow through the diode.

What is reverse bias in a PN junction diode?

Reverse bias means the diode is connected so it blocks current under normal operating conditions. The safe reverse-voltage limit must be confirmed before experiment use.

Does this product include resistors or connecting wires?

Resistors, connecting wires, meters and power supply are not specified in the supplied product data. The confirmed included component is 1 PN Junction Diode Unit.

What rating does this PN Junction Diode Unit have?

The voltage, current and power rating are not specified in the supplied data. Confirm the exact rating before publishing, quotation or tender submission.

For more classroom electronics and semiconductor teaching products, explore the Electricity & Electromagnetism Apparatus category from School Equipments.
