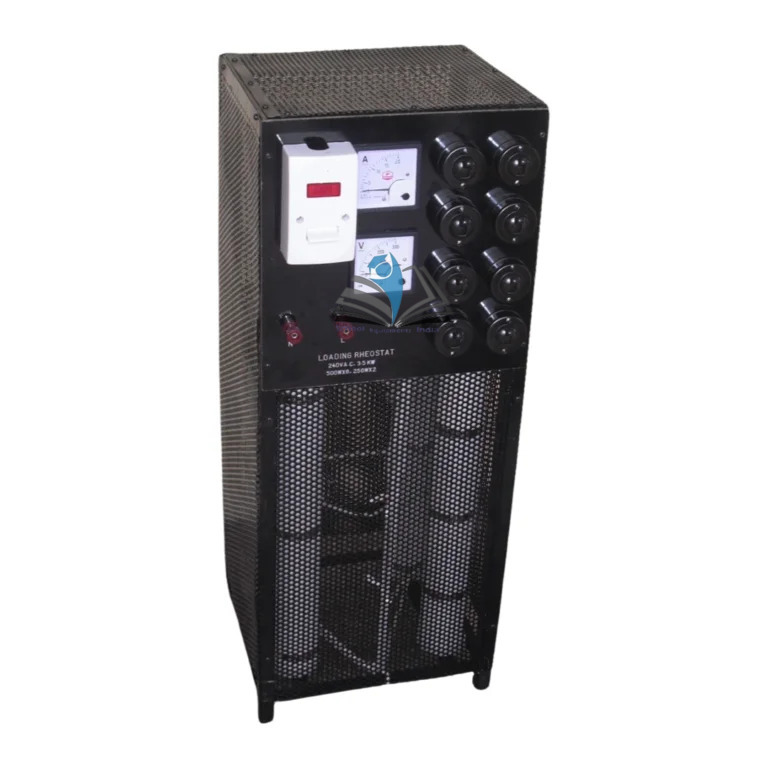

Resistive Load Bank Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-EE-12423
The Resistive Load Bank is a physics and electrical laboratory apparatus used to apply a controlled resistive load to a circuit, power source, or electrical training setup. It is designed for school labs, electronics classrooms, and STEM demonstrations where students need to observe voltage, current, resistance, and power under load.
Product Description
The Resistive Load Bank is used in educational experiments where a known or adjustable resistance load is required. It helps students understand how electrical circuits behave when load resistance changes, and how voltage, current, heating effect, and power dissipation are related.
This apparatus is suitable for supervised physics, electronics, and vocational training practicals. The supplied product data does not specify resistance range, wattage, voltage rating, current rating, cooling method, enclosure material, or terminal type. These details should be confirmed before publishing or procurement.
Key Features
- Designed to apply a resistive load in school electrical experiments.
- Supports practical study of voltage, current, resistance, and power.
- Useful for load testing compatible power supplies and circuit setups.
- Suitable for physics laboratories, electronics trainers, and STEM demonstrations.
- Helps students observe load variation and circuit response in real time.
- Can support lessons involving Ohm’s law, power dissipation, and Joule heating.
- Suitable for use with compatible meters and low-voltage educational circuits.
- Resistance range, power rating, voltage rating, and cooling design.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
Resistive Load Bank |
|
Brand |
School Equipments |
|
Product Category |
Physics Laboratory Equipment / Electrical Load & Circuit Testing Apparatus |
|
Function |
Applies controlled resistive load to circuits or compatible power sources |
|
Standards / Certifications |
Not specified in supplied data; verify before publishing |
What's Included in the Kit
- 1 Resistive Load Bank unit
- Connecting leads, selector switches, meters, manual, or accessories
Applications / Uses
- Applying a controlled resistive load in school physics practicals.
- Studying voltage drop, current flow, and resistance behaviour.
- Demonstrating Ohm’s law and electrical power dissipation.
- Testing compatible laboratory power supplies under load.
- Supporting electronics and vocational electrical training setups.
- Using with related electricity and electromagnetism apparatus.
How to Use the Resistive Load Bank
- Place the Resistive Load Bank on a dry, stable, and ventilated laboratory bench.
- Confirm the required voltage, current, resistance, and power rating before connection.
- Connect the load bank to the circuit or power source using suitable laboratory leads.
- Set the required resistance or load step if the model has selectable settings.
- Switch on the connected supply and observe voltage, current, and load response.
- Record readings with compatible measuring instruments during the experiment.
- Switch off the supply and allow the load bank to cool before handling or storage.
Safety note: A resistive load can become hot during operation. Do not touch exposed load elements, exceed the confirmed rating, block ventilation, or use the apparatus with damaged leads.
Care & Maintenance
- Keep the load bank dry, clean, and free from dust after each use.
- Inspect terminals, leads, switches, and load elements before experiments.
- Allow the apparatus to cool fully before storing it in a cabinet.
- Do not operate beyond the confirmed voltage, current, resistance, or wattage rating.
Why Choose School Equipments
School Equipments is based in Ambala, India, and manufactures and supplies science education instruments and school laboratory equipment for educational use. The brand supports physics, chemistry, biology, mathematics, STEM models, and general laboratory equipment categories.
For electrical experiments, School Equipments focuses on practical apparatus that supports classroom demonstration and supervised student learning. Buyers should confirm the final resistance range, wattage, voltage rating, cooling method, terminal type, and packing details before procurement or catalogue upload.
Frequently Asked Questions
What is a Resistive Load Bank used for?
A Resistive Load Bank is used to apply a controlled resistance load to a circuit or compatible power source. In school labs, it helps students study voltage, current, resistance, and power under load.
Is the Resistive Load Bank suitable for school physics laboratories?
Yes. It is suitable for supervised physics, electronics, and STEM laboratory experiments where controlled resistive loading is required.
Can it be used for Ohm’s law experiments?
Yes. A resistive load bank can support Ohm’s law demonstrations by helping students observe how current and voltage change with resistance.
Does a resistive load bank become hot during use?
Yes. Resistive loads can generate heat during operation because electrical energy is dissipated as heat. Use the apparatus only within its confirmed rating and allow it to cool before handling.
What is the power rating of this load bank?
The supplied product data does not specify the wattage or load capacity. These details should be confirmed before publishing the final technical specification.
Are meters and connecting leads included?
Meters and connecting leads are not confirmed in the supplied data. Include them in the listing only if they are part of the verified packing.
Explore related electrical accessories, measuring equipment, electricity and electromagnetism apparatus, and physics laboratory equipment from School Equipments.
