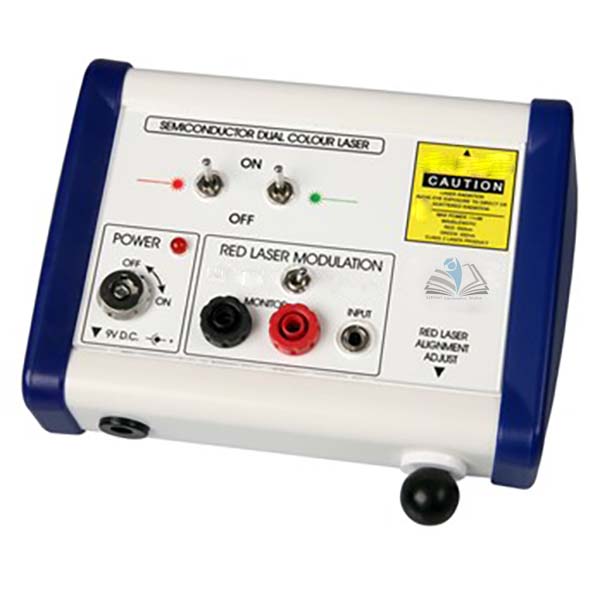

Dual Colour Laser
Product Code : EL-W-11128
Quick Answer: The Dual Colour Laser is a Class 2 semiconductor laser with two independently controlled diodes, red and 532 nm green, whose diffraction patterns through a double slit can be shown one above the other for comparison.
Last updated: October 2026
Key Features
- Two independently controlled laser diodes: red and 532 nm green
- Both beams can pass through a double slit slide at the same time
- Internal 1 MHz modulation for speed of light determination with a laser receiver and oscilloscope
- External modulation input for audio from a smartphone or mp3 player
- Removable key prevents unauthorised use
- Supplied with a 9 V power supply and full instructions
Technical Specifications
| Specification | Value |
|---|---|
| Power output | <1mW max. |
| Laser class | Class 2 |
| Wavelengths | Green 532nm (+/-5nm), red 655nm (+/-5nm) |
| Beam divergence | 1.5mRad, green and red |
| Modulation | 1MHz internal, audio frequencies external |
| Input voltage | External 9V D.C. power supply, +ve pin (included) |
| Dimensions | (L)150mm x (W)110mm x (H)65mm |
| Weight | 390g |
About This Product
Passing both beams through a double slit slide at once displays the red and green diffraction patterns one above the other for immediate comparison. Using the internal 1 MHz modulation with the laser receiver and an oscilloscope, the speed of light can be determined in the laboratory, and an external source can modulate the laser to send audio to the receiver.
Frequently Asked Questions
Q1. How is unauthorised use prevented?
The laser is switched on with a removable key, which prevents unauthorised use.
Q2. What laser class is it?
It is a Class 2 laser with a maximum power output below 1 mW.
Related: Waves, Double Convex Spherical Lenses +20D.
For a quotation on the Dual Colour Laser, contact School Equipments India.
