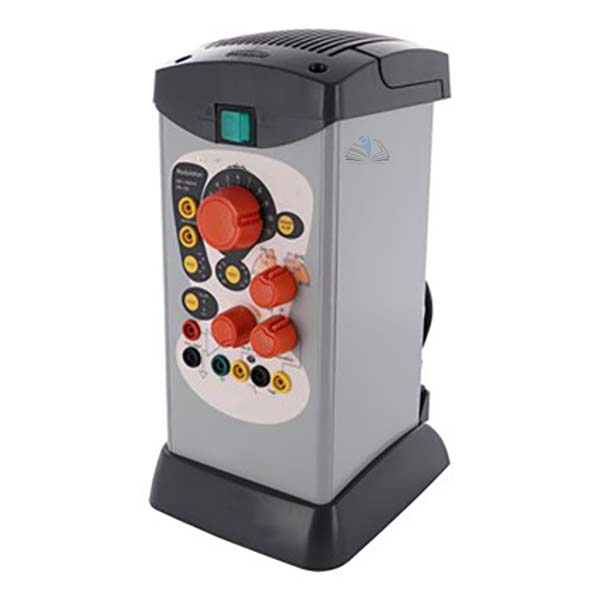

Power Signal Generator Manufacturer,Supplier and Exporter in India
Product Code : EL-PS-10369
Product Description
The power signal generator is a versatile device, enclosed in our SpaceSaver case, it is ideal for all experiments in sound, driving loudspeakers and also the vibration generator.
It can produce a wide range of signals, from 0.1Hz to 110kHz, with an output power of up to 5W.
There are low and high impedance outputs, with the low impedance protected by a time delay fuse.
The unit features an internal speaker that can be turned on and off, and can be used to demonstrate the range of human hearing (from 20Hz up to 20kHz).
Frequency control is via a six position decade dial and a large continuous dial which controls a multiplier from x1 to x11.
There are also a dials to control amplitude from 0V to 5V, and attenuation on the high impedance output. Buttons control the shape of the function (sine, triangle, square and TTL), turn the internal speaker on or off, select the modulation mode, and between auxiliary or internal signal.
There are inputs for signal modulation by an external signal, which can be a.m. or f.m., for exploring different types of radio signals, and an auxiliary input for amplification of an external signal instead of the internal function generator, such as from a microphone or music player.
This instrument is ideal for powering large speakers, and is necessary for driving the vibration generator to explore vibrations and waves.
The mains cord is kept tidy, by means of the cable retainer on the back of the unit which allows the cable to be stowed away neatly with the use of winding hooks and a clip to secure the cable.
Sine, square, triangular and TTL waveforms available
Amplitude and frequency modulation
High impedance output may be attenuated by a factor of 10 or 100 to provide fine control over low level outputs
Built-in speaker for audible frequency range
Instrument amplifier for amplification of signal generator output or external input
Continuously variable output, low and high impedance
Separate time-delay fuses protect the transformer primary and low impedance output
Thermal trip protection for transformer
Product Information
Frequency Range 0.1Hz - 110kHz in 6 decades
Fuse T250mA time delay
Humidity (%RH) 10 - 90
Internal Fuse T2A time delay
Output Sine, square, triangular and TTL waveforms
Product Type Signal Generators
Ratings 230V ac 50Hz 100VA
Signal Generator Type Power Signal Generators
Temperature limits (°C) 10 - 40
