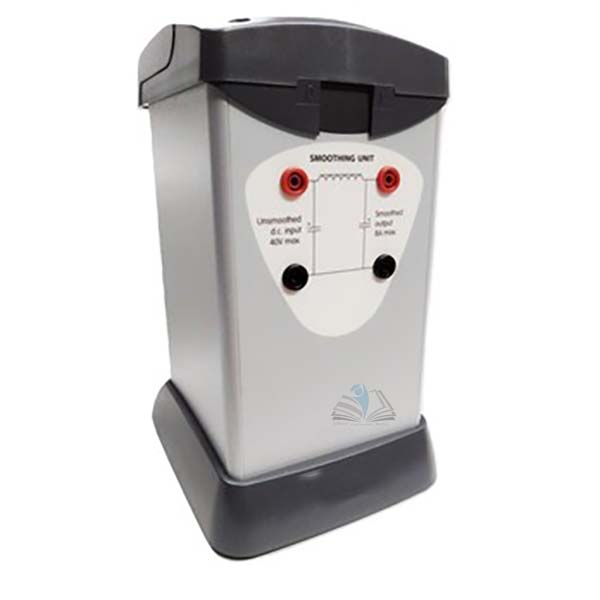

Smoothing Unit

Smoothing Unit

Product Code : EL-PS-10376

Quick Answer: The Smoothing Unit reduces the ripple from non-regulated power supplies using a 0.1H inductor and two 2200µF capacitors, giving typically 1% ripple at 12V and 3A.

Last updated: October 2026

Key Features

  • 0.1H inductor
  • Two 2200µF capacitors
  • Keeps output smooth while high currents are drawn
  • Typical ripple of 1% with a 12V, 3A supply

Technical Specifications

SpecificationValue
Inductor0.1H
CapacitorsTwo 2200µF
Typical ripple1% with a 12V, 3A supply
Dimensions175 x 190 x 298mm (W x D x H)
Mass4.9kg

About This Product

Connected after a non-regulated supply, this unit filters the output so that experiments receive a much steadier voltage. It holds that smoothing even when high currents are drawn. The case is 175mm wide and 298mm high, and its depth is 206mm including cable clips. The Smoothing Unit is available for supply within India and for export to Angola, Eritrea, Zimbabwe, Lithuania, South Africa and Burkina Faso.

Related: Power Supplies, Regulated PSU, Electromagnetics Power Unit.

For a quotation on the Smoothing Unit, contact School Equipments India.
