Analog & Digital IC trainer kit Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-EE-12324

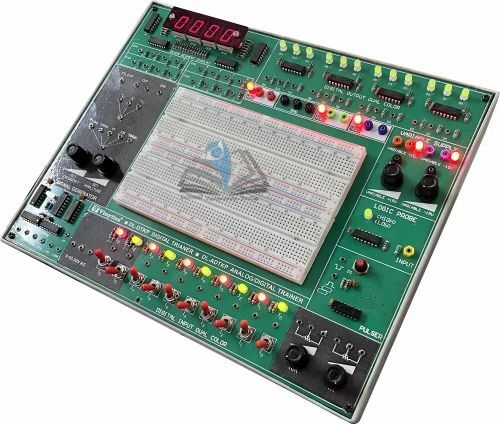

The Analog & Digital IC Trainer Kit is an electronics laboratory training system used for teaching integrated circuit experiments in analog and digital circuits. It is designed for schools, colleges, vocational training centres, STEM labs, and electronics teachers who need a practical platform for circuit building, testing, and demonstration.
Product Description
The Analog & Digital IC Trainer Kit by School Equipments supports practical learning of basic and intermediate electronics concepts. It helps students study integrated circuits, logic functions, signal behaviour, amplifier circuits, timer circuits, and circuit troubleshooting through guided hands-on experimentation.
This trainer kit is suitable for electronics laboratories where students need to assemble, test, and observe circuit outputs under teacher supervision. It can be used for analog IC experiments, digital IC experiments, logic gate demonstrations, and basic circuit analysis, subject to the confirmed configuration supplied with the model. Related laboratory categories include Physics Lab Equipment, Electricity and Electromagnetism Equipment, Lab Equipment, and STEM Lab Kits.
Key Features
- Analog and digital IC learning: Supports classroom study of both linear and logic-based integrated circuits.
- Practical circuit training: Helps students build, connect, test, and observe real circuit behaviour.
- Useful for logic experiments: Suitable for demonstrations of gates, truth tables, flip-flops, counters, and related digital topics, if supported by the supplied model.
- Useful for analog experiments: Supports study of op-amp, timer, comparator, and amplifier circuits, subject to confirmed kit configuration.
- Educational panel format: Designed for repeated use in electronics labs and teacher-led practical sessions.
- Clear experiment workflow: Allows learners to connect inputs, observe outputs, and verify circuit results step by step.
- Safe supervised use: Intended for low-voltage educational laboratory experiments under instructor guidance.
Technical Specifications
|
Specification |
Detail |
|
Product name |
Analog & Digital IC Trainer Kit |
|
Brand |
School Equipments |
|
Product category |
Electronics Lab Trainer / Physics Electricity Teaching Apparatus / STEM Training Kit |
|
Primary keyword |
Analog & Digital IC Trainer Kit |
|
Intended users |
Schools, colleges, electronics laboratories, STEM labs, vocational training centres, and teacher demonstration rooms |
|
Dimensions / weight |
Not specified |
|
Standards or certifications |
Not specified; verify before publishing |
What's Included in the Kit
- 1 Analog & Digital IC Trainer Kit main unit
- Patch cords or connecting leads, if supplied
- ICs for analog and digital experiments, if supplied
- Experiment manual or instruction sheet, if supplied
- Power cord or adaptor, if supplied
Applications / Uses
- Teaching analog and digital integrated circuit fundamentals.
- Demonstrating logic gates, truth tables, counters, and flip-flops.
- Studying op-amp, comparator, amplifier, and timer circuits.
- Training students in circuit wiring, testing, and troubleshooting.
- Supporting electronics practicals in physics and engineering foundation labs.
- Using in STEM classrooms, vocational electronics courses, and project-based learning sessions.
How to Use the Analog & Digital IC Trainer Kit
- Place the trainer kit on a dry and stable laboratory bench.
- Check the confirmed power rating before switching on the unit.
- Select the experiment from the approved laboratory manual.
- Insert the required ICs only in the correct orientation, if removable ICs are used.
- Connect the circuit using patch cords as shown in the experiment diagram.
- Apply the required input signals or logic levels.
- Observe the output using the available indicators, meter, oscilloscope, or external test instrument.
- Record the results and compare them with the expected circuit behaviour.
Safety note: Do not exceed the confirmed voltage or current ratings. Switch off the trainer before changing ICs or modifying circuit connections.
Care & Maintenance
- Store the trainer kit in a dry, dust-free cabinet after use.
- Keep patch cords, terminals, sockets, and switches clean and undamaged.
- Do not force ICs into sockets or connect wires to incorrect terminals.
- Inspect the power cable, adaptor, and panel before each laboratory session.
Why Choose School Equipments
School Equipments develops, manufactures, and supplies science education instruments and school laboratory equipment from Ambala, India. The brand serves educational institutions with products for physics, electronics, STEM learning, and practical laboratory demonstrations. Its range includes electronics lab trainers, physics instruments, science kits, microscopes, and school laboratory apparatus. For related electronics teaching products, see the Alpha Electronics Physics Students Kit.
Frequently Asked Questions
What is an Analog & Digital IC Trainer Kit used for?
An Analog & Digital IC Trainer Kit is used to teach practical integrated circuit experiments. It helps students build and test analog and digital electronic circuits in a laboratory setting.
Is this trainer kit suitable for school and college labs?
Yes, it is suitable for school physics labs, college electronics labs, STEM labs, and vocational training centres. The final experiment range should be matched with the course syllabus.
Which IC experiments can be performed on this kit?
The kit can support analog and digital IC experiments, subject to the supplied configuration. Confirm the included IC list and experiment manual before publishing or ordering.
Does the trainer kit include a built-in power supply?
The supplied data does not confirm the power supply arrangement. Verify whether the model includes an internal supply, external adaptor, or both.
Can students use the IC trainer independently?
Students can perform experiments after instruction, but the kit should be used under teacher or lab technician supervision, especially when inserting ICs or changing connections.
What should be checked before using the trainer kit?
Check the power rating, IC orientation, wiring connections, patch cords, and experiment diagram before switching on the trainer kit.
For more classroom electronics and circuit demonstration products, browse Electricity and Electromagnetism Equipment from School Equipments.
