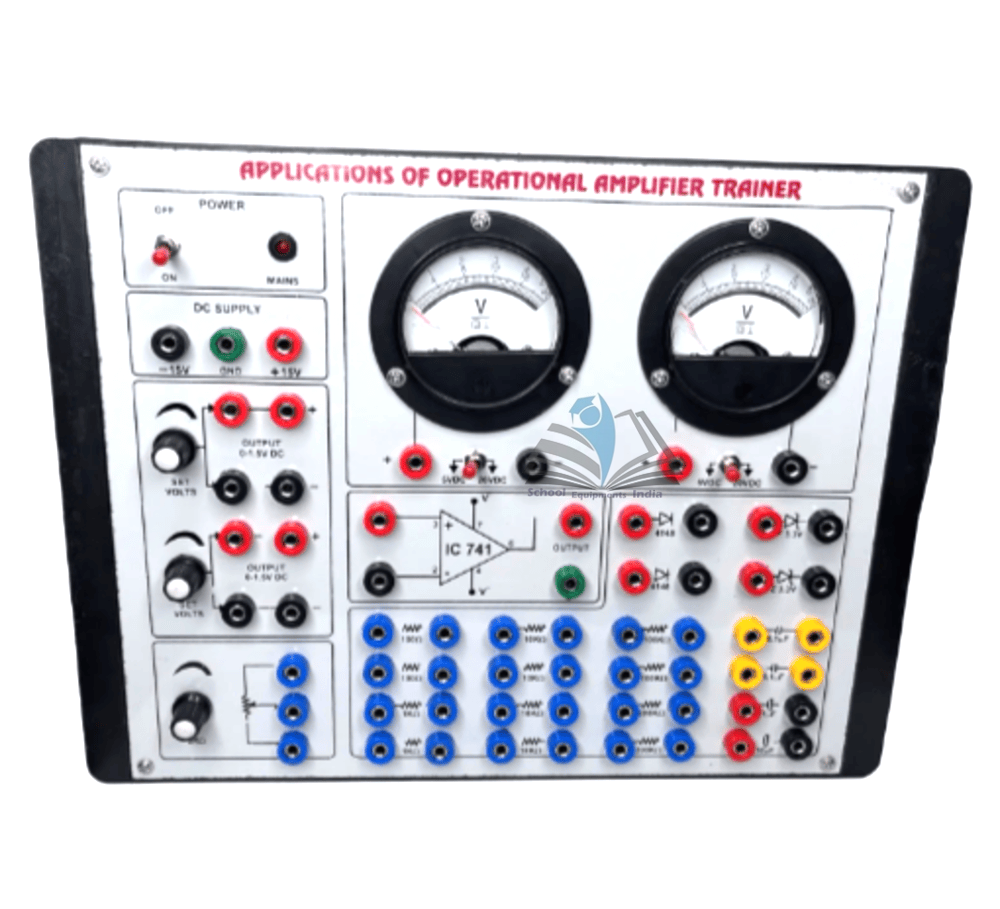

Quick Answer: The Operational Amplifier Trainer is an electronics training unit for teaching op-amp circuit principles through practical amplifier, comparator, feedback and signal-conditioning experiments.
Last updated: October 2026
Key Features
Dedicated platform for studying common operational amplifier circuits.
Students wire, test and verify op-amp behaviour with real connections.
Covers feedback, gain, input-output relationship and signal response.
Inverting, non-inverting, follower, summing, comparator, integrator and differentiator circuits, depending on the supplied configuration.
About This Product
On this trainer, learners connect an op-amp circuit, apply an input signal, observe the output and compare the result with theory, recording the response step by step. It supports foundational lessons in analog electronics, instrumentation and signal processing. The unit is intended for supervised low-voltage experiments in school and college electronics labs. Export supply of the Operational Amplifier Trainer can be arranged to laboratories and schools in Colombia, Moldova, Palestine, Mauritius and Argentina.
Frequently Asked Questions
Q1. Is external test equipment used with the trainer? Oscilloscopes, multimeters and function generators are used where an experiment requires external measurement.
