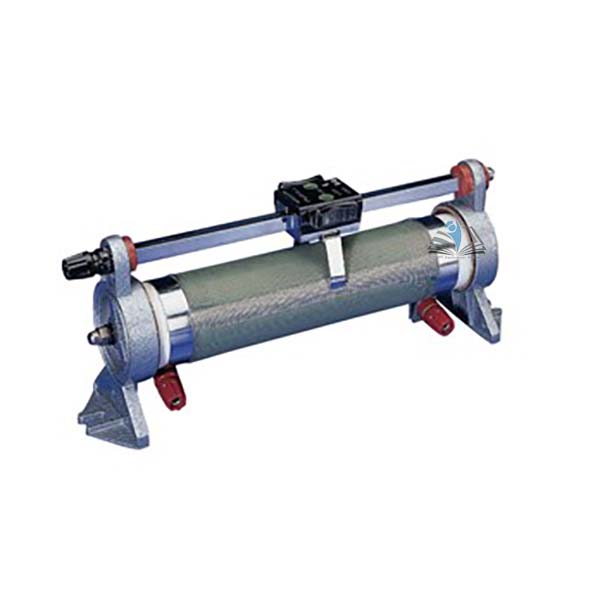

Rheostat Standard Range - 4A
Product Code : EL-EE-11003
Quick Answer: The Rheostat Standard Range - 4A is a 16 ohm rheostat rated at 4 A, wound with heavily oxidised resistance wire on a vitreous enamelled tube, with a nickel-plated phosphor bronze sliding contact.
Last updated: October 2026
Key Features
- Resistance 16 ohms; maximum current 4 A
- Heavily oxidised resistance wire on a vitreous enamelled tube
- Winding secured with ceramic cement
- Multi-leaf phosphor bronze sliding contact, nickel-plated for corrosion resistance
- Tube supported on diecast end stands
- 4 mm terminal posts take 4 mm plugs, spade terminals or bare-ended leads
Technical Specifications
| Specification | Value |
|---|---|
| Resistance | 16 ohms |
| Maximum current | 4 A |
| Tube size | 200 mm x 63 mm |
| Overall size | 255 mm x 100 mm x 63 mm |
| Sliding contact | Multi-leaf phosphor bronze, nickel-plated |
| Terminals | 4 mm terminal posts |
About This Product
The resistance wire is heavily oxidised and wound on a vitreous enamelled tube, with the winding held in place by ceramic cement. A heavy duty, multi-leaf sliding contact moves along the winding, and the tube is supported on diecast end stands. Export supply of the Rheostat Standard Range - 4A can be arranged to laboratories and schools in Ecuador, Kiribati, Antigua and Barbuda, Timor-Leste and Venezuela.
Frequently Asked Questions
Q1. What leads can be connected to the rheostat?
Its 4 mm terminal posts accept conventional 4 mm plug leads, spade terminals or bare-ended leads.
