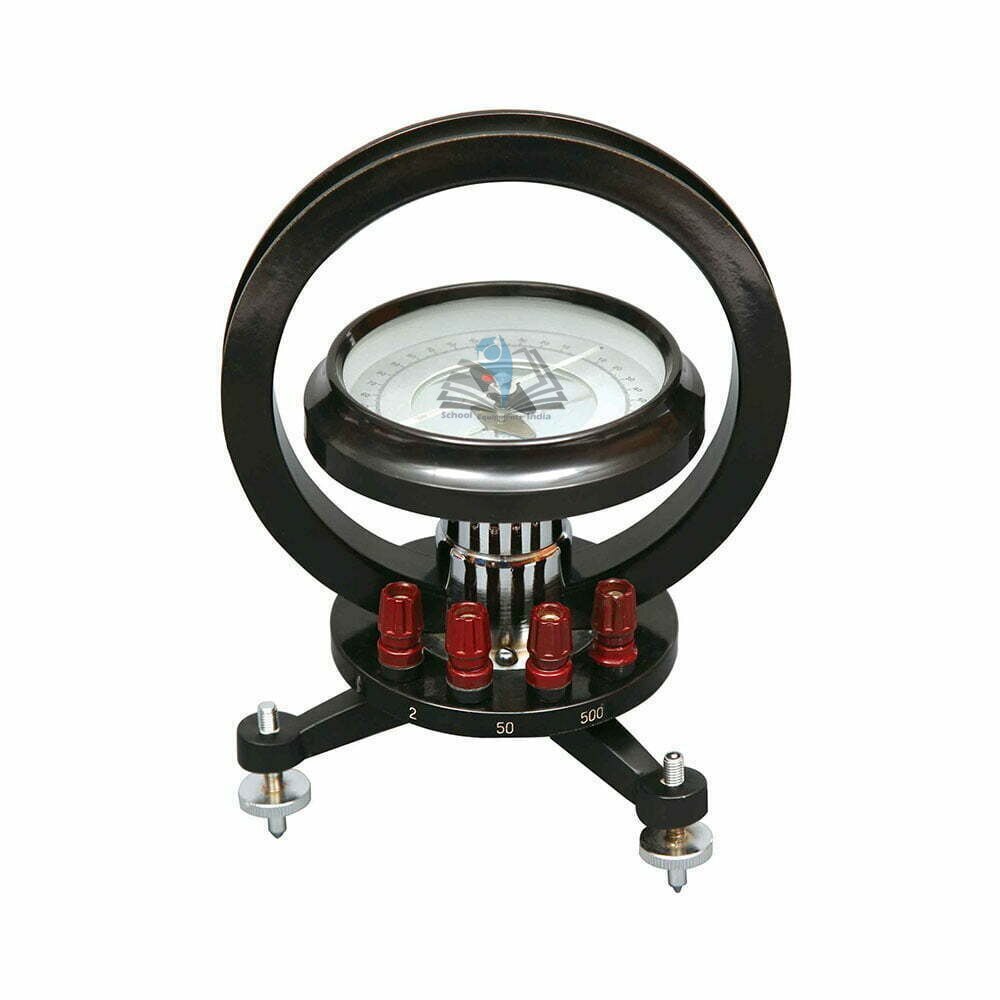

Tangent Galvanometer Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12412

The Tangent Galvanometer is a physics lab apparatus used for demonstrating the relationship between electric current and magnetic field using the tangent law. It is suitable for schools, colleges, STEM laboratories and physics teachers who need a practical instrument for electromagnetism, current measurement and magnetic field experiments.

Product Description

The Tangent Galvanometer from School Equipments is used in school physics laboratories to study how a current-carrying circular coil produces a magnetic field. When current passes through the coil, the magnetic needle deflects, allowing students to observe the relationship between coil current and magnetic deflection.

This apparatus supports practical teaching of electromagnetism, earth’s magnetic field, current measurement and tangent law verification. It can be used with related electricity and electromagnetism apparatus, physics laboratory equipment, measuring equipment and electrical accessories for complete classroom circuit and magnetism setups.

Key Features

• Designed for demonstrating tangent law and magnetic field due to a circular current-carrying coil.
• Useful for teaching current, magnetic deflection, coil orientation and compass needle response.
• Supports school physics practicals on electromagnetism and magnetic field measurement.
• Suitable for teacher demonstrations, supervised student experiments and STEM lab activities.
• Helps students connect theoretical current-magnetism relationships with visible needle deflection.
• Can be used with compatible low-voltage power supplies, rheostats, ammeters and connecting leads.
• Practical apparatus for laboratory records, viva preparation and examination demonstrations.

Technical Specifications

What's Included in the Kit

• 1 Tangent Galvanometer

Applications / Uses

• Demonstrating magnetic field produced by a current-carrying circular coil.
• Verifying tangent law in school physics practicals.
• Studying the relationship between current and magnetic needle deflection.
• Teaching compass alignment and magnetic meridian concepts.
• Supporting electromagnetism experiments with ammeters, rheostats and low-voltage DC supplies.
• Preparing students for physics practical records, viva questions and laboratory examinations.

How to Use the Tangent Galvanometer

1. Place the tangent galvanometer on a stable, level laboratory table.
2. Rotate the instrument so the coil plane is aligned with the magnetic meridian, as instructed by the teacher.
3. Confirm the coil terminals, number of turns and safe current range before circuit connection.
4. Connect the galvanometer coil in series with a suitable DC power source, rheostat and ammeter.
5. Switch on the circuit and adjust the current gradually using the rheostat.
6. Observe the magnetic needle deflection and record the angle carefully.
7. Repeat the observation for different current values within the confirmed safe range.
8. Use the recorded values to study tangent law or calculate the required magnetic field relationship.

Safety and handling note: do not exceed the confirmed current range, and switch off the circuit before changing connections or reversing current direction.

Care & Maintenance

• Store the instrument in a dry laboratory cabinet after use.
• Keep the compass area, scale and terminals clean for clear observations.
• Do not expose the magnetic needle to strong magnets or mechanical shock.
• Inspect terminals, coil continuity and alignment before practical examinations.

Why Choose School Equipments

School Equipments supplies scientific laboratory instruments, physics apparatus, science kits, mathematics kits, didactic models and STEM learning equipment for educational institutions. The company’s product categories include Physics, Electricity & Electromagnetism, Measuring Equipment and Electrical Accessories for school laboratory procurement. The Tangent Galvanometer supports practical electromagnetism teaching where students need to observe the effect of current on a magnetic needle. Buyers should confirm coil turns, current range, construction and accessory details before publishing or tender submission.

Frequently Asked Questions

What is a Tangent Galvanometer used for?

A Tangent Galvanometer is used to demonstrate tangent law and the magnetic field produced by current flowing through a circular coil. It is commonly used in school physics electromagnetism practicals.

Can this apparatus be used in school physics laboratories?

Yes, it is suitable for school physics labs, STEM classrooms and teacher-led electromagnetism demonstrations when used with compatible low-voltage apparatus and supervision.

What is the current range of this Tangent Galvanometer?

The current range is not specified in the supplied product data. Confirm the safe current range before publishing, quotation or tender submission.

Does the product include an ammeter or power supply?

An ammeter, power supply, rheostat and connecting leads are not specified in the supplied data. The confirmed included component is 1 Tangent Galvanometer.

Why is alignment important in a tangent galvanometer experiment?

Alignment is important because the coil and magnetic needle must be positioned correctly relative to the magnetic meridian for meaningful deflection readings.

What concepts can students learn from this instrument?

Students can learn magnetic field due to current, tangent law, compass deflection, magnetic meridian, current variation and basic electromagnetic measurement methods.
