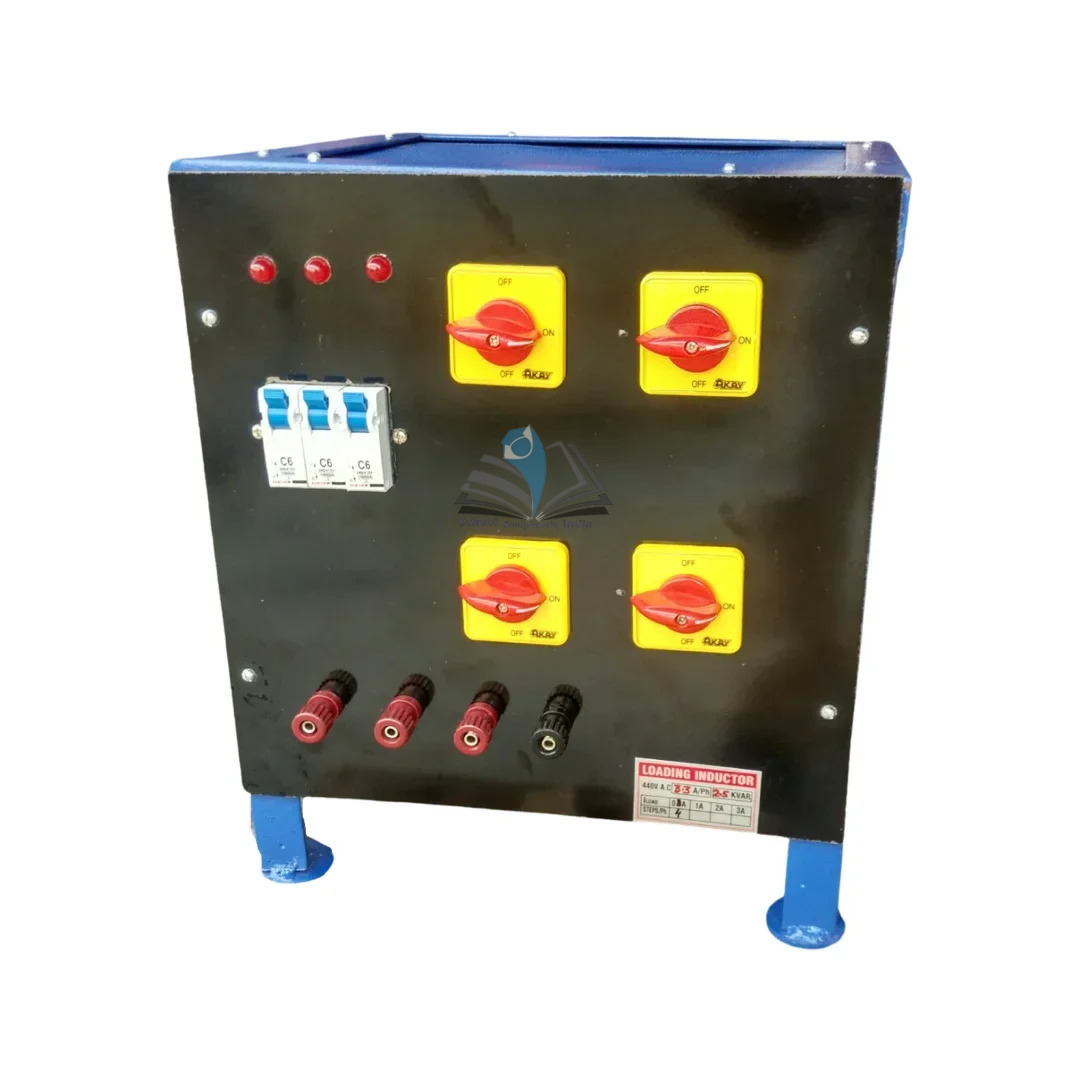

Loading Inductor 2.5KVAR Bank Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12430

The Loading Inductor 2.5KVAR Bank is an inductive load bank used for AC circuit experiments, reactive power demonstration, and power factor study in physics, electrical engineering, and TVET laboratories. It helps learners observe lagging current, inductive reactance, phase difference, and reactive load behavior in controlled practical circuits.

Product Description

The Loading Inductor 2.5KVAR Bank by School Equipments is designed for practical demonstrations where a controlled inductive load is required. It supports laboratory teaching of AC load characteristics, apparent power, real power, reactive power, and the effect of inductance on voltage-current phase relationship.

This apparatus belongs to Electricity & Electromagnetism lab equipment and is suitable for supervised use in schools, colleges, engineering laboratories, electronics training rooms, and vocational institutes. Exact voltage rating, current rating, phase type, inductance steps, switching arrangement, enclosure material, terminals, and duty cycle should be confirmed from the final manufacturer datasheet before publishing.

Key Features

• 2.5 kVAR reactive capacity: Provides a supplied inductive load capacity of 2.5 kVAR for AC laboratory demonstrations.
• Inductive AC load function: Demonstrates lagging current, inductive reactance, and phase difference in alternating-current circuits.
• Power factor training: Helps students understand how inductive loads affect power factor, apparent power, and reactive power.
• Practical meter-based study: Suitable for experiments using compatible voltmeters, ammeters, wattmeters, power factor meters, and energy meters.
• Training-lab application: Designed for physics, electrical engineering, electronics, and TVET laboratory instruction.
• Construction details: Coil material, core type, enclosure, terminals, insulation class, and switching arrangement are [confirm].
• Safety-led operation: Intended for trained supervision with rated cables, insulation, ventilation, earthing where applicable, and circuit protection.

Technical Specifications

What's Included in the Kit

• Loading Inductor 2.5KVAR Bank main unit
• Input and output terminals
• Load step switches or selector arrangement
• Operating manual or datasheet
• Test leads, connectors, or accessories

Applications / Uses

• Demonstrating inductive load behavior in AC electrical circuits
• Studying lagging current and phase difference between voltage and current
• Explaining reactive power, apparent power, and power factor
• Supporting power factor comparison experiments with compatible meters
• Training students on safe AC load testing under supervised laboratory conditions
• Using alongside the Electromagnetics Kit, Mains Coil for Dissectible Transformer, Plug-In Electricity Cost Monitor, and Solenoid Superior

How to Use the Loading Inductor 2.5KVAR Bank

1. Confirm the voltage, current, phase type, 2.5 kVAR rating, and duty cycle before connecting the apparatus.
2. Place the inductor bank on a dry, stable, and ventilated laboratory bench.
3. Connect the unit into the AC circuit according to the approved experiment diagram.
4. Connect compatible voltmeters, ammeters, wattmeters, and power factor meters as required.
5. Switch on the supply and apply the inductive load only within confirmed safe operating limits.
6. Record voltage, current, wattage, power factor, and reactive power observations.
7. Switch off the supply before changing connections, adjusting wiring, or handling terminals.

Safety note: A 2.5 kVAR inductive load bank must be used only under qualified supervision. Use rated cables, correct insulation, proper ventilation, earthing where applicable, and suitable circuit protection.

Care & Maintenance

• Keep the inductor bank clean, dry, and protected from moisture.
• Inspect terminals, switches, coil housing, wiring, and insulation before every experiment.
• Allow the unit to cool after operation before handling or storage.
• Do not exceed the confirmed voltage, current, kVAR, phase, or duty-cycle rating.

Why Choose School Equipments

School Equipments manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM training equipment. The Loading Inductor 2.5KVAR Bank is positioned for institutions that need practical AC electrical load apparatus for power factor and reactive power training. The brand supports school, college, university, and vocational buyers with educational laboratory equipment. Final ratings and supplied accessories should always be checked against the official quotation or datasheet before procurement.

Frequently Asked Questions

What is a Loading Inductor 2.5KVAR Bank used for?

A Loading Inductor 2.5KVAR Bank is used to demonstrate inductive AC load behavior, reactive power, lagging current, and power factor in electrical laboratory circuits.

What does 2.5 kVAR mean in this product?

2.5 kVAR indicates the supplied reactive power capacity of the inductive load bank. Voltage, current, phase type, and duty cycle must be confirmed separately.

Is this loading inductor suitable for school laboratories?

Yes, it is suitable for supervised school, college, engineering, and TVET laboratories when operated within confirmed electrical ratings.

Can it be used for power factor experiments?

Yes, an inductive load bank is useful for demonstrating lagging power factor and comparing real, reactive, and apparent power in AC circuits.

What instruments are used with a Loading Inductor 2.5KVAR Bank?

Compatible voltmeters, ammeters, wattmeters, power factor meters, and energy meters may be used if their ratings match the experiment circuit.

What material is used in the inductor bank?

The exact coil, core, enclosure, terminal, wiring, and insulation materials are not supplied. These details should be confirmed before final publishing or tender submission.
