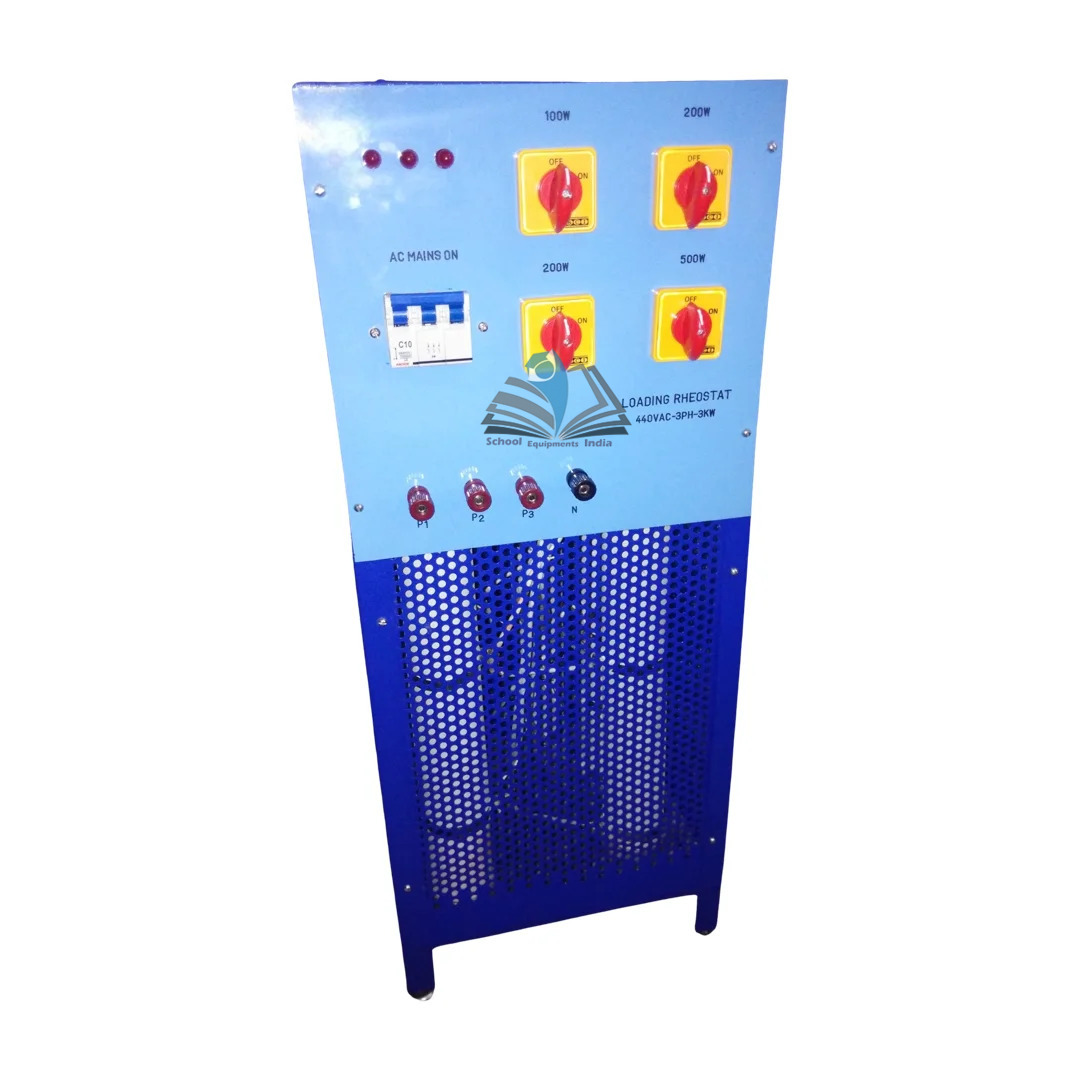

Loading Rheostat 3KW Bank Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12431

The Loading Rheostat 3KW Bank is a resistive load bank used for controlled current variation, electrical load testing, and circuit demonstrations in physics, electrical engineering, and TVET laboratories. It helps learners observe how resistance affects current, voltage drop, power dissipation, and load behavior in practical training circuits.

Product Description

The Loading Rheostat 3KW Bank by School Equipments is designed for laboratory experiments where a controllable resistive load is required. It supports demonstrations of Ohm’s law, current control, resistive loading, power consumption, and electrical machine or circuit testing under supervised conditions.

This apparatus belongs to Electricity & Electromagnetism lab equipment and is suitable for schools, colleges, engineering laboratories, electrical workshops, and vocational training institutes. Exact resistance range, voltage rating, current rating, control mechanism, enclosure material, terminal type, cooling method, and duty cycle should be confirmed from the final manufacturer datasheet before publishing.

Key Features

• 3 kW load capacity: Provides a supplied resistive load capacity of 3 kW for laboratory load testing and demonstration.
• Variable resistance function: Helps control current in a circuit by changing the effective resistance.
• Practical circuit training: Supports hands-on study of voltage, current, resistance, and power dissipation.
• Useful for electrical labs: Suitable for physics, electrical engineering, electronics, and TVET training applications.
• Meter-compatible use: Can be used with suitable voltmeters, ammeters, wattmeters, and energy meters after rating verification.
• Construction details: Resistor element, terminals, enclosure, insulation, ventilation, and switching arrangement are .
• Safety-focused operation: Intended for supervised use with rated wiring, proper insulation, ventilation, and circuit protection.

Technical Specifications

What's Included in the Kit

• Loading Rheostat 3KW Bank main unit
• Input and output terminals
• Resistance adjustment or load selection arrangement
• Operating manual or datasheet
• Test leads, connectors, or accessories

Applications / Uses

• Demonstrating current control using variable resistance
• Studying resistive load behavior in electrical circuits
• Supporting Ohm’s law, voltage drop, and power dissipation experiments
• Training students on safe load testing and meter reading practice
• Using with compatible meters and electrical panels after rating confirmation
• Supporting related experiments with the BEK Rheostat Variable, Decade Resistance Unit, Plug-In Electricity Cost Monitor, and Simple Circuit Module Mounted Variable Resistor

How to Use the Loading Rheostat 3KW Bank

1. Confirm the voltage, current, resistance range, 3 kW rating, and duty cycle before connecting the apparatus.
2. Place the rheostat bank on a dry, stable, and well-ventilated laboratory bench.
3. Connect the unit into the circuit according to the approved experiment diagram.
4. Connect compatible voltmeters, ammeters, wattmeters, or energy meters as required.
5. Set the rheostat to the safest starting position recommended in the datasheet.
6. Switch on the supply and vary the load gradually within confirmed safe limits.
7. Record readings, switch off the supply, and allow the unit to cool before handling.

Safety note: A 3 kW rheostat load bank can draw significant current and generate heat. Use rated cables, proper insulation, ventilation, circuit protection, and qualified supervision during operation.

Care & Maintenance

• Keep the rheostat bank clean, dry, and protected from dust and moisture.
• Inspect terminals, controls, wiring, insulation, and the resistor assembly before every experiment.
• Allow the apparatus to cool after high-load operation before storage or handling.
• Do not exceed the confirmed voltage, current, resistance, power, or duty-cycle rating.

Why Choose School Equipments

School Equipments manufactures and exports scientific laboratory instruments, lab experiment setups, science kits, mathematics kits, didactic models, and STEM training equipment. The Loading Rheostat 3KW Bank is positioned for institutions that need practical resistive load apparatus for electrical training and demonstration. The brand supports school, college, university, and vocational buyers with educational laboratory equipment. Final ratings and supplied accessories should always be checked against the official quotation or datasheet before procurement.

Frequently Asked Questions

What is a Loading Rheostat 3KW Bank used for?

A Loading Rheostat 3KW Bank is used for controlled resistive load testing, current variation, voltage drop study, and electrical circuit demonstrations.

What does 3 kW mean in this rheostat bank?

3 kW indicates the supplied load capacity of the rheostat bank. Voltage, current, resistance range, and duty cycle must be confirmed separately.

Is this rheostat suitable for school laboratories?

Yes, it is suitable for supervised school, college, engineering, and TVET laboratories when operated within confirmed electrical ratings.

Can it be used for Ohm’s law experiments?

Yes, a rheostat can support Ohm’s law experiments by varying resistance and observing changes in current and voltage.

What instruments are used with a Loading Rheostat 3KW Bank?

Compatible voltmeters, ammeters, wattmeters, energy meters, and circuit trainers may be used if their ratings match the experiment setup.

What material is used in the rheostat bank?

The exact resistor element, enclosure, terminal, wiring, and insulation materials are not supplied. These details should be confirmed before final publishing or tender submission.

For related apparatus, explore more Electricity & Electromagnetism lab equipment from School Equipments.
