Digital Stereo Microscope 45x Manufacturer,Supplier and Exporter in India
Product Code : EL-MA-10590
Product Description

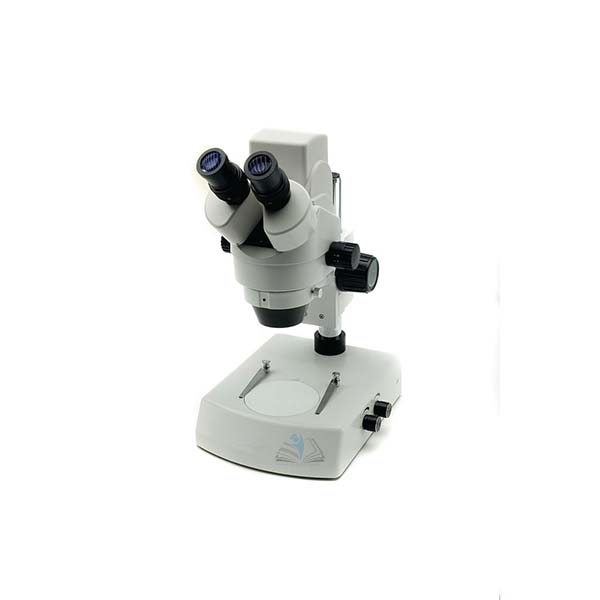

School Equipments India Digital Stereo Microscope is a fully functioning stereomicroscope with additional digital imaging capabilities.
A brilliant, robust instrument that is suitable for experienced users who want to document their investigations.
It is a highly reliable instrument with solid construction.
Accessories included:
Power Supply
1.8M USB Cable
Dust Cover
Instruction Manual
Accessories & spares available separately:
Spare Halogen Bulb : for incident illumination
Spare Halogen Bulb : for transmitted illumination
Spare Power Lead
Stage Micrometer
Alcohol-free Antiseptic Wipes - for cleaning eyepieces between use
Lens Cleaning Tissue
Microscope Maintenance Kit
Microscope Specification:
Head : Binocular, 360° rotating, 45° inclined front side eyepiece tube. Diopter adjustment on both eyepieces Interpupillary adjustment 51-75mm
Nosepiece : Turret type
Objectives : Par-focal achromatic 1x objective, with zoom range 0.7x and 4.5x. Zoom factor 6,428:1. Working distance 100mm
Stage : Black/white disc for contrast, and semi-transparent plastic for transmitted light
Focussing : Rack and pinion mechanism controlled by a pair of knobs
Illumination : Double intensity adjustable incident and transmitted illumination by halogen bulbs (12V/15W). The angle of the incident illuminator is adjustable
Voltage : External power supply 110/220V, 50/60Hz, 1A. Max. power 38W
Digital Camera Specification:
Resolution : 1280 x 1024 pixels (1.3Mpx), 5:4 aspect ratio
Pixel Size : 5.2µm x 5.2µm
Sensor : 1/3" CMOS
Output : USB 2.0 port
Imaging Area : 6.67mm x 5.33mm
Framerate : 15fps (1280 x 1024), 55fps (640 x 480), 142fps (320 x 240)
S/N Ratio : 44 dB
Dynamic Range : 71dB
Exposure Time : 15s - 1/1500s
Sensitivity : 1.0V/lux-sec (550nm)
C-Mount Lens Adapter : No
System Requirements : Windows XP, Vista, 7, 8 (32/64bit)
Capture Features : Continuous auto white balance, continuous auto exposure
