Film Reticles with Micrometer Scale Manufacturer,Supplier and Exporter in India
Product Code : EL-MA-10556
Product Description

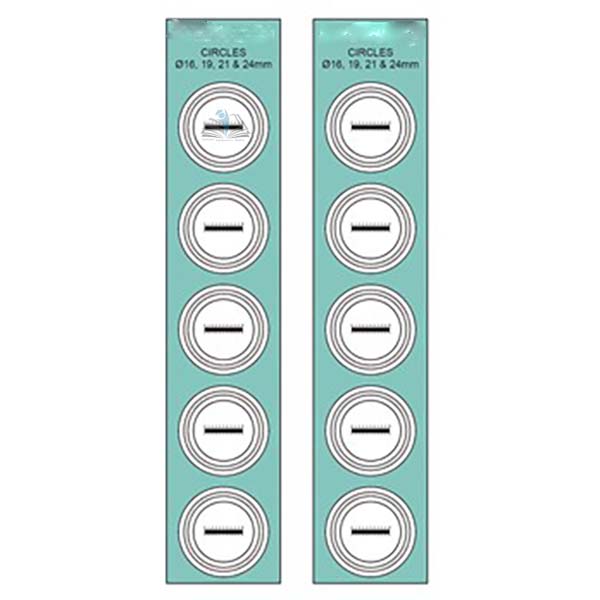

Plastic film reticle strips which consist of 5 eyepiece micrometer scales on each strip.
They can be cut out to fit the size of any microscope with an eyepiece which measures 16-24mm.
2 strips per pack including a total of 10 micrometer scales.
A cost effective alternative to buying microscope eyepieces with pre-fitted micrometers.
Micrometer Scale: 10mm length with 100 divisions of 0.1mm
Overall size: 150mm x 30mm x 0.18mm thick
Guide circles of 16mm, 19mm, 21mm and 24mm around each scale image for cutting.
How to Size a Reticle:
Remove the eyepiece from your microscope and look at the bottom (open) end.
There should be a threaded ring or plastic insert that is used to secure the reticle in place.
If your eyepiece has a plastic insert, then there should be a small recess (where the reticle sits) in the top of it and you should measure the width of that.
If your eyepiece has a threaded ring then you need to measure the diameter of the eyepiece where the threaded ring is fitted (i.e. across the internal thread of the eyepiece).
The reticle actually fits at the optical plane in the eyepiece so that its image, and that of the specimen are both in focus.
To check that you have located this plane it is easiest just to look through the eyepiece and insert a pencil up the open end until the point is in sharp focus - that is the position on the optical plane where the reticle is fitted. There should be a flange on the inside wall of the eyepiece to position the reticle up against.
