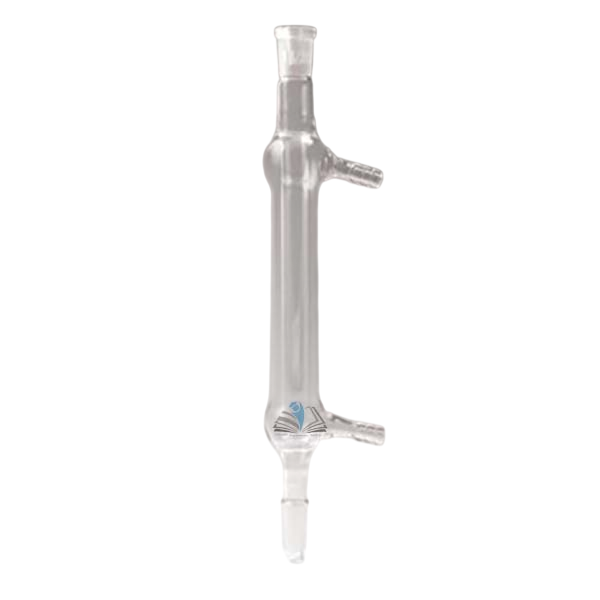

Condenser - 150mm Manufacturer,Supplier and Exporter in India
Product Code : EL-CA-11579
The Condenser 150mm is borosilicate glass laboratory condenser glassware used to cool vapour into liquid in supervised chemistry distillation and reflux assemblies. It is suitable for school chemistry labs, college laboratories, chemical analysis practicals, organic chemistry setups, distributors, and institutional procurement teams.
Product Description
Condenser 150mm from School Equipments India is listed with product. The confirmed construction is borosilicate glass with ground glass joints and screw thread connectors. The confirmed overall length is 150mm.
This condenser supports compact school and college chemistry glassware assemblies where vapour cooling is required. The confirmed cone size is 14/23, and the confirmed socket size is 14/23. The listing also states that it requires 8mm bore rubber tubing, available separately in 1m lengths. Final suitability should be checked against the complete apparatus layout, heating method, solvent, and safety procedure.
Key Features
- 150mm overall length: compact condenser size for compatible educational chemistry assemblies.
- Borosilicate glass construction: confirmed material for routine laboratory condenser use.
- Ground glass joints: supports fitting with compatible 14/23 jointed glassware.
- 14/23 cone and socket: confirmed cone size and socket size for matching apparatus connections.
- Screw thread connectors: provided for secure connection of compatible rubber tubing.
- 8mm bore tubing requirement: requires 8mm bore rubber tubing for water connection.
- Chemistry lab utility: suitable for supervised distillation, reflux, vapour cooling, and phase-change demonstrations.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
Condenser - 150mm |
|
Primary Keyword |
Condenser 150mm |
|
Secondary / Semantic Keywords |
laboratory condenser, chemistry lab condenser, borosilicate condenser, ground glass condenser, 14/23 condenser, distillation condenser, reflux condenser, school lab glassware |
|
Brand |
School Equipments India |
|
Product Category |
Chemistry / Chemical Analysis / Distillation and Reflux Glassware |
|
Intended Users |
Schools, colleges, chemistry labs, chemical analysis labs, teachers, distributors, and educational procurement buyers |
|
Overall Length |
150mm |
|
Material |
Borosilicate glass |
|
Joint Type |
Ground glass joints |
|
Socket Size |
14/23 |
|
Connectors |
Screw thread connectors |
|
Rubber Tubing Requirement |
8mm bore rubber tubing |
What's Included in the Kit
- Condenser - 150mm glassware body
- 14/23 cone connection
- 14/23 socket connection
- Screw thread connectors
Applications / Uses
- Cooling vapour into liquid during school chemistry distillation practicals
- Supporting reflux setups in supervised organic chemistry activities
- Connecting compatible 14/23 jointed glassware assemblies
- Demonstrating condensation, vapour cooling, and phase change
- Using water flow through compatible rubber tubing for heat removal
- Supplying replacement condenser glassware for educational laboratories
How to Use the Condenser 150mm
- Inspect the condenser for cracks, chips, blocked ports, or damaged joints.
- Confirm that the 14/23 cone and 14/23 socket match the connected glassware.
- Attach compatible 8mm bore rubber tubing to the screw thread connectors.
- Connect the lower water inlet to the water supply and the upper outlet to drain.
- Clamp the condenser carefully so the glassware is aligned and fully supported.
- Start gentle water flow before heating the distillation or reflux setup.
- Monitor water flow, hose security, vapour condensation, and apparatus stability.
- Allow the assembly to cool before disconnecting tubing and dismantling the apparatus.
Safety note: Use only under teacher or laboratory-supervisor control. Do not heat a sealed system, use chipped glassware, disconnect tubing during hot operation, run the condenser without water flow, or use flammable solvents without approved ventilation and risk assessment.
Care & Maintenance
- Rinse and clean the condenser after use with an approved glassware cleaning method.
- Drain water fully before storage to reduce residue and contamination risk.
- Store in a padded or separated glassware cabinet to protect the 14/23 joints.
- Reject the condenser if joints, connectors, ports, or the glass body are cracked, chipped, or leaking.
Why Choose School Equipments India
School Equipments India manufactures and exports scientific laboratory instruments, school laboratory equipment, science kits, mathematics kits, didactic models, and STEM models. The brand supplies chemistry glassware, chemical analysis equipment, and teaching-lab products for schools, colleges, distributors, and institutional buyers. For condensers, buyers should confirm tubing supply, joint compatibility, packaging, documentation, and full apparatus suitability before procurement.
Frequently Asked Questions
What is Condenser 150mm used for?
Condenser 150mm is used in chemistry laboratories to cool vapour into liquid during compatible distillation and reflux assemblies..
What material is this condenser made from?
The listed product description states that the condenser is made from borosilicate glass.
What are the joint sizes?
The confirmed cone size is 14/23, and the confirmed socket size is 14/23.
What tubing does this condenser require?
The listing states that it requires 8mm bore rubber tubing, available separately in 1m lengths. Confirm whether tubing is included before procurement.
Is this condenser suitable for school chemistry labs?
Yes. It is suitable for supervised school and college chemistry laboratories when used with compatible 14/23 glassware, correct water flow, and an approved experiment procedure.
For related chemistry glassware, explore chemical analysis equipment, glassware, plastics and ceramics, school laboratory equipment, and contact School Equipments India.
