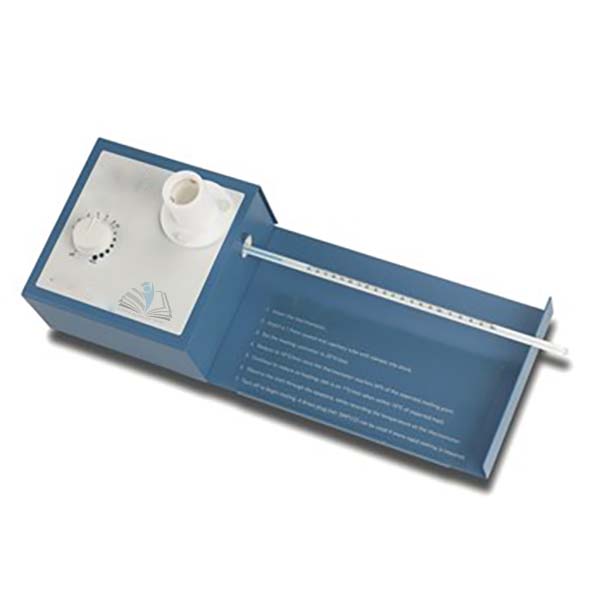

Analogue Melting Point Apparatus
Product Code : EL-ME-11398
Quick Answer: The Analogue Melting Point Apparatus measures the melting point of up to 3 samples at once in an aluminium block, with a manually set heating rate of 1 to 20°C per minute up to a maximum of 250°C.
Last updated: October 2026
Key Features
- Takes up to 3 samples at once
- Heating rate set manually between 1 and 20°C per minute
- Maximum temperature of 250°C
- Magnifying lens and integrated LED lamp for viewing samples
- Spirit-filled, mercury-free thermometer included
- Instructions printed directly on the apparatus
Technical Specifications
| Specification | Value |
|---|---|
| Samples | Up to 3 at once |
| Heating rate | 1 to 20°C per minute, set manually |
| Maximum temperature | 250°C |
| Sample block | Aluminium |
| Thermometer | Spirit filled, mercury free |
About This Product
Samples are placed in capillary tubes and inserted into the aluminium block, then watched through the magnifying lens under the LED lamp while the temperature is read on the thermometer. There is no complicated programming. The capillary tubes supplied are open ended, and one end should be sealed using a Bunsen burner before use. Export supply of the Analogue Melting Point Apparatus can be arranged to laboratories and schools in Niger, Croatia, Lesotho, Moldova and Montenegro.
Frequently Asked Questions
Q1. Do the supplied capillary tubes need preparing?
Yes. They are open ended, so one end should be sealed using a Bunsen burner before use.
Related: Measuring Equipment, Glass Melting Point Capillary Tubes One End Closed, Electronic Digital Caliper.
For a quotation on the Analogue Melting Point Apparatus, contact School Equipments India.
