Basic Student Meter
Product Code : EL-EE-10895
Quick Answer: The Basic Student Meter is a moving coil analogue meter with a 1000 ohm movement and two scales, which becomes a dual or triple range ammeter or voltmeter when a shunt or multiplier is added.
Last updated: October 2026
Key Features
- Moving coil movement of 1000 ohm, scale length 74 mm
- Two scales: 2-0-10 and 1-0-5
- Full scale deflection 20-0-100 mV, 20-0-100 µA; accuracy ±2% of f.s.d.
- Diode-protected movement tolerates overloads of at least 12 V d.c.
- Shunts and multipliers, not included, extend it to a.c. and d.c. ranges
- Centre-zero version available, taking the same accessories
Technical Specifications
| Specification | Value |
|---|---|
| Movement | Moving coil, 1000 ohm |
| Scales | 2-0-10 and 1-0-5 |
| Scale length | 74 mm |
| Full scale deflection | 20-0-100 mV, 20-0-100 µA |
| Accuracy | ±2% of f.s.d. |
| Overload protection | Diode, at least 12 V d.c. |
| Mass | 0.37 kg |
| Dimensions | 150 mm x 100 mm x 70 mm |
About This Product

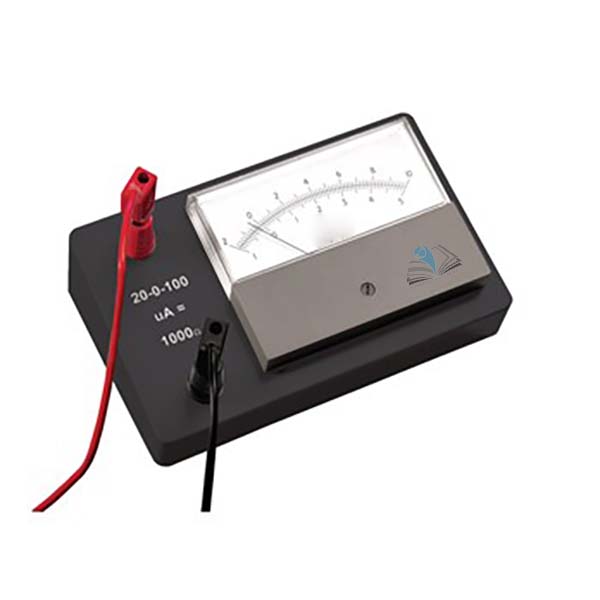

On its own, the meter reads on two scales with a full scale deflection of 20-0-100 mV or 20-0-100 µA. Fitting one of the separately available shunts or multipliers turns it into a dual or triple range ammeter or voltmeter, so a large range of a.c. and d.c. currents and voltages can be measured. Diode protection is built into the movement.
Frequently Asked Questions
Q1. Which shunts and multipliers can be used with it?
The range includes 1A/5A, 2A/10A, 1mA/10mA and dual 3.5mA d.c. shunts, 10/50/100mA and 1/5/10A a.c. units, and 5V/10V and 1V/5V d.c. multimeter units. They are not included with the meter.
Q2. Is there a centre-zero version?
Yes. A centre-zero version of this meter, which takes the same range of accessories, is also available.
Related: Electricity & Electromagnetism, BEK Mounted LED White, Axial and Lateral Search Coils.
For a quotation on the Basic Student Meter, contact School Equipments India.
