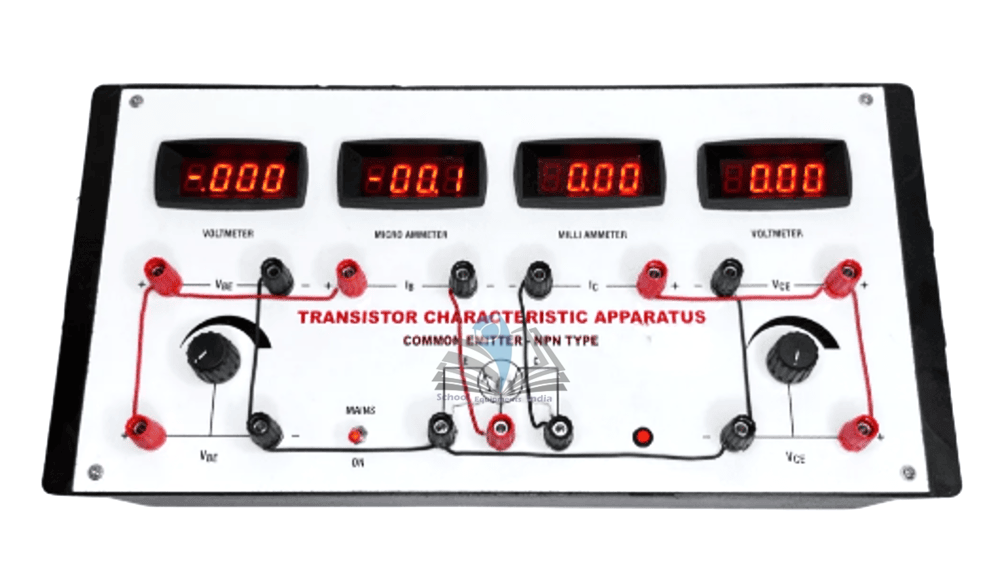

Digital Transistor Characteristics Apparatus
.png)
Product Code : SCL-EE-12443
Quick Answer: The Digital Transistor Characteristics Apparatus is an electronics trainer for plotting transistor input and output characteristics and studying how base current controls collector current.
Last updated: October 2026
Key Features
- Supports study of transistor input and output characteristics
- Output curves plotted at different base-current values
- Demonstrates the current gain between base and collector current
- Covers active, saturation and cut-off operating regions
About This Product
Students connect the circuit to the approved transistor experiment diagram, set the base and collector controls and record readings as the settings change. The resulting curves support semiconductor lessons on biasing and current amplification in physics, electronics and electrical engineering practicals. The Digital Transistor Characteristics Apparatus is available for supply within India and for export to Benin, Belgium, Cyprus, Uganda and Timor-Leste.
Frequently Asked Questions
Q1. Which quantities are recorded?
Base current, collector current, base-emitter voltage and collector-emitter voltage, which are used to plot the input and output characteristic curves.
Related: Electricity & Electromagnetism, Digital Zener Diode Apparatus, Logic Gate Apparatus.
For a quotation on the Digital Transistor Characteristics Apparatus, contact School Equipments India.
