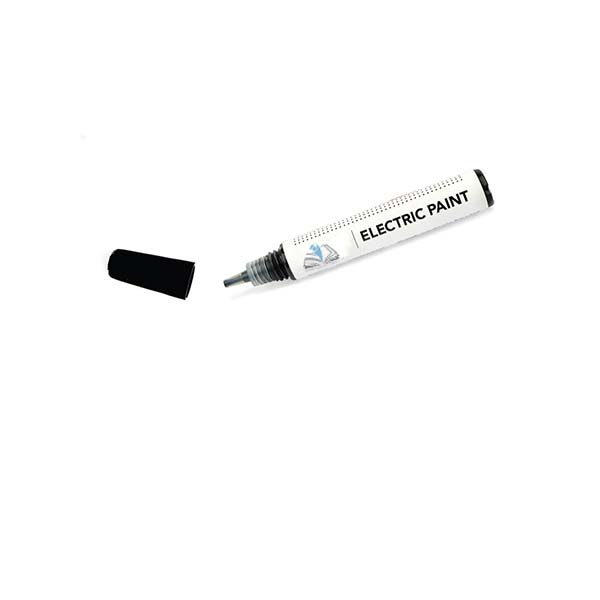

Electric Paint
Product Code : EL-EE-10911
Quick Answer: The Electric Paint is a black, water-based, electrically conductive paint that works as a liquid wire, conductive adhesive or cold solder, and dries at room temperature in 10-15 minutes.
Last updated: October 2026
Key Features
- Non-toxic, water-based and water-soluble conductive paint
- Works as a liquid wire and as a conductive adhesive or cold solder
- Adheres to paper, plastic, textiles and wood; removed with soap and water
- Applied by paintbrush, stencilling or screen-printing
- Dries at room temperature in 10-15 minutes
- One tube covers up to 0.5 m²
Technical Specifications
| Specification | Value |
|---|---|
| Colour | Black |
| Density | 1.16 g/ml |
| Sheet resistance | 55 ohm/sq at 50 micron film thickness; approx. 32 ohm/sq by paintbrush |
| Viscosity | Highly viscous, shear sensitive |
| Drying time | 10-15 minutes at room temperature |
| Coverage | Up to 0.5 m² per tube |
About This Product
The paint adheres to non-conductive, non-hydrophobic materials, so circuits can be painted onto paper, plastic, textiles or wood and washed off later with soap and water. For permanent work it can be sealed with acrylic paint or spray varnish. It is not recommended for electrical sources above 12 V. Children under 12 must be supervised by an adult, and gloves are advised because the paint may stain. Export supply of the Electric Paint can be arranged to laboratories and schools in Namibia, Somalia, Eswatini, Seychelles, Uganda and Paraguay.
Frequently Asked Questions
Q1. Can Electric Paint be made permanent?
Yes. It can be sealed using acrylic paint or spray varnish, and it can be over-painted with any material compatible with a water-based paint.
Q2. What voltage can it be used with?
It is not recommended for use with electrical sources exceeding 12 V.
Related: Electricity & Electromagnetism, Conductive Thread, 5 LED Mixed Colour Pack.
For a quotation on the Electric Paint, contact School Equipments India.
