LED Characteristics Apparatus Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12339

The LED Characteristics Apparatus is a physics and electronics laboratory instrument used for studying the voltage-current characteristics of a light emitting diode. It is suitable for schools, colleges, STEM labs, and electronics practical sessions where students need to observe forward bias behaviour, threshold voltage, and diode conduction experimentally.

Product Description

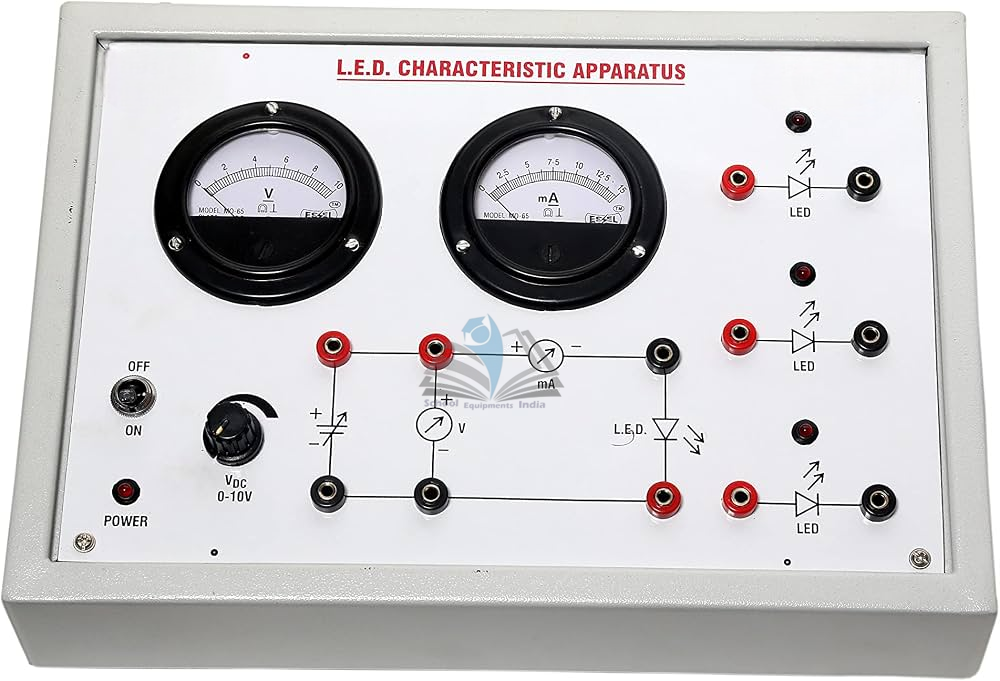

The School Equipments LED Characteristics Apparatus helps students plot the V-I characteristic curve of an LED under controlled laboratory conditions. It is used to demonstrate how an LED behaves as a semiconductor diode and how current changes after the forward voltage reaches the conduction region.

This apparatus is valuable for physics and electronics teaching because it converts semiconductor theory into a measurable practical experiment. Students can vary voltage, observe current, record readings, and understand the relationship between applied potential difference and light emission. The exact voltage range, current range, meter type, LED colour, power supply details, and accessories should be confirmed before publishing or procurement.

For related teaching equipment, explore our physics laboratory equipment, electricity and electromagnetism apparatus, Alpha Electronics Physics Students Kit, and LED Laser apparatus.

Key Features

• Designed for studying LED voltage-current characteristics in school physics laboratories.
• Supports experiments on forward bias, threshold voltage, diode conduction, and semiconductor behaviour.
• Useful for plotting the V-I curve of an LED through practical student readings.
• Suitable for electronics practicals, STEM learning, and teacher-led demonstrations.
• Simple circuit-based operation helps students connect theory with measured results.
• Can support repeated classroom use when handled within the confirmed rated range.
• Voltage range, current range, LED colour, meter type, and power source must be confirmed as per supplied model.

Technical Specifications

What's Included in the Kit

• 1 LED Characteristics Apparatus main unit
• LED experiment section or LED holder
• Voltage and current measurement arrangement
• Connecting leads or terminals
• Instruction manual or experiment guide

Applications / Uses

• Plotting the V-I characteristic curve of a light emitting diode.
• Demonstrating forward bias operation of an LED.
• Observing threshold voltage and conduction behaviour.
• Teaching semiconductor diode principles in physics and electronics labs.
• Comparing theoretical diode behaviour with recorded laboratory readings.
• Supporting school practical files, STEM demonstrations, and electronics training sessions.

How to Use the LED Characteristics Apparatus

1. Place the apparatus on a clean, dry, and stable laboratory table.
2. Check the LED section, terminals, meters, and power input before switching on.
3. Connect the circuit as per the supplied experiment guide.
4. Apply a low initial voltage and increase it gradually within the confirmed range.
5. Record the corresponding current reading for each voltage value.
6. Observe the point where the LED begins to conduct and emit light.
7. Plot voltage on the X-axis and current on the Y-axis to obtain the LED V-I curve.
8. Switch off the apparatus after completing the readings.

Safety note: Do not exceed the confirmed voltage or current rating. Incorrect polarity, sudden overvoltage, or loose connections can damage the LED and affect experiment results.

Care & Maintenance

• Store the apparatus in a dry laboratory cabinet when not in use.
• Keep terminals, leads, and meter faces clean and free from dust.
• Do not apply voltage beyond the confirmed rating of the LED circuit.
• Inspect connecting leads and terminals before each practical session.

Why Choose School Equipments

School Equipments manufactures and exports scientific laboratory instruments, physics apparatus, science kits, mathematics kits, STEM models, and didactic teaching aids for educational institutions. The brand supports school and college laboratories with practical teaching equipment for hands-on experiments. The LED Characteristics Apparatus is intended for clear, measurable electronics practicals in physics labs. Buyers should confirm the exact technical configuration before final order approval.
