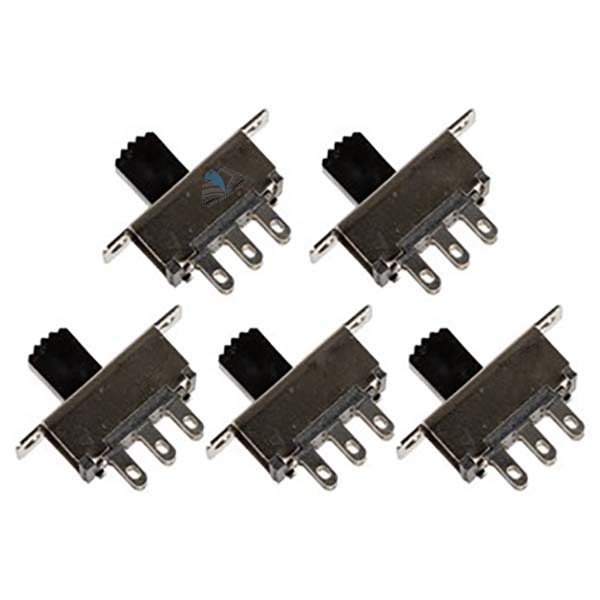

Slide Switch
Product Code : EL-EE-10871
Quick Answer: The Slide Switch is a miniature double pole, double throw switch for panel mounting, with solder-tag connections and a maximum rating of 250 V a.c., 0.25 A.
Last updated: October 2026
Key Features
- Double pole, double throw slide action
- Made for panel mounting, with fixing centres of 19 mm
- Solder tags for the connections
- Body size 15 mm x 8 mm x 7 mm
- Maximum rating 250 V a.c., 0.25 A
Technical Specifications
| Specification | Value |
|---|---|
| Switch type | Slide switch |
| Poles and throws | Double pole, double throw |
| Body dimensions | 15 mm x 8 mm x 7 mm |
| Fixing centres | 19 mm |
| Maximum rating | 250 V a.c., 0.25 A |
About This Product
Having two poles with two throw positions each, one movement of the slider changes over two separate circuits together. The switch is designed for panel mounting on fixing centres 19 mm apart, and connections are by solder tags. Export supply of the Slide Switch can be arranged to laboratories and schools in Vietnam, Guinea-Bissau, Botswana, Chile, South Africa and Belize.
Frequently Asked Questions
Q1. What does double pole double throw mean here?
The switch has two poles, and each can connect to either of two positions, so one slide changes over two circuits at the same time.
Related: Electricity & Electromagnetism, Digital Milliammeter - 0 to 199.9mA d.c., Simple Circuit Module Input Board LDR.
For a quotation on the Slide Switch, contact School Equipments India.
