Block Calorimeter - Copper Manufacturer,Supplier and Exporter in India
Product Code : EL-E-11022
Product Description

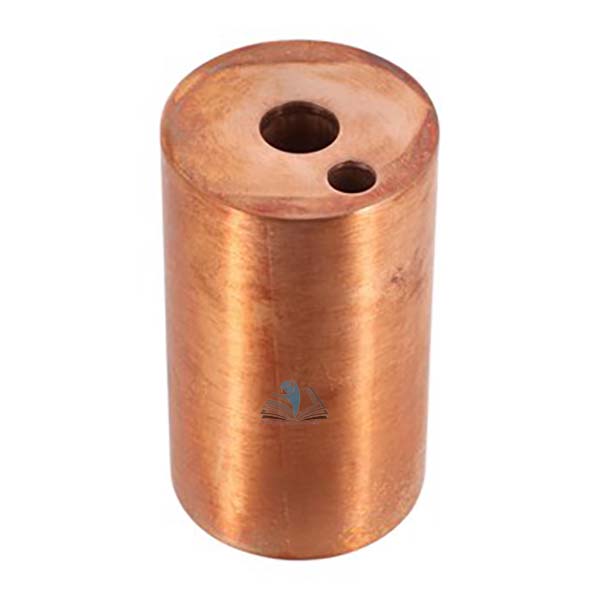

This Copper Block Calorimeter can be used for the experimental determination of the specific heat capacity of copper.
The block is drilled with two holes: a large central hole, 12.5mm diameter for an immersion heater, and a smaller hole,
7.5mm diameter to suit a thermometer or temperature sensor.
Thermometer Hole Dimensions: 7.5mm diameter, 72mm depth
Immersion Heater Hole Dimensions: 12.5mm diameter, 75mm depth
Alternative Block Calorimeters are available:
Mild Steel
Brass
Aluminium
Calorimeter Bundle (1 each of Copper, mild Steel, Brass, Aluminium)
Associated Products:
Thermometers
Calorimeter Jackets
Immersion Heater
Further Information
|
Accuracy |
±2% |
|
Curriculum Link |
Specific Heat Capacity |
|
Diameter |
44mm |
|
Immersion Heater Hole
Dimenisons |
12.5mm diameter
75mm depth |
|
Mass |
1kg |
|
Material |
Copper |
|
Product Type |
Metal Block Calorimeter |
|
Specific Heat Capacity |
408J/kg/K |
|
Thermometer Hole Dimensions |
7.5mm diameter
72mm depth |
