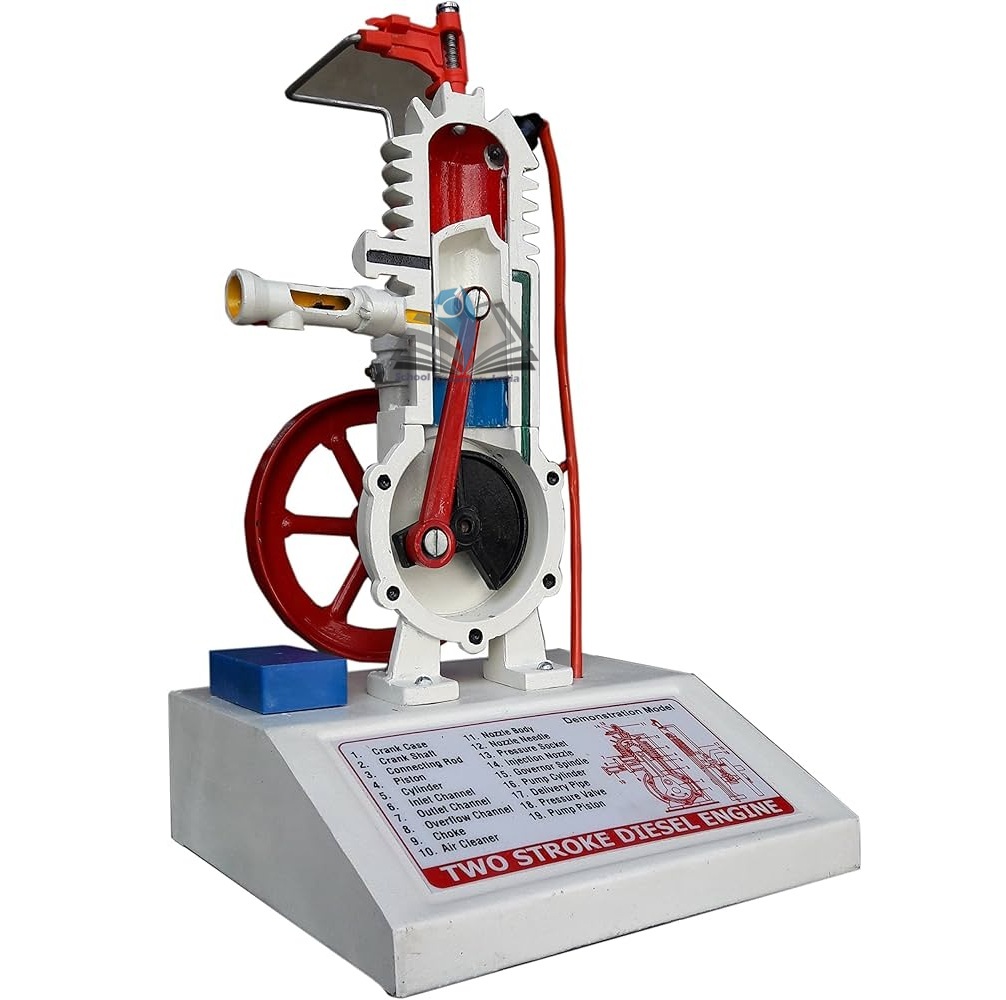

Quick Answer: The Two Stroke Diesel Engine Model is an educational model that demonstrates how a two-stroke diesel engine works, covering compression, fuel ignition, the power stroke, exhaust flow and piston movement.
Last updated: October 2026
Key Features
Explains how a diesel engine completes its operating cycle in two piston strokes.
Shows piston movement, crankshaft rotation, compression and the power stroke.
Supports teaching of compression ignition and diesel engine principles.
Used to explain the functions of the piston, connecting rod, crankshaft, ports and cylinder.
Helps students compare two-stroke and four-stroke engine operation.
About This Product
Teachers use the model to explain how air is compressed in the cylinder, how fuel ignition produces expanding gases that drive the piston downward, and how exhaust gases leave as fresh air enters for the next cycle. It also illustrates the transfer of energy from expanding gases to mechanical motion. The model is meant for educational demonstration only, in physics, energy transfer, thermodynamics, automobile engineering and vocational training classes.
Frequently Asked Questions
Q1. Which stages of the engine cycle can be explained with the model? The compression, ignition, power and exhaust stages, together with piston movement, crankshaft rotation and the entry of fresh air for the next cycle.
