Pencil Jockey Manufacturer,Supplier and Exporter in India
.jpg)
Product Code : SCL-MF-12375
The Pencil Jockey is a physics laboratory accessory used as a sliding contact for potentiometer and Wheatstone Bridge experiments. It is designed for school physics labs, college practical rooms, STEM classrooms, and teacher-led electricity experiments where students need controlled contact with a resistance wire.
Product Description

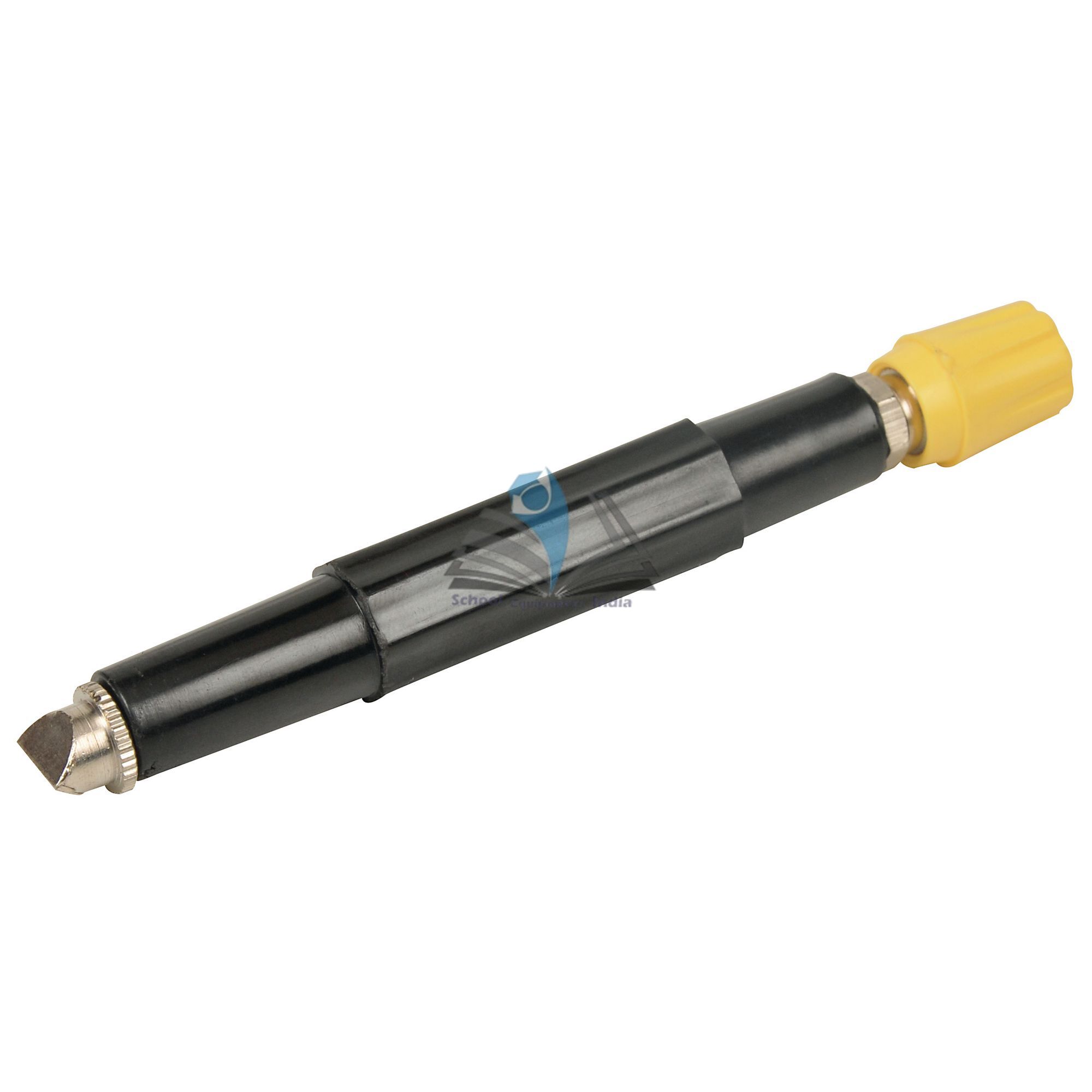

The Pencil Jockey by School Equipments is used to make temporary electrical contact with a potentiometer wire or bridge wire during practical experiments. The verified related jockey design includes a moulded ribbed insulating handle, plated-brass contact with locating notch, plated-brass terminal, and 4mm socket.
This accessory supports experiments where students locate a balance point, compare potential differences, determine unknown resistance, or work with a Wheatstone Bridge arrangement. The live related School Equipments jockey page confirms dimensions of 95mm x 15mm; confirm whether the same dimensions apply to the final Pencil Jockey listing before publication.
Key Features
- Designed for potentiometer and Wheatstone Bridge practical work.
- Provides sliding contact on resistance wire during null-point experiments.
- Moulded ribbed insulating handle supports controlled classroom handling.
- Plated-brass contact with locating notch supports stable wire contact.
- Plated-brass terminal with 4mm socket supports standard lab lead connection.
- Verified related jockey dimensions: 95mm x 15mm.
- Suitable for school, college, STEM, and teacher-training laboratories.
Technical Specifications
|
Specification |
Detail |
|
Product Name |
Pencil Jockey |
|
Brand |
School Equipments |
|
Product Category |
Physics Laboratory Equipment / Electricity and Electromagnetism Apparatus / Potentiometer and Bridge Accessory |
|
Primary Keyword |
Pencil Jockey |
|
Secondary Keywords |
jockey for potentiometer, Wheatstone Bridge jockey, potentiometer sliding contact, physics lab jockey, bridge wire contact, 4mm socket jockey |
|
Intended Users |
Schools, colleges, physics teachers, STEM labs, electronics classrooms, and student practical groups |
|
Use / Capacity |
Sliding contact for potentiometer and Wheatstone Bridge wire experiments |
|
Dimensions |
95mm x 15mm for related verified Jockey page; confirm for Pencil Jockey |
|
Handle |
Moulded ribbed insulating handle |
|
Contact |
Plated-brass contact with locating notch |
|
Terminal |
Plated-brass terminal with 4mm socket |
|
Standards / Certifications |
Not specified; verify before publishing |
What's Included in the Kit
- Pencil Jockey main unit
- Insulating handle with contact point
- 4mm socket terminal
- Protective packing
- Instruction sheet
- Making sliding contact on a potentiometer wire.
- Locating the balance point in potentiometer experiments.
- Using with Wheatstone Bridge apparatus for resistance measurement.
- Supporting null-deflection experiments with a galvanometer.
- Comparing EMF or potential difference in school physics practicals.
- Teaching accurate contact technique on resistance wires.
How to Use the Pencil Jockey
- Connect the Pencil Jockey to the circuit using a compatible 4mm plug lead.
- Place the contact tip gently on the potentiometer or bridge wire.
- Slide the jockey along the wire without pressing heavily.
- Observe the connected galvanometer or meter for null deflection or balance condition.
- Mark or record the wire length at the balance point.
- Lift the jockey before changing circuit connections.
- Repeat readings carefully to improve experimental reliability.
Safety note: use only low-voltage laboratory circuits, avoid scraping the resistance wire, and never press the contact hard enough to damage the wire scale.
Care & Maintenance
- Keep the contact point clean and free from corrosion.
- Store the jockey in a dry box after use.
- Do not bend or file the contact tip unless maintenance is approved.
- Check the 4mm socket and contact alignment before each practical session.
Why Choose School Equipments
School Equipments supplies physics laboratory apparatus, electricity accessories, potentiometer equipment, bridge apparatus, science kits, and STEM teaching aids for educational institutions. The Pencil Jockey is intended for hands-on current electricity experiments where students need reliable sliding contact on a resistance wire. School Equipments supports school, college, and export requirements with education-focused laboratory products. Product-specific naming, dimensions, packing, and supplied accessories should be verified before final quotation or publication.
Frequently Asked Questions
What is a Pencil Jockey used for?
A Pencil Jockey is used as a sliding contact on potentiometer and Wheatstone Bridge wires during physics experiments.
Is this jockey suitable for school physics laboratories?
Yes. It is suitable for school physics labs, college practical rooms, STEM classrooms, and teacher-led current electricity experiments.
What is the function of the 4mm socket?
The 4mm socket allows the jockey to connect with standard laboratory plug leads in potentiometer and bridge circuits.
Can it be used with a one-metre potentiometer?
Yes. A jockey is commonly used with a one-metre potentiometer to locate the balance point on the resistance wire.
What material is the contact made from?
The verified related School Equipments jockey page describes a plated-brass contact with a locating notch. Confirm this for the final Pencil Jockey listing.
What category should this product be listed under?
This product should be listed under physics laboratory equipment, electricity and electromagnetism apparatus, potentiometer accessories, and Wheatstone Bridge accessories.
For related electricity products, explore Electricity and Electromagnetism Apparatus, Jockey, Potentiometer One Metre - Single Wire, Wheatstone Bridge, and Investigating Resistivity Apparatus from School Equipments.
Suggested Image ALT Text: Pencil Jockey for school physics potentiometer and Wheatstone Bridge experiments
