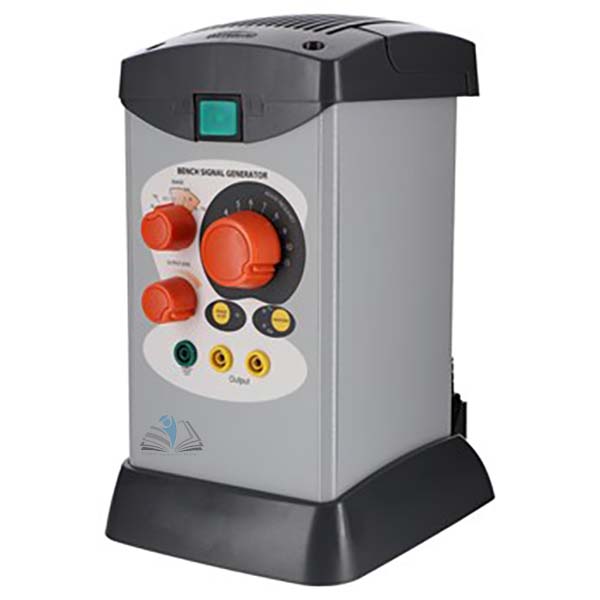

Bench Signal Generator
Product Code : EL-W-11176
Quick Answer: The Bench Signal Generator produces sine or square waves from 10 Hz to 110 kHz, with output continuously variable up to 2V rms open circuit and a built-in speaker for an audible signal.
Last updated: October 2026
Key Features
- 10 Hz to 110 kHz in four decade ranges, with a calibrated tuning dial for fine setting
- Sine or square waveform chosen by membrane switch, with LED indication
- Sine wave distortion 0.5% typical; square wave rise time better than 0.25 µs
- Continuously variable, uncalibrated amplitude control up to 2V rms open circuit
- Built-in speaker, switch-selected with LED indicator
- Floating output with separate Earth terminal
Technical Specifications
| Specification | Value |
|---|---|
| Frequency range | 10 Hz to 110 kHz, four decade ranges |
| Waveforms | Sine or square |
| Sine wave distortion | 0.5% typical |
| Square wave rise time | Better than 0.25 µs |
| Output | 0-2V rms (5.6V peak to peak) open circuit |
| Mains switch | Rocker switch with indicator light |
| Dimensions (WxDxH) | 175 x 190 x 298 mm |
| Mass | 3.1 kg |
About This Product
A basic instrument for general laboratory signal investigations. Coarse frequency is set with a rotary switch spanning four decades and fine frequency with the calibrated dial, while the output level is turned up continuously to the 2V rms maximum. It is not suitable for driving a loudspeaker or the Vibration Generator, though with a Power Amplifier it can drive the Vibration Generator where a Power Signal Generator is unavailable. Export supply of the Bench Signal Generator can be arranged to laboratories and schools in Central African Republic, South Sudan, Jamaica, Albania and Tajikistan.
Frequently Asked Questions
Q1. Can the Bench Signal Generator drive the Vibration Generator?
Not on its own. It is not suitable for driving a loudspeaker or the Vibration Generator, but used alongside a Power Amplifier it can drive the Vibration Generator where a Power Signal Generator is unavailable.
Q2. How is the output frequency set?
A rotary switch selects one of four decade ranges for coarse control, and a calibrated tuning dial gives fine frequency setting.
Related: Waves, LED modulator, Speed of Sound Kit.
For a quotation on the Bench Signal Generator, contact School Equipments India.
