Comprehensive Fibre Optics Kit
Product Code : EL-W-11123
Quick Answer: The Comprehensive Fibre Optics Kit comprises a transmitter, a receiver and a 25 m length of plastic optical fibre for investigating the basic properties of optical fibres, speed of light determination and communication demonstrations.
Last updated: October 2026
Key Features

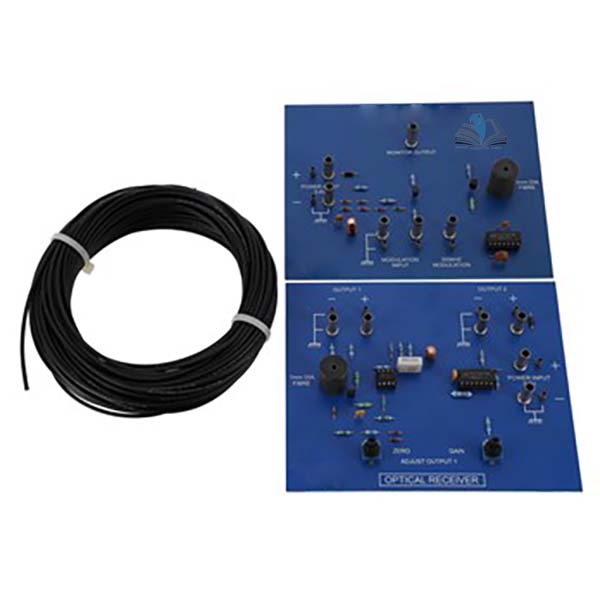

- Transmitter and receiver built onto 120 mm x 150 mm P.C. boards
- 25 m of optical fibre, 20 m of it for speed of light and long distance communication work
- Plastic fibre cut to length with a sharp knife, with no special terminating devices
- High intensity red LED source, output at 630 nm
- Internal 300 kHz modulation or external modulation, TTL compatible
- Push-in connection for 1 mm fibres; 2 mm and 4 mm electrical sockets
Technical Specifications
| Specification | Value |
|---|---|
| Light source | High intensity red LED, 630nm |
| Internal modulation | 300kHz oscillator |
| External modulation range | d.c. to greater than 300kHz, TTL compatible |
| Receiver output 1 | d.c. to greater than 5kHz |
| Receiver output 2 | 0 to 5V digital, below 20Hz to above 300kHz |
| Power requirements | 5 to 6V smooth d.c., reverse polarity protected |
About This Product
The transmitter's internal 300 kHz oscillator is normally used for the speed of light experiment, while external signals of 0 to 2 V d.c. linear or up to 5 V digital can also modulate it. Its 0 to 2.5 V monitor output connects to an oscilloscope or measures the LED operating current. At the receiver, a solid state photo-detector feeds an analogue output with zero-set and gain controls and a high speed digital output. The Comprehensive Fibre Optics Kit is available for supply within India and for export to Angola, Uzbekistan, Kiribati, Republic of the Congo, Zimbabwe and Bangladesh.
Frequently Asked Questions
Q1. Does the fibre need special connectors?
No. The plastic fibre can be cut to any desired length with a sharp knife and needs no special terminating devices; it uses simple push-in connections for 1 mm fibres.
Q2. Can the transmitter and receiver share a power supply?
Yes. Both need 5 to 6 V smooth d.c. and may share the same power supply if desired.
Related: Waves, Audio Signal Generator.
For a quotation on the Comprehensive Fibre Optics Kit, contact School Equipments India.
