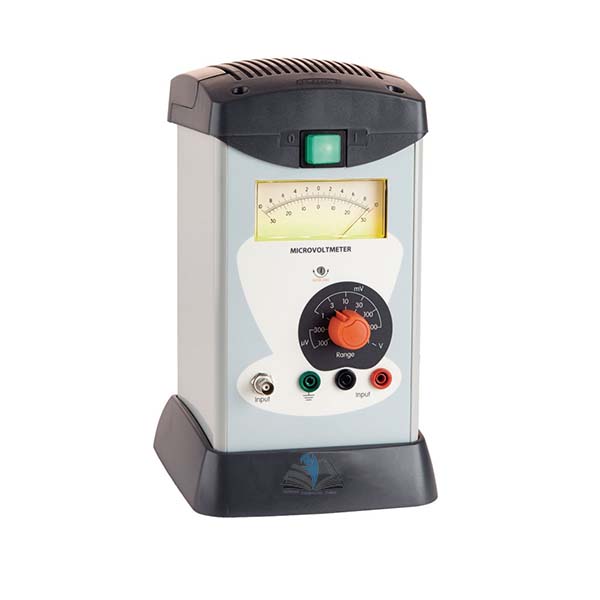

Quick Answer: The Microvoltmeter is a replacement for a centre-zero galvanometer, with a large illuminated centre-zero meter, auto-zero and 9 ranges from 100µV to 1V.
Last updated: October 2026
Key Features
9 ranges from 100µV to 1V
Large illuminated centre-zero moving coil meter
Auto-zero facility
Input via 4mm shrouded sockets or BNC connector for screened leads
Cable retainer with winding hooks and clip for the mains cord
Technical Specifications
Specification
Value
Ranges
9, from 100µV to 1V
Input resistance
10MΩ/V on the 100µV range
Maximum input
1V 1mA
Fuse
F50mA
Ratings
230V ac 50Hz 12VA
Temperature range
10 - 40°C
Humidity
10 - 90 %RH
Dimensions
175 x 190 x 298mm (W x D x H)
Mass
2.7kg
About This Product
The meter is built for measuring very small voltages. Suggested uses include the emf of thermocouples, strain gauges and Hall effect devices, and electromagnetic induction measurements. Because the meter reads either side of zero, the direction of an induced emf is easy to see. Depth rises to 206mm including the cable clips. The Microvoltmeter is available for supply within India and for export to Bulgaria, Brunei, Gabon, Egypt, Somalia and South Korea.
Frequently Asked Questions
Q1. Why use a microvoltmeter instead of a galvanometer? It replaces a centre-zero galvanometer with switchable ranges down to 100µV and an auto-zero facility, which makes small emf readings easier to take.
