Picoammeter Manufacturer,Supplier and Exporter in India
Product Code : EL-PS-10359
School Equipments India is a leading Picoammeter Manufacturer,and suppliers in India, Picoammeter Manufacturer,and suppliers in South Africa, Picoammeter Algeria (Algiers), Picoammeter Angola (Luanda), Picoammeter Argentina (Buenos Aires), Picoammeter Armenia (Yerevan), Picoammeter Australia (Canberra), Picoammeter Austria (Vienna), Bahrain (Manama), Bangladesh (Dhaka), Bhutan (Thimphu), Bolivia (Sucre), Botswana (Gaborone), Brazil (Brasília), Brunei (Bandar Seri Begawan), Montenegro (Podgorica), Morocco (Rabat), Mozambique (Maputo), Myanmar (Naypyidaw), Namibia (Windhoek), Nepal (Kathmandu), New Zealand (Wellington), Nigeria (Abuja), Oman (Muscat), Palestine (Ramallah), Panama (Panama City), Papua New Guinea (Port Moresby), Paraguay (Asunción), Peru (Lima), Philippines (Manila)¸ Portugal (Lisbon), Qatar (Doha), Rwanda (Kigali), Saudi Arabia (Riyadh), Senegal (Dakar), Serbia (Belgrade), Sierra Leone (Freetown), Slovakia (Bratislava), South Africa (Cape Town) (Pretoria) (Bloemfontein), South Sudan (Juba), Spain (Madrid), Sri Lanka (Sri Jayawardenepura Kotte) (Colombo), Sudan (Khartoum), Syria (Damascus), Tanzania (Dodoma), Thailand (Bangkok), Togo (Lomé), Tonga (Nuku'alofa), Trinidad and Tobago (Port of Spain), Tunisia (Tunis), Turkey (Ankara), Turkmenistan (Ashgabat), Uganda (Kampala), United Arab Emirates (Abu Dhabi), United Kingdom (London), United States (Washington, D.C.).
Product Description

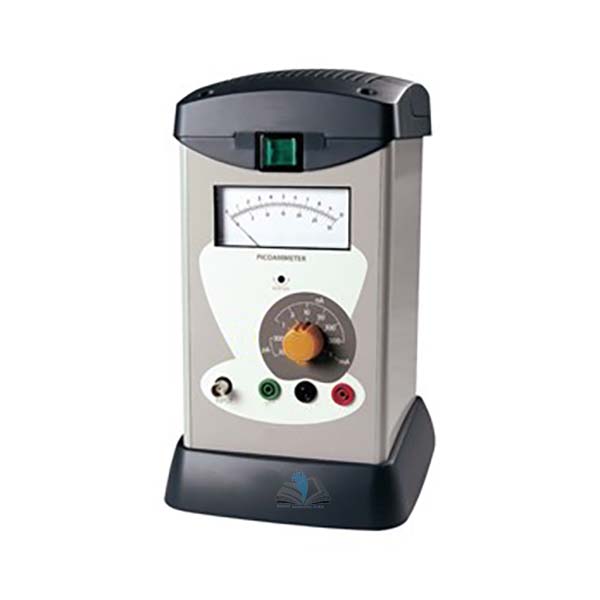

The Picoammeter is designed to measure very small currents and has 9 ranges from 100pA to 1µA, which can be selected using the rotary switch on the front of the instrument.
The instrument has a large moving coil meter, with an auto-zero facility.
Input is by way of 4mm sockets, or a BNC socket for very low currents where a screened lead is preferred.
Voltages up to 5kV will not damage the unit.
The mains cord is kept tidy, by means of the cable retainer on the back of the unit which allows the cable to be stowed away neatly with the use of winding hooks and a clip to secure the cable.
Suggested uses include: measurement of ionisation currents, reverse currents of silicon diodes, resistivity of insulators, capacity leakage of currents and more.
Large illuminated analogue meter
Detects current as small as pA
Auto-zero facility
This device is compliant with certificates available on request
Input Resistance of 10MO and maximum voltage input of 5kV
Input via 4mm shrouded sockets or BNC connector for screened leads
Dimensions:
Width : 175mm.
Depth : 190mm (including cable clips: 206mm)
Height: 298mm
Mass : 2.7kg.
Product Information
Fuse F50mA
Humidity (%RH) 10 - 70
Input impedance (MO) 10
Maximum input 5kV 1µA
Maximum Voltage 5kV
Meter Type Picoammeter
Product Type Meters
Ratings 230V ac 50Hz 12VA
Temperature Range (°C) 10 - 40
