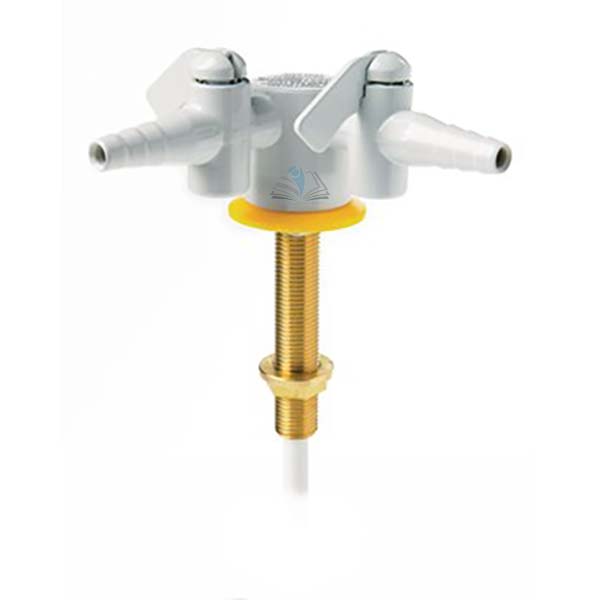

Drop Lever Gas Tap - Two way 180 degrees - Bench Mounted
Product Code : EL-T-10387
Quick Answer: The Drop Lever Gas Tap - Two way 180 degrees - Bench Mounted is a two-way brass gas tap whose drop lever gives clear on/off indication, supplied with all fittings for bench mounting.
Last updated: October 2026
Key Features
Two-way, 180 degrees
Drop lever for clear on/off indication
Fixed serrated nozzles for 8 mm to 13 mm ID rubber hose
Brass plug cocks with grease suitable for natural gas and LPG
Flange diameter 39mm
Technical Specifications
Specification
Value
Outlet connections
Fixed serrated nozzles, 8 mm to 13 mm ID rubber hose
Inlet connection
1/4" BSP male threaded shank, 65 mm long
Construction
Brass plug cocks, grease suitable for Natural Gas and LPG
Flange diameter
39mm
Supply pressure
1.5 kPa to 5 kPa
About This Product
The tap mounts on a bench or other horizontal surface using the fittings supplied, and its two outlets are set 180 degrees apart. The end of the threaded shank takes 8mm supply tubing with a compression nut. Gas supply pressure should be between 1.5 kPa and 5 kPa.
Frequently Asked Questions
Q1. Which gases can it be used with? The brass plug cocks use a grease suitable for natural gas and LPG.
