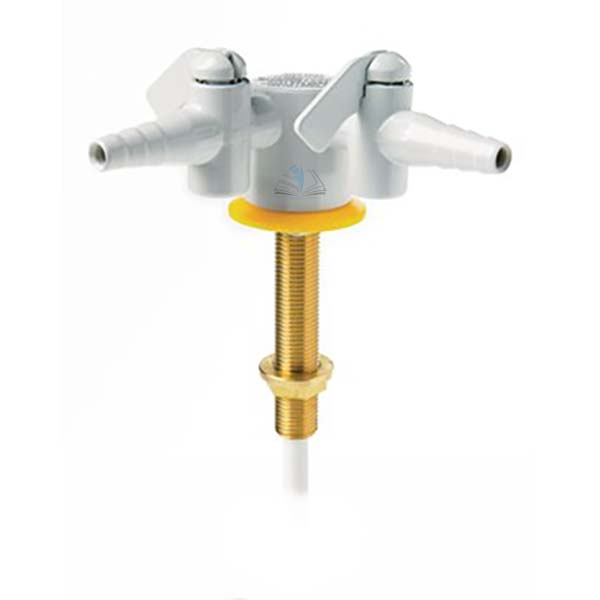

Drop Lever Gas Tap - Two way 90 degrees - Bench Mounted
Product Code : EL-T-10388
Quick Answer: The Drop Lever Gas Tap - Two way 90 degrees - Bench Mounted is a bench-mounted, two-way 90° gas tap with brass plug cocks and drop levers that show clearly whether it is on or off.
Last updated: October 2026
Key Features
Two-way 90° layout
Drop levers for clear on/off indication
Serrated outlet nozzles take 8 mm to 13 mm ID rubber hose
1/4" BSP threaded shank, 65 mm long
39mm flange diameter
Technical Specifications
Specification
Value
Outlet connections
Fixed serrated nozzles, 8 mm to 13 mm ID rubber hose
Inlet connection
1/4" BSP male threaded shank, 65 mm long
Construction
Brass plug cocks, grease suitable for Natural Gas and LPG
Flange diameter
39mm
Supply pressure
1.5 kPa to 5 kPa
About This Product
All fittings for mounting on a bench or another horizontal surface come with the tap. Below the bench, the shank connects to 8mm tubing with a compression nut. Rubber hoses push onto the serrated nozzles, and the installed supply pressure should sit in the 1.5 kPa to 5 kPa range.
