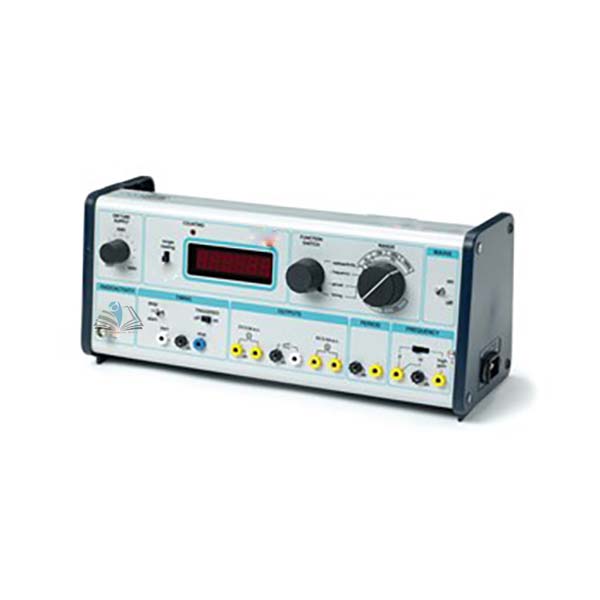

S-Range Digicounter
Product Code : EL-AS-10835
Quick Answer: S-Range Digicounter is a versatile counter for timing, frequency, period and radioactivity measurement, with a high stability crystal controlled oscillator giving a typical accuracy of 0.005% on all ranges.
Last updated: October 2026
Key Features
- Timing, frequency, period and radioactivity measurement
- High stability crystal controlled oscillator, typical accuracy 0.005%
- G.M. tube input via E.H.T. BNC connector, supply adjustable from 300 to 500 V
- Counting times of 1, 10, 100 or 1000 seconds and infinity, single or continuous readings
- Triggered timing of trolley speeds using a single light gate
- 2 V and 6 V a.c. at 0.5 A output for a light gate or similar
Technical Specifications
| Specification | Value |
|---|---|
| Timing ranges | 0 to 99.9999 x 0.1 ms; 0 to 999.999 x 1 ms; 0 to 9999.99 x 0.01 s; 0 to 99999.9 x 0.1 s |
| Accuracy | Better than 0.005% ±1 count |
| Radioactivity counting time | 1, 10, 100 or 1000 s and infinity |
| G.M. supply voltage | 300 to 500 V |
| High frequency input | 30 Hz to 3 MHz minimum (5 MHz typical) |
| High gain input | 0.8 mV r.m.s., 30 Hz to 20 kHz |
| Low frequency input | d.c. to 3 MHz minimum (5 MHz typical) |
| Period timing intervals | 0.1, 1, 10 and 100 ms |
About This Product
Period measurement lets very low frequencies be measured rapidly and accurately. In radioactivity mode each reading is displayed for 3 seconds before the next is taken, and the rate is found by dividing the count by the counting time; shorting the period input gives infinite radioactivity or frequency counts. Gating is by the front panel stop/start switch, make or break input sockets, or triggering inputs, and the speaker output feeds a speaker of any impedance. Export supply of the S-Range Digicounter can be arranged to laboratories and schools in Georgia, Sudan, Gabon, Cambodia, Lithuania and Saudi Arabia.
Frequently Asked Questions
Q1. Which counting times are available for radioactivity?
1, 10, 100 or 1000 seconds and infinity, as a single reading or a continuous series, each displayed for 3 seconds.
Q2. What signal does the high gain input need?
It needs 0.8 mV r.m.s. from 30 Hz to 20 kHz, and a high impedance dynamic microphone is recommended.
Related: Atomic Structure, GM Probe Radioactive SensorMeter, Geigerteller.
For a quotation on the S-Range Digicounter, contact School Equipments India.
