Tel-X-Ometer
Product Code : EL-AS-10830

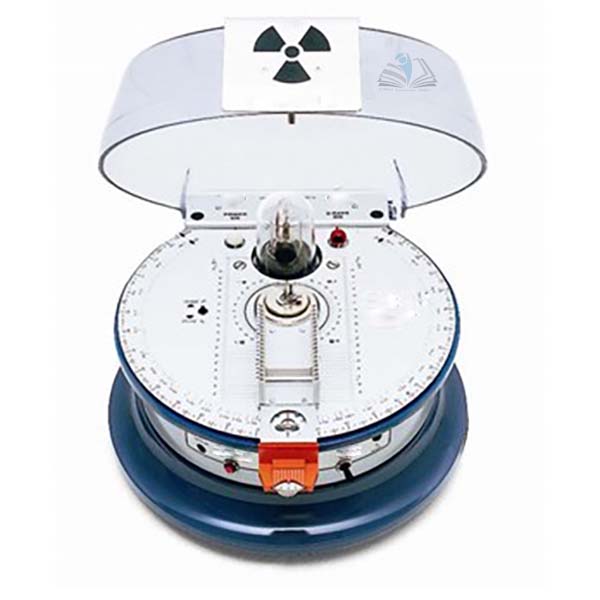

Quick Answer: Tel-X-Ometer is an X-ray spectrometer that enables X-ray investigations in the normal school laboratory, using a miniature copper-anode X-ray tube enclosed in a thick-walled lead glass dome.
Last updated: October 2026
Key Features
- Radiation level at 50 mm from any surface does not exceed 0.5 mR per hour
- Adapts for a broad X-ray beam, single crystal Bragg diffractometry, Debye/Scherrer powder camera work and Moseley fluorescence studies
- X-ray tube protrudes through the cast aluminium base inside a thick-walled lead glass dome
- Supplied with the X-ray tube installed and aligned
- Warning card supplied for the door of the room used for experiments
- Instruction book with set-up details, notes for twenty-five experiments and teacher's notes
Technical Specifications
| Specification | Value |
|---|---|
| Anode voltage | 20/30 kV selectable, electronic stabilisation |
| Emitter current | 0-80 µA, continuously adjustable |
| Anode material | Copper |
| Characteristic radiation | Cu-Ka 154 pm, Cu-Kß 138 pm |
| Focal point | 5 mm x 1 mm |
| Collimator | Leaded glass, 5 mm diameter |
| Beam divergence | Better than 10° |
| Bragg angle accuracy | 5 minutes of arc |
| Timer | 0 to 60 minutes, continuously adjustable |
| Power consumption | 100 VA |
| Overall size | Height 250 mm, diameter 370 mm |
| Mass | 9 kg |
About This Product
Through simple adaptations the instrument provides a broad beam for studying the general properties of X-rays, a single crystal Bragg diffractometer, a powder camera for Debye/Scherrer experiments and a fluorescent radiation emitter for the Moseley theory. The counter tube goniometer pivots from +10° to +130° and -10° to -130° relative to the beam axis, with angle coupling independent of the sample holder or in a 2:1 ratio. The notes for twenty-five experiments use the accessory set, which is available separately. Besides buyers across India, the Tel-X-Ometer can be exported to institutions in Zambia, Kyrgyzstan, Uruguay, Fiji and Suriname.
Frequently Asked Questions
Q1. How is radiation kept low?
Safety precautions are built into the apparatus, and the radiation level at 50 mm from any part of the surface does not exceed 0.5 mR per hour. The X-ray tube sits inside a thick-walled lead glass dome.
Q2. What accuracy do the diffraction set-ups give?
The single crystal Bragg diffractometer has a scale accuracy of 5 minutes of arc, and the powder camera for Debye/Scherrer experiments works to 30 minutes of arc.
Related: Atomic Structure, GM Probe Radioactive SensorMeter, Cloud Chamber.
For a quotation on the Tel-X-Ometer, contact School Equipments India.
