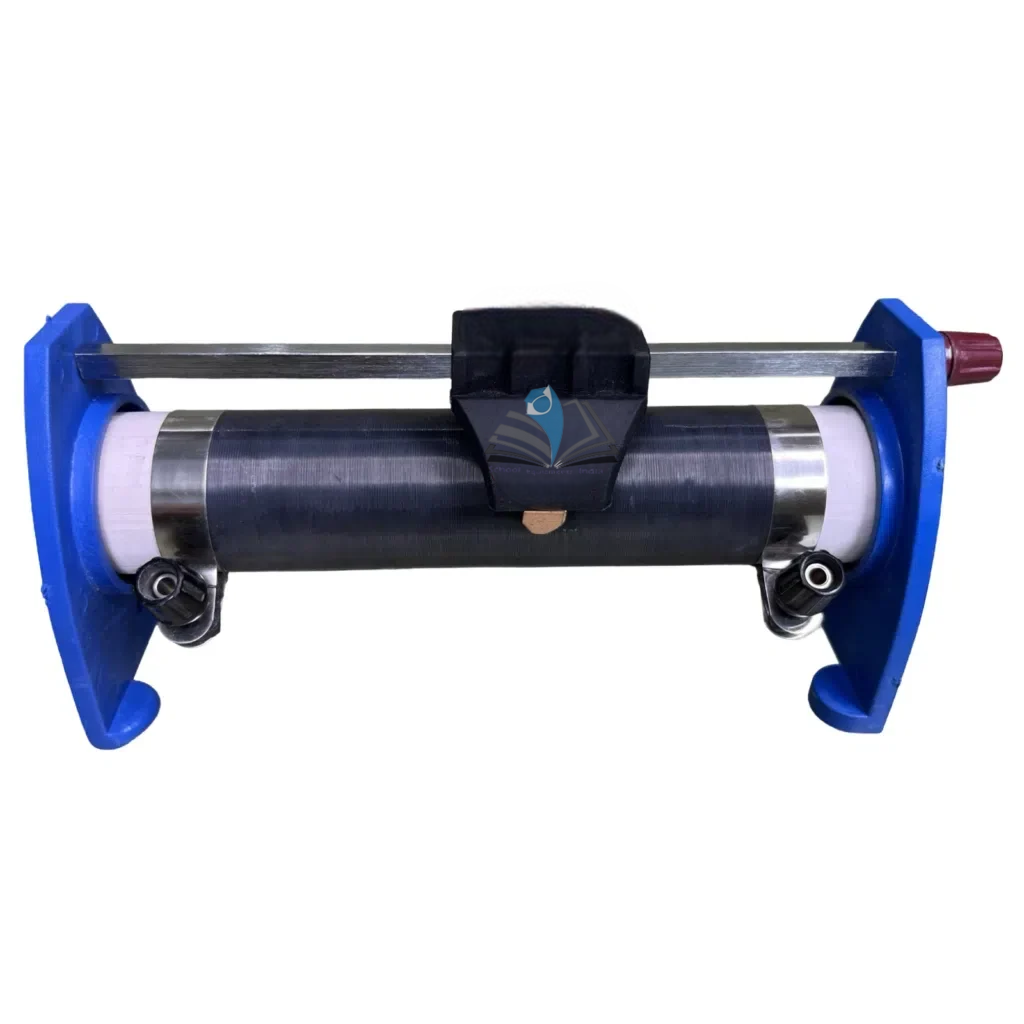

Electrical Circuit Training Rheostat Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12718

The Electrical Circuit Training Rheostat is a variable-resistance physics laboratory apparatus used to control current in low-voltage circuits for Ohm’s law, resistance variation, voltage-drop study, current control, and practical electricity training. It is suitable for schools, colleges, physics labs, STEM classrooms, distributors, and institutional procurement teams.

Product Description

Electrical Circuit Training Rheostat from School Equipments India is intended for supervised physics and electrical laboratory experiments. A rheostat works as an adjustable resistor in a circuit, allowing learners to vary resistance and observe the resulting change in current. Exact resistance range, current rating, power rating, winding material, tube length, slider type, terminals, dimensions, and calibration status must be confirmed from the final supplied product.

This apparatus helps students connect circuit theory with measurable electrical behaviour. It supports practical lessons in Ohm’s law, variable resistance, series circuits, voltage-current relationships, current limiting, and safe circuit adjustment. It should not be described as a precision calibration instrument unless valid calibration documentation is supplied.

Key Features

• Variable-resistance apparatus: used to change circuit resistance during supervised electricity practicals.
• Current-control support: helps students observe how current changes when resistance is adjusted.
• Ohm’s law teaching aid: suitable for voltage, current, and resistance relationship demonstrations.
• Hands-on circuit training: useful for wiring practice, meter reading, and controlled laboratory observation.
• Low-voltage lab use: intended for school and college physics circuits under teacher supervision.
• Construction to confirm: sliding contact, coil winding, tube, base, and terminal design must be verified.
• Rating to confirm: resistance range, current limit, power rating, and tolerance should be checked before procurement.

Technical Specifications

What's Included in the Kit

• Electrical Circuit Training Rheostat
• Sliding contact or resistance adjustment mechanism
• Input and output terminals
• Product label with range and rating details
• Instruction sheet, test report, or calibration certificate

Applications / Uses

• Controlling current in school and college physics circuits
• Verifying Ohm’s law using voltage and current readings
• Demonstrating how variable resistance affects current flow
• Studying voltage drop across circuit components
• Supporting series-circuit, resistance-wire, and current-limiting practicals
• Supplying physics laboratory apparatus for institutional tenders

How to Use the Electrical Circuit Training Rheostat

1. Check the product label, resistance range, rating, terminals, and experiment instructions before use.
2. Keep the power supply switched off while making circuit connections.
3. Connect the rheostat in the required circuit position using suitable laboratory leads.
4. Set the slider or control to the safe starting position recommended by the teacher.
5. Switch on only the approved low-voltage laboratory supply.
6. Move the slider gradually and observe ammeter and voltmeter readings.
7. Record values at different resistance settings without exceeding the confirmed rating.
8. Switch off the supply before disconnecting, repositioning, or storing the apparatus.

Safety note: Use only under teacher or laboratory-supervisor control. Do not overload the rheostat, connect it directly to mains voltage, touch terminals during live experiments, or continue use if heating, sparking, or unstable readings occur.

Care & Maintenance

• Store in a dry, dust-free cabinet after practical sessions.
• Keep slider contacts, terminals, and connection points clean and corrosion-free.
• Do not exceed the confirmed current, voltage, or power rating.
• Quarantine the apparatus if the slider is loose, winding is damaged, terminals overheat, or readings become unstable.

Why Choose School Equipments India

School Equipments India manufactures and exports scientific laboratory instruments, school laboratory equipment, science kits, mathematics kits, didactic models, and STEM models. The brand supports schools, colleges, universities, distributors, and institutional tender buyers with practical science teaching aids. For electrical training apparatus, buyers should confirm resistance range, current rating, construction, operating limits, documentation, and packaging before procurement.

Frequently Asked Questions

What is an Electrical Circuit Training Rheostat used for?

An Electrical Circuit Training Rheostat is used to vary resistance and control current in low-voltage physics lab circuits for Ohm’s law and electricity experiments.

Is a rheostat the same as a variable resistor?

A rheostat is a type of variable resistor used for current control in a circuit. It is commonly used in educational circuit demonstrations.

Can it be used for Ohm’s law experiments?

Yes. A rheostat can be used in Ohm’s law experiments to vary resistance and observe corresponding changes in current and voltage readings.

What is the resistance range?

The resistance range is not confirmed. Add the exact ohm range, current rating, and power rating only after checking the final supplied product label.

Is it suitable for school physics laboratories?

Yes. It is suitable for supervised school and college physics laboratories when used with approved low-voltage supplies and teacher guidance.

Does it include calibration documentation?

Calibration documentation is not confirmed. Do not claim a calibration certificate, test report, or accuracy class unless supplied with the final product.
