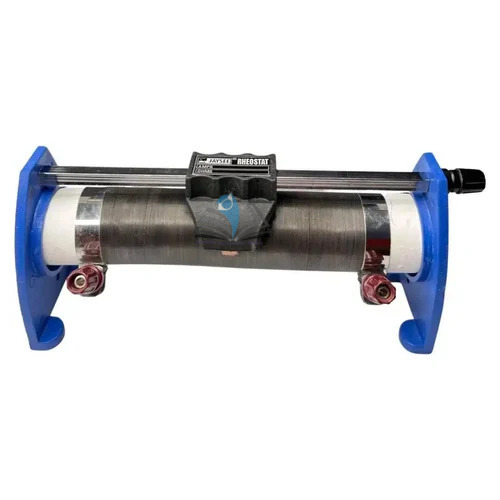

Electrical Engineering Training Rheostat Manufacturer,Supplier and Exporter in India

Product Code : SCL-EE-12722

The Electrical Engineering Training Rheostat is a variable-resistance laboratory apparatus used to control current in low-voltage electrical circuits for Ohm’s law, resistance variation, voltage-drop study, current limiting, and circuit-training experiments. It is suitable for schools, colleges, engineering labs, physics labs, STEM classrooms, distributors, and institutional procurement teams.

Product Description

Electrical Engineering Training Rheostat from School Equipments India is intended for supervised physics and electrical engineering practicals. A rheostat works as an adjustable resistor in a circuit, allowing students to change resistance and observe the resulting change in current and voltage readings. Exact resistance range, current rating, power rating, winding material, slider mechanism, terminal type, tube length, dimensions, and calibration status must be confirmed from the final supplied product.

This apparatus helps learners connect circuit diagrams with practical electrical behaviour. It supports hands-on work in Ohm’s law, variable resistance, series circuits, voltage-current relationships, current control, load adjustment, and safe circuit training. It should not be described as a precision calibration instrument unless valid calibration documentation is supplied.

Key Features

• Variable-resistance training aid: used to adjust resistance during supervised electrical and physics practicals.
• Current-control function: helps students observe how current changes when resistance is increased or decreased.
• Ohm’s law support: suitable for demonstrations involving voltage, current, resistance, and meter readings.
• Electrical engineering practice: useful for wiring, circuit setup, data recording, and controlled load adjustment.
• Low-voltage laboratory use: intended for school, college, and basic engineering training circuits under supervision.
• Construction to confirm: slider, winding, tube, base, terminals, insulation, and contact design must be verified.
• Ratings to confirm: resistance range, current limit, power rating, and tolerance should be checked before procurement.

Technical Specifications

What's Included in the Kit

• Electrical Engineering Training Rheostat
• Sliding contact or resistance adjustment mechanism
• Input and output terminals
• Product label with resistance range and rating details
• Instruction sheet, test report, or calibration certificate

Applications / Uses

• Controlling current in school, college, and engineering training circuits
• Verifying Ohm’s law using voltage and current measurements
• Demonstrating how variable resistance affects current flow
• Studying voltage drop across circuit components
• Supporting series-circuit, current-limiting, and load-adjustment practicals
• Supplying physics and electrical engineering laboratory apparatus for institutional tenders

How to Use the Electrical Engineering Training Rheostat

1. Check the product label, resistance range, current rating, terminals, and experiment instructions before use.
2. Keep the power supply switched off while making circuit connections.
3. Connect the rheostat in the required circuit position using suitable laboratory leads.
4. Set the slider or control to the safe starting position recommended by the teacher.
5. Switch on only the approved low-voltage laboratory power supply.
6. Move the slider gradually and observe ammeter and voltmeter readings.
7. Record readings at different resistance settings without exceeding the confirmed rating.
8. Switch off the supply before disconnecting, repositioning, or storing the apparatus.

Safety note: Use only under teacher or laboratory-supervisor control. Do not overload the rheostat, connect it directly to mains voltage, touch terminals during live experiments, or continue use if heating, sparking, burning smell, or unstable readings occur.

Care & Maintenance

• Store in a dry, dust-free cabinet after practical sessions.
• Keep slider contacts, terminals, tube surface, and connection points clean and corrosion-free.
• Do not exceed the confirmed current, voltage, or power rating.
• Quarantine the apparatus if the slider is loose, winding is damaged, terminals overheat, or readings become unstable.

Why Choose School Equipments India

School Equipments India manufactures and exports scientific laboratory instruments, school laboratory equipment, science kits, mathematics kits, didactic models, and STEM models. The brand supports schools, colleges, universities, distributors, and institutional tender buyers with practical science and engineering teaching aids. For electrical engineering training apparatus, buyers should confirm resistance range, current rating, construction, operating limits, documentation, and packaging before procurement.

Frequently Asked Questions

What is an Electrical Engineering Training Rheostat used for?

An Electrical Engineering Training Rheostat is used to vary resistance and control current in low-voltage electrical circuits for Ohm’s law, voltage-drop, and circuit-training experiments.

Is a rheostat a variable resistor?

Yes. A rheostat is a variable resistor used to control current by changing resistance in a circuit.

Can it be used for Ohm’s law experiments?

Yes. A rheostat can be used in Ohm’s law experiments to vary resistance and observe changes in current and voltage readings.

What is the resistance range?

The resistance range is not confirmed. Add the exact ohm range, current rating, and power rating only after checking the final supplied product label.

Is it suitable for engineering laboratories?

Yes. It is suitable for supervised school, college, and basic electrical engineering laboratories when used with approved low-voltage supplies and correct ratings.

Does it include calibration documentation?

Calibration documentation is not confirmed. Do not claim a calibration certificate, test report, or accuracy class unless supplied with the final product.
