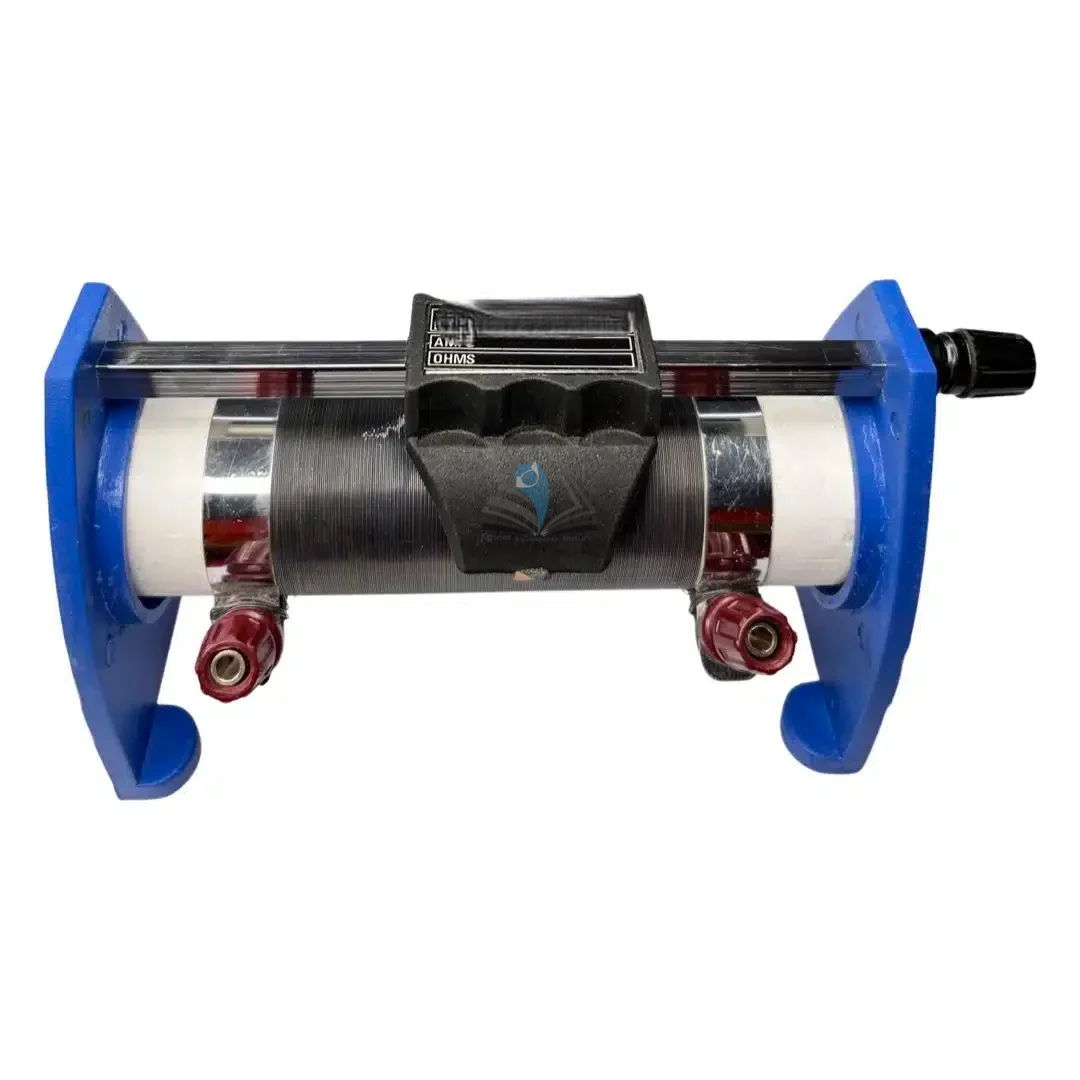

Educational 6 Inch Sliding Rheostat
.png)
Product Code : SCL-EE-12723
Quick Answer: The Educational 6 Inch Sliding Rheostat is a compact variable resistor for low-voltage school and college circuits. Moving its slider changes the resistance, letting students control current and study Ohm's law.
Last updated: October 2026
Key Features
- 6-inch format that fits easily on a school physics bench
- Sliding contact gives smooth adjustment of resistance
- Input and output terminals for connection with laboratory leads
- Label shows the resistance range and rating
- Used for current limiting, voltage-drop and series-circuit practicals
Technical Specifications
| Specification | Value |
|---|---|
| Nominal size | 6 inch |
| Adjustment | Sliding contact |
| Connections | Input and output terminals |
| Function | Variable resistance and current control in low-voltage educational circuits |
About This Product
In an Ohm's law practical the rheostat is wired into the circuit with the supply off and the slider set to a safe starting point. Once the low-voltage supply is on, students move the slider gradually and note the ammeter and voltmeter readings at each position. It is not meant for mains voltage or for use beyond its labelled rating.
Frequently Asked Questions
Q1. How does the rheostat change the current?
Sliding the contact along the resistance changes how much resistance is in the circuit. More resistance lowers the current and less resistance raises it, which students read on an ammeter.
Related: Electricity & Electromagnetism, Laboratory Variable Resistor 10 Inch, Electrical Circuit Training Rheostat.
For a quotation on the Educational 6 Inch Sliding Rheostat, contact School Equipments India.
