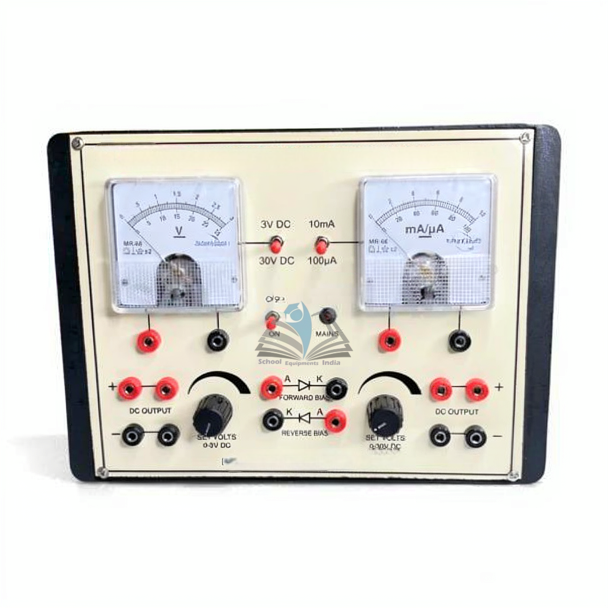

Quick Answer: The PN Junction Diode Apparatus Two Meter is used to study the V-I characteristics of a PN junction diode, with a two-meter arrangement for observing voltage and current together.
Last updated: October 2026
Key Features
Two-meter arrangement for simultaneous voltage and current readings
Forward-bias and reverse-bias diode experiments
Supports plotting of V-I characteristic curves
Introduces threshold voltage, leakage current and rectification
About This Product
Students identify the voltage meter, current meter, diode terminals and bias controls, wire the circuit to the experiment diagram and start from the minimum setting of the low-voltage supply. Raising the voltage gradually and recording both meters, then repeating in reverse bias if the apparatus supports it, gives the data for a V-I graph showing the diode's conduction region.
Frequently Asked Questions
Q1. Why does the apparatus use two meters? The two-meter arrangement lets students read the applied voltage and the diode current at the same time while plotting the V-I characteristic.
