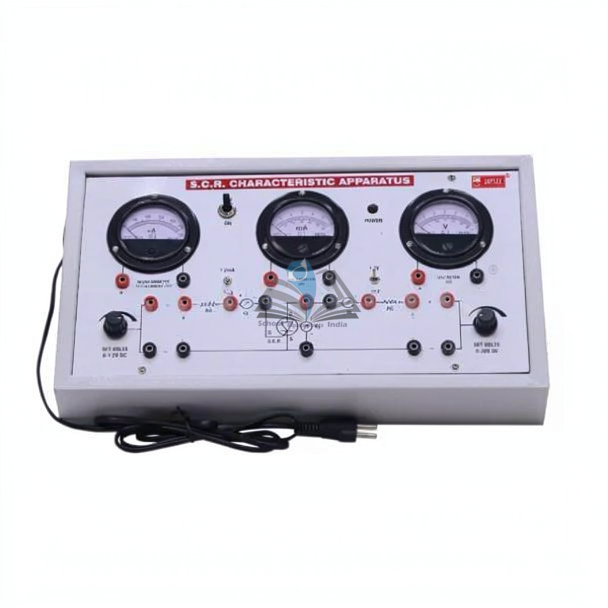

SCR Characteristics Apparatus

Product Code : SCL-EE-12437

Quick Answer: The SCR Characteristics Apparatus is a power electronics trainer for plotting the V-I characteristics of a silicon controlled rectifier and studying gate triggering, latching current and holding current.

Last updated: October 2026

Key Features

Plots SCR V-I characteristics
Demonstrates forward blocking, forward conduction and gate triggering
Supports teaching of latching current and holding current
Relates anode current, anode-cathode voltage and gate current

About This Product

With the anode supply and gate control set to their lowest safe values, students raise the gate signal gradually and record anode voltage, anode current and gate current. Plotting the readings shows SCR triggering and gives a practical introduction to thyristor action and controlled switching in power electronics lessons. The SCR Characteristics Apparatus is available for supply within India and for export to Syria, Bulgaria, Serbia, Côte d'Ivoire and Mauritania.

For a quotation on the SCR Characteristics Apparatus, contact School Equipments India.
