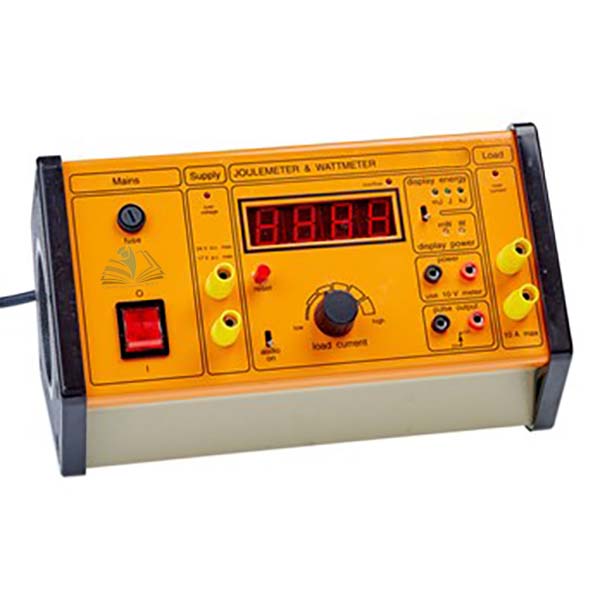

Joulemeter and Wattmeter
Product Code : EL-E-11019
Quick Answer: The Joulemeter and Wattmeter measures either the cumulative electrical energy delivered to a load or the instantaneous power, on a 4-digit LED display with 6 switch-selectable ranges.
Last updated: October 2026
Key Features
- Measures cumulative energy delivered or instantaneous power
- 4-digit, 20 mm high LED display with automatic decimal point
- 6 switch-selectable ranges with internal shunts
- Switchable bleep and a 25 ms TTL pulse for each count, via 4 mm sockets
- 0-10 V power output for data-logging
- Input up to 24 V d.c. or 17 V rms a.c., d.c. to 10 kHz
Technical Specifications
| Specification | Value |
|---|---|
| Energy range | 0.1 mJ to 100 J per count, 6 decades |
| Power range | 0.001 mW to 100 W, 6 ranges |
| Input | 24 V d.c. max or 17 V rms a.c. max, d.c. to 10 kHz |
| Accuracy | 5% of F.S.D., typically 2% |
| Display | 4-digit, 20 mm LED |
| Power supply | Mains, 1.8 m 3-core cable |
| Dimensions | 240 mm x 160 mm x 160 mm |
| Mass | 2.1 kg |
About This Product
Experiments range from simple investigations into specific heat capacity to measuring the energy stored in LCR circuits. When measuring energy, an audible bleep, which can be switched off, marks each increment of the least significant digit, and a TTL pulse goes to the 4 mm sockets for external counters. When measuring power, a voltage sensor across the 0-10 V output can be used for data-logging. An instruction manual of experiments is included. The Joulemeter and Wattmeter is available for supply within India and for export to Mozambique, Jordan, Oman, Malaysia, Bahamas and Paraguay.
Frequently Asked Questions
Q1. Can the readings be data-logged?
Yes. When measuring power, a voltage sensor across the 0-10 V 4 mm socket output can be used for data-logging, and energy counts are output as TTL pulses for external counters.
Related: Energy, Immersion Heater 12V 50W, Block Calorimeter - Aluminium.
For a quotation on the Joulemeter and Wattmeter, contact School Equipments India.
