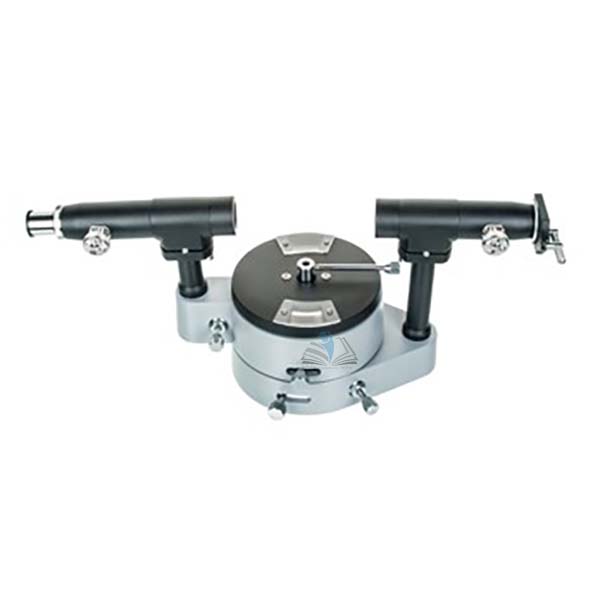

Spectrometer - Intermediate
Product Code : EL-W-11154
Quick Answer: The Spectrometer - Intermediate has a fixed 150 mm scale circle read to 30 seconds of arc by double ended verniers, independent table and telescope movements, and a 178 mm focus achromatic collimator and telescope.
Last updated: October 2026
Key Features
- Fixed 150 mm diameter scale circle, read to 30 sec. of arc by double ended verniers
- Independent table and telescope movements with fine adjustment and clamping screws
- Collimator with 178 mm focus achromatic objective, 28 mm clear aperture and 7 mm unilaterally adjustable slit
- Telescope with x10 Ramsden eyepiece and glass cross line graticule
- Rack and pinion focusing on both telescope and collimator
- Prism table with interchangeable clamping units for a prism or a diffraction grating
Technical Specifications
| Specification | Value |
|---|---|
| Scale circle | 150 mm diameter, fixed |
| Vernier reading | 30 sec. of arc |
| Collimator objective | 178mm focus achromatic, 28mm clear aperture |
| Slit | 7mm long, unilaterally adjustable |
| Telescope objective | 178mm focus achromatic, 28mm clear aperture |
| Telescope eyepiece | x10 Ramsden |
About This Product
Light from a source such as a spectrum lamp passes through the collimator to a prism or diffraction grating on the table, and the telescope position is read from the verniers to measure the angles of the spectrum. Lines on the table help position the prism relative to the levelling screws. The supplied accessories are a diffraction grating holder, hand magnifier, prism clamp, tommy bar for adjusting the optical axes and a plywood case, with setting up instructions. Export supply of the Spectrometer - Intermediate can be arranged to laboratories and schools in Poland, Samoa, Lebanon, Guinea-Bissau and Liberia.
Frequently Asked Questions
Q1. Is a prism included?
No. A prism clamp and diffraction grating holder are supplied, but the spectrometer prism is available separately.
Related: Waves, Spectroscope, Spectrum Tube - Argon.
For a quotation on the Spectrometer - Intermediate, contact School Equipments India.
