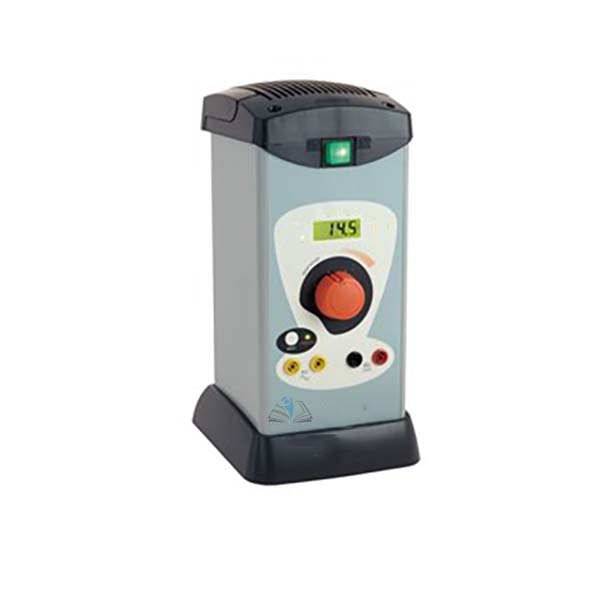

College Power Unit
Product Code : EL-PS-10367
Quick Answer: The College Power Unit supplies 0 - 25V ac or dc at up to 8A, adjusted by a rotary control, with an illuminated digital display of voltage or current.
Last updated: October 2026
Key Features
- Output continuously variable up to 25V
- Continuously rated 8A, ac or dc
- LCD shows voltage or current for the ac or dc output
- Two membrane switches with LED indicators select the reading
- Overload LED turns from green to red
- Triple protection with resettable electronic trip
Technical Specifications
| Specification | Value |
|---|---|
| Output | ac and dc, 0-25V, variable |
| Maximum current | 8A combined |
| Fuse | 2A time delay |
| Internal fuse | 50mA time delay |
| Ratings | 230V ac 50Hz 363VA |
| Temperature range | 10 - 40°C |
| Dimensions | 175 x 190 x 341mm (W x D x H) |
| Mass | 5.9kg |
About This Product
This supply is meant for students in advanced courses where the voltage or current needs to be monitored accurately. The display can be switched between current and voltage, for either output, so readings can be taken without a separate meter. Both outputs can be used at once within the 8A limit. A snap-up handle makes it easy to carry with one hand.
Frequently Asked Questions
Q1. What can the digital display show?
It shows current (I) or voltage (V) for either the ac or the dc output, chosen with the two membrane switches.
