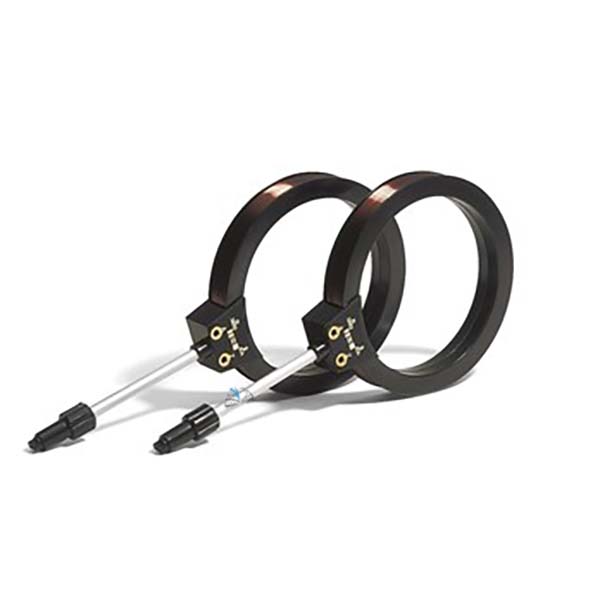

Helmholtz Coils
Product Code : EL-AS-10809
Quick Answer: Helmholtz Coils are a pair of coils generating a uniform magnetic field perpendicular to the axis of D series tubes, with 320 turns and a maximum field strength of approximately 10 mT.
Last updated: October 2026
Key Features
- Pair of coils for a uniform magnetic field perpendicular to the tube axis
- 320 turns
- Maximum field strength approx. 10 mT
- Maximum continuous current 1.0 A
- Tube Holder D allows Helmholtz geometry, or fields aligned vertically or coaxial with the tube axis
- 4 mm sockets; requires a 20 V power supply and 4 mm leads
Technical Specifications
| Specification | Value |
|---|---|
| Number of turns | 320 |
| Maximum field strength | Approx. 10 mT |
| Maximum continuous current | 1.0 A |
| Maximum momentary current | 10 min @ 1.5 A; 3 min @ 2 A |
| Connectors | 4 mm sockets |
| Power requirement | 20 V power supply |
About This Product
Mounted with the Tube Holder D, the coils can be set in the Helmholtz geometry to give a uniform field across the tube, or arranged to produce fields aligned vertically or coaxial with the tube axis. The maximum field is approximately 10 mT, and the coils run from a 20 V power supply through 4 mm leads.
Frequently Asked Questions
Q1. Can the coils carry more than 1.0 A?
The maximum continuous current is 1.0 A. Momentary currents are rated at 1.5 A for 10 minutes or 2 A for 3 minutes.
Related: Atomic Structure, Teltron Tube - Deflection, Teltron Tube - Dual Fine Beam, Gas filled.
For a quotation on the Helmholtz Coils, contact School Equipments India.
