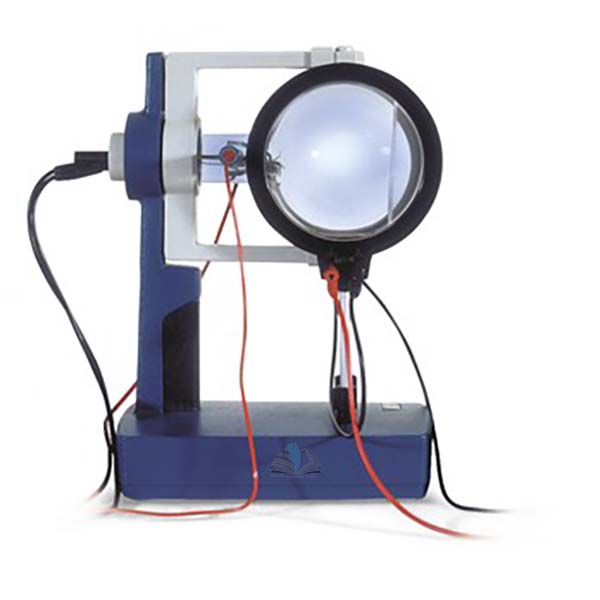

Teltron Tube - Dual Fine Beam, Gas filled Manufacturer,Supplier and Exporter in India
Product Code : EL-AS-10812
Product Description
For determining specific charge e/m from the diameter of the filament beam in the case of tangential bombardment and a perpendicularly aligned magnetic field, and observing spiral paths of electrons in the case of axial bombardment and a co-axial magnetic field.
Part evacuated electron tube, filled with neon at low pressure with a tangential and axial electron gun.
The electron paths are rendered visible in the form of fine luminescent beams through impact excitation of the neon atoms.
The tangential beam can be deflected by the use of Helmholtz Coils to produce a completely circular path permitting e/m measurements to be made.
The Dual Fine Beam tube is neon filled and electron beams may be observed throughout the full length of their travel within the tube, an orange glow being emitted during the gas/electron collisions.
The end of the body has a phosphor coated screen for use with the axial gun.
Clear free path studies may be made and phenomena such as screen blanking due to charge build up on the screen my be observed.
Within the tube are mounted two electron guns with indirectly hated cathodes, with one gun pointing along the axis of the tube, while the other is tangential to the axis, either gun being selected by a switch on the cylinder cap.
The angle of projection from the guns is adjustable by means of miniature deflection plates near the gun outlets, a small potential being applied via 4mm connections at the side of the cylindrical neck.
Technical Specifications:
Maximum anode current: 30 mA
Maximum deflection voltage: 50 V DC
Maximum filament voltage: 7.5 V AC/DC
Anode voltage: 120-300V DC
Dimensions:
Glass bulb: approx. 130 mm diameter
Total length: approx. 260 mm
Requires the following equipment to operate:
Universal Stand
Bench Power Supply - to power the filament
4mm Leads
Helmholtz Coils
College Power Supply Unit - to power the Helmholtz Coils
EHT Power Supply x 2 - 1 to power the Anode, 1 to power the deflector
EHT Experiment Leads (4 required)
Further
Information
|
Anode voltage |
120-300V DC |
|
Curriculum Link |
Atomic
Physics |
|
Maximum Anode Current |
30 mA |
|
Maximum Deflection
Voltage |
50 V DC |
|
Maximum Filament Voltage |
7.5V AC/DC |
|
Product Type |
Teltron
Tube |
