Vibration Generator with Accessory Kit
Product Code : EL-W-11174
Quick Answer: The Vibration Generator with Accessory Kit converts signals from an oscillator or A.F. amplifier into mechanical oscillations from D.C. to 10 kHz, with accessories for demonstrating standing waves and kinetic theory.
Last updated: October 2026
Key Features
- Frequency range from D.C. to 10 kHz
- Maximum peak-to-peak displacement of 8 mm at 1 Hz, decreasing as frequency increases
- Input through two 4 mm sockets; output shaft ends in a pair of clamping nuts
- Locking slider fixes the generator arm to prevent damage
- Works in any position, free standing or clamped

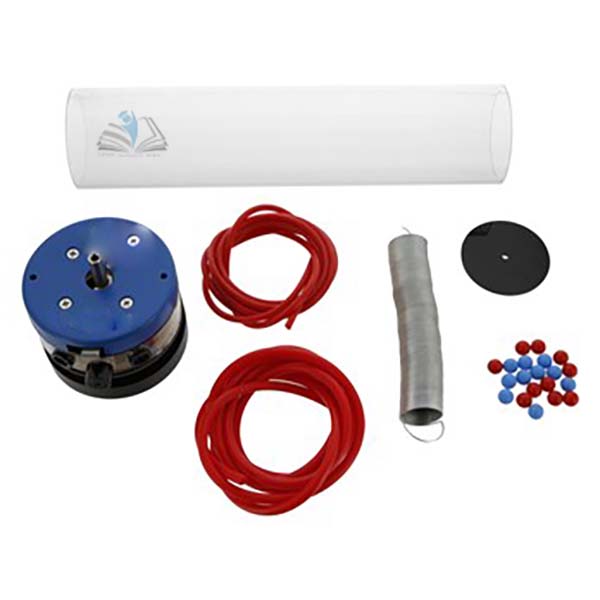

- Accessories: coil spring, thin and thick rubber cord, transparent tube, cable ties, Chladni plate, piano wire loop, steel strips, 20 coloured plastic balls
Technical Specifications
| Specification | Value |
|---|---|
| Frequency range | D.C. to 10 kHz |
| Max peak-to-peak displacement | 8 mm at 1 Hz |
| Coil impedance | 3.5 Ω at 50 Hz |
| Dimensions (WxDxH) | 100 x 90 x 95 mm |
| Electrical input | Two 4 mm sockets |
About This Product
Driven by a Power Signal Generator, or by a Bench Signal Generator with a Power Amplifier where a Power Signal Generator is not available, the generator works the accessories to show longitudinal, transverse and 2D standing waves. The transparent tube and 20 coloured plastic balls make a 3D kinetic theory model, the balls standing for molecules of a gas or liquid. Two 4 mm leads are required to connect the signal source. Besides buyers across India, the Vibration Generator with Accessory Kit can be exported to institutions in Chile, Palestine, Turkey, Brunei, Tajikistan and Brazil.
Frequently Asked Questions
Q1. What is needed to drive the Vibration Generator?
A Power Signal Generator and two 4 mm leads. Where a Power Signal Generator is not available, it can be driven by a Bench Signal Generator together with a Power Amplifier.
Q2. How does the displacement change with frequency?
The maximum peak-to-peak displacement is 8 mm at 1 Hz, and it decreases as the frequency increases.
